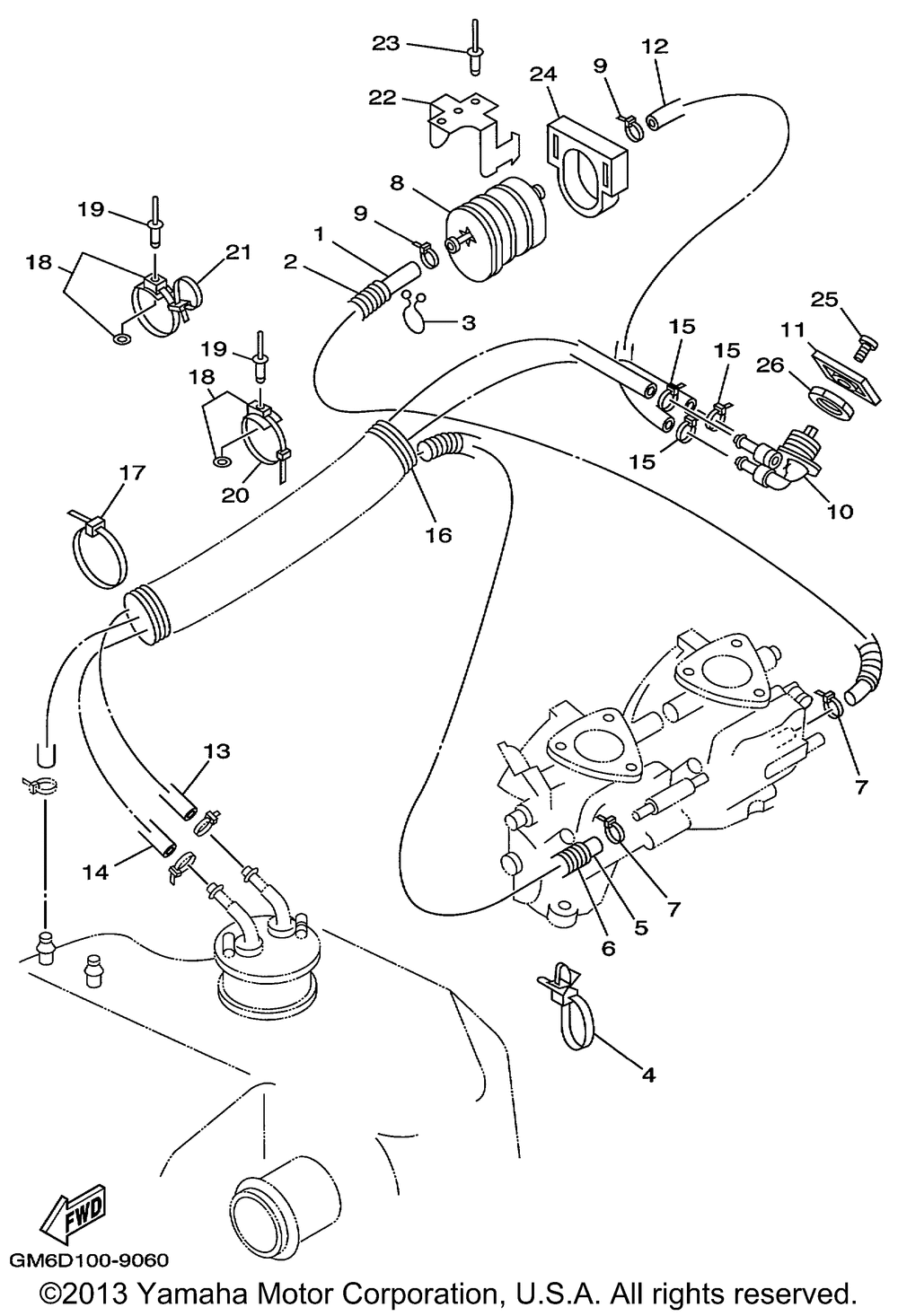

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | HOSE (L230) | 1 | |
| 2 | TUBE (L180) | 1 | |
| 3 | CLAMP | 1 | |
| 4 | CLAMP (62T) | 1 | |
| 5 | HOSE (L1220) | 1 | |
| 6 | HOSE (L560) | 1 | |
| 7 | CLAMP | 2 | |
| 8 | FILTER ASSY | 1 | |
| 10 | FUEL COCK ASY 1 | 1 | |
| 11 | LEVERCOCK | 1 | |
| 12 | HOSE (L1010) | 1 | |
| 13 | HOSE (L1010) | 1 | |
| 14 | HOSE (L140) | 1 | |
| 16 | TUBE 2 | 1 | |
| 17 | BAND | 1 | |
| 18 | CLAMP | 7 | |
| 19 | RIVETBLIND (5 per pack) | 7 | |
| 21 | BAND HOSE 50 | 2 | |
| 22 | BRACKETFUEL FLTER | 1 | |
| 24 | HOLDER FILTER | 1 | |
| 25 | SCREW BIND | 1 | |
| 26 | NUTHEXAGON | 1 |
