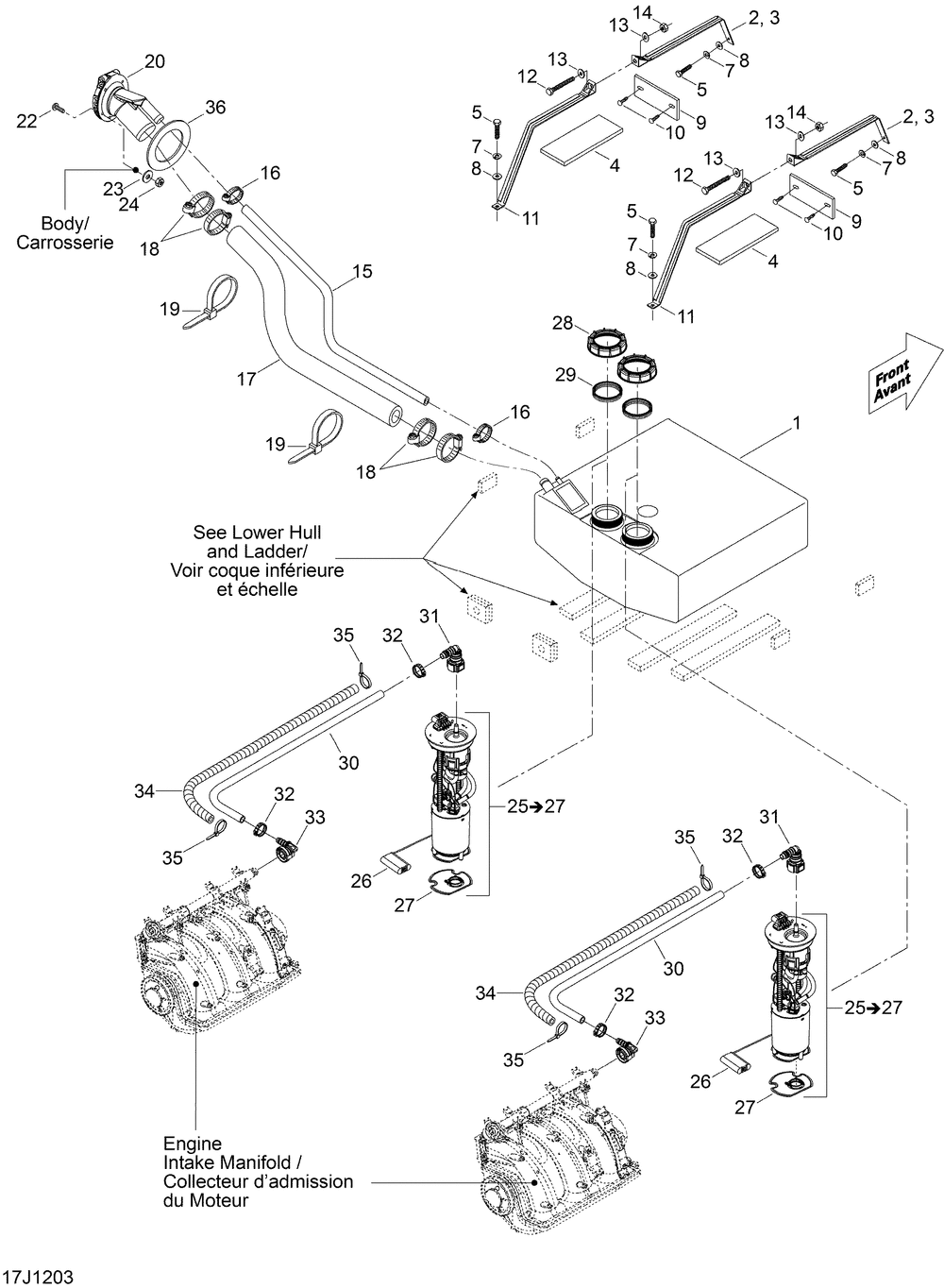

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FUEL TANK ASS Y | 1 | |
| 2 | FUEL TANK STRAP | 2 | |
| 3 | PROTECTOR PAD | 2 | |
| 4 | NEOPRENE PAD | 2 | |
| 5 | HEX. SCREW M8 X 30 Package XMR Engine 1000 (5.000 per pack) | 4 | |
| 7 | Lock Washer 8 mm, Stainless | 4 | |
| 8 | FLAT WASHER 8 MM STAINLESS (10.000 per pack) | 4 | |
| 9 | MUFFLER RUBBER PAD | 2 | |
| 10 | BLACK DART (5.000 per pack) | 4 | |
| 11 | FUEL TANK STRAP | 2 | |
| 12 | HEX. SCREW M8 X 80 (5.000 per pack) | 2 | |
| 14 | Hex. Elastic Nut M8 | 2 | |
| 15 | BOYAU 16MM. *HOSE-16MM. (3.000 per pack) | 0 | |
| 16 | NORMA CLAMP | 2 | |
| 17 | FILLER NECK HOSE | 0 | |
| 18 | NORMA CLAMP | 4 | |
| 19 | Tie-Rap 180 mm | 2 | |
| 20 | FILLER NECK | 1 | |
| 22 | PHILLIPS SCREW M4 X 35 | 4 | |
| 23 | Flat Washer 4 mm | 4 | |
| 24 | NUT-STOP ELASTIC DIN.985A2 (5.000 per pack) | 4 | |
| 25 | FUEL PUMP ASS Y Includes 21 to 23 | 2 | |
| 26 | SENSOR LEVER | 2 | |
| 27 | FUEL FILTER | 2 | |
| 28 | SPECIAL NUT M150 | 2 | |
| 29 | JOINT ETANCHE *GASKET | 2 | |
| 30 | HOSE-5/16" (2.000 per pack) | 0 | |
| 31 | QUICK ATTACH 90 | 1 | |
| 32 | NORMA CLAMP | 2 | |
| 33 | Elbow Fitting 90? | 1 | |
| 34 | SLIT CONDUIT METER (5.000 per pack) | 0 | |
| 35 | Tie-Rap 142 mm | 4 | |
| 36 | SPACER | 1 |
