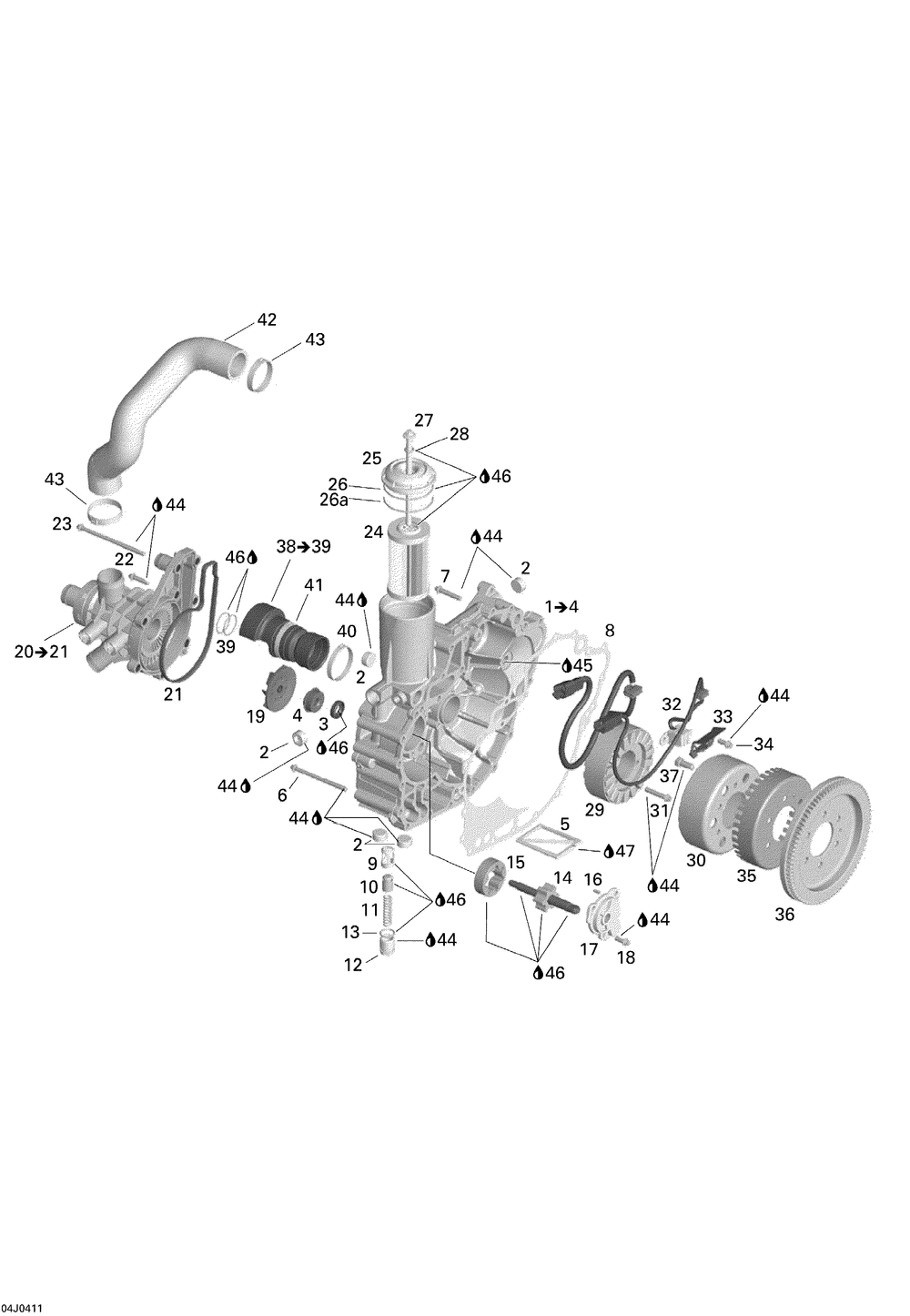

04- PTO Cover and Magneto

№	Наименование	Кол-во
1	TIMING DRIVE COVER Includes 1 to 4	1
2	PLUG SCREW M20 X 1.5	5
3	OIL SEAL	1
4	ROTARY SEAL	1
5	OIL SIEVE	1
6	FLANGED TORX SCREW M6 X 85	11
7	FLANGED TORX SCREW M6 X 35 Tightening Torque 9 Nm +/- 12% (5.000 per pack)	10
8	GASKET	1
9	VALVE SEAT SLEEVE	1
10	PISTON VALVE	1
11	COMPRESSION SPRING	1
12	PLUG SCREW M20 X 1.5	1
13	O-RING	1
14	PUMP SHAFT ASS Y	1
15	Oil Pump Rotor 16 mm	1
16	NEEDLE PIN	2
17	OIL PUMP COVER	1
18	FLANGED TORX SCREW M6 X 16 (5.000 per pack)	3
19	IMPELLER	1
20	WATER PUMP HOUSING ASS Y Includes items 20 to 21	1
21	JOINT ETANCHE *GASKET	1
22	FLANGED TORX SCREW M6 X 25 (5.000 per pack)	6
23	TORX FLANGED SCREW M6 X 105	2
24	Фильтр масляный	1
25	OIL FILTER COVER	1
26	O-Ring	1
26a	O-RING	1
27	HEX. SCREW M8 X 140.5	1
28	O-RING (5.000 per pack)	1
29	STATOR ASS Y	1
30	MAGNETO FLYWHEEL ASS Y	1
32	CRANKSHAFT SENSOR	1
33	RETAINING PLATE	1
35	TRIGGER WHEEL	1
36	STARTER GEAR 86 TEETH	1
37	SCREW KIT	1
38	BALL BEARING WITH BELLOWS ASS Y Includes 46 to 48	1
39	O-RING	2
40	GEAR CLAMP	1
41	GEAR CLAMP	1
42	FORMED HOSE	1
43	GEAR CLAMP	2
44	LOCTITE 243 10 ML	0
45	DOW CORNING 111*DOW CORNING 111	0
46	HUILE SEMI*OIL 4T 12X1 BLEND QUART (12.000 per pack)	0
47	LOCTITE 5910 300 ML	0
