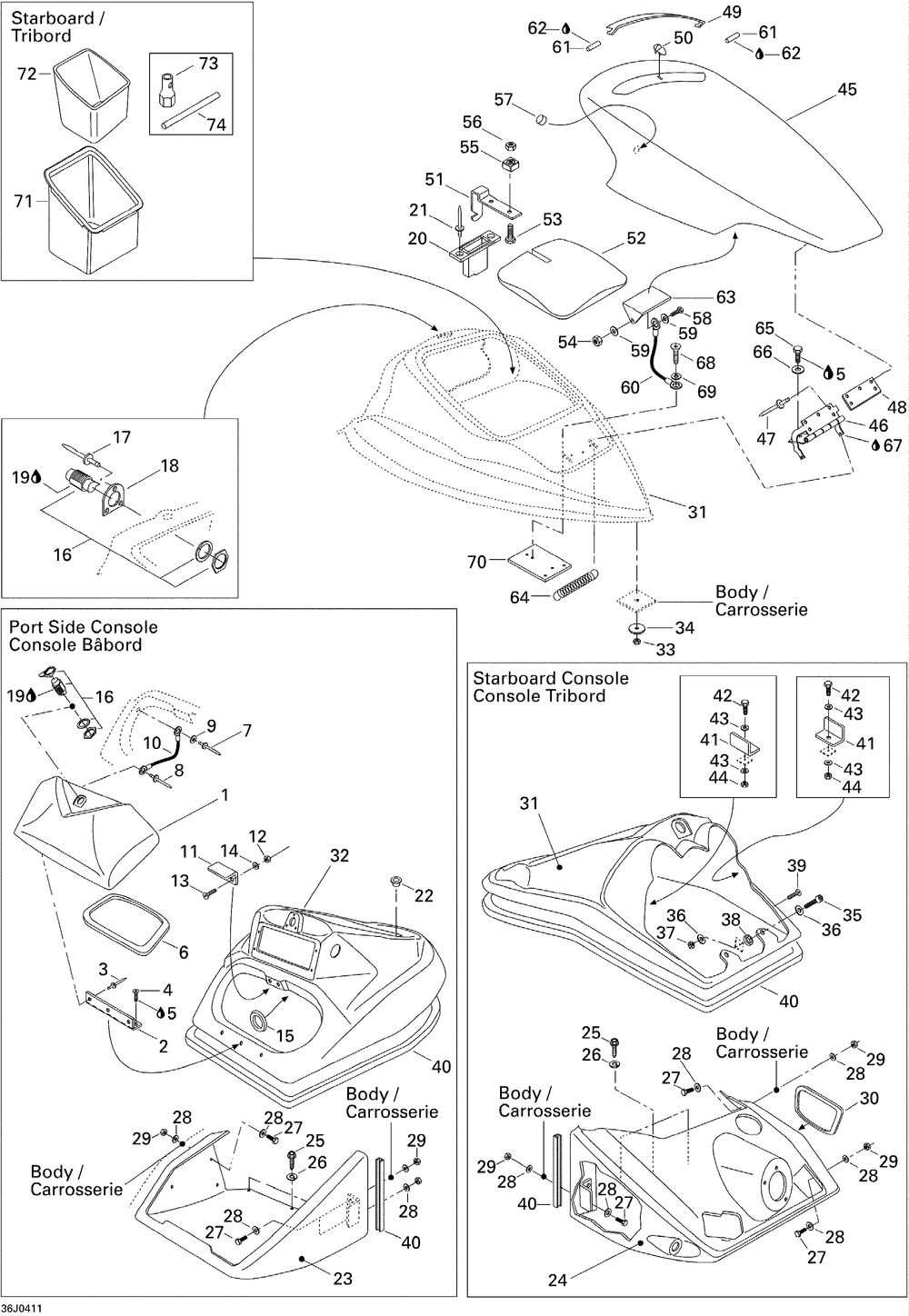

09- Front Console and Glove Box

SEA-DOO Speedster 200 Twin 4-TEC, 2nd Edition Speedster 200 Twin 4-TEC, 2nd Edition 09- Front Console and Glove Box

№	Наименование	Кол-во
1	GLOVE BOX TRAY	1
2	HINGE BLACK	1
3	POP RIVET 3/16"	3
4	PHILLIPS PAN HEAD SCREW M4 X 40 (5.000 per pack)	3
5	LOCTITE 243 10 ML	0
6	ANNEAU ETANCHE *SEAL-TRAY PAC=1.827M	0
7	POP RIVET 3/16" (10.000 per pack)	1
9	Flat Washer 5 mm, Stainless	1
10	RETAINER CABLE	1
11	KEEPER (5.000 per pack)	1
12	NUT-STOP ELASTIC DIN.985A2 (5.000 per pack)	2
13	PHILLIPS SCREW M4 X 16 (10.000 per pack)	2
14	Flat Washer 4 mm	2
15	SPLIT LOOM 3/8" METER	0
16	LATCH KIT 3 LATCHES	3
17	RIVET PLASTIQ.*RIVET-PLASTIC (10.000 per pack)	6
18	LATCH PLATE	2
19	LOCTITE 414 29.5 CC	0
20	LATCH GUIDE	2
22	DRAIN FITTING	1
25	SCREW-SELF DRILL(HEX WASHER HEAD) (10.000 per pack)	6
26	RONDELLE FREIN *WASHER-LOCK 1/4" (5.000 per pack)	6
27	HEX. SCREW M6 X 35 (10.000 per pack)	10
28	Flat Washer M6, Stainless	20
29	Hex. Elastic Stop Nut M6	10
30	SLIT CONDUIT METER (1000.00 per pack)	0
31	UPPER CONSOLE ASS Y STARBOARD	1
32	UPPER CONSOLE PORT SIDE	1
33	NUT-STOP ELASTIC 5/16-18 A2-SS (10.000 per pack)	2
35	HEX. SCREW M6 X 45 (5.000 per pack)	2
38	ALUMINUM SPACER	2
39	PHILLIPS TAPPING SCREW M4.2 X 32 (5.000 per pack)	1
40	WHITE RUBBER SEAL (3.000 per pack)	0
41	ANGLE BRACKET 90 MM	2
44	NUT-STOP ELASTIC MS-17830 (5.000 per pack)	2
45	PARE-BRISE *WINDSHIELD	2
46	HINGE ASS Y	2
47	POP RIVET 3/16" (5.000 per pack)	10
48	RETAINING PLATE	2
49	DEFLECTOR	2
50	REAR STOPPER	2
51	LATCH	2
52	FOAM WINDSCREEN	2
53	HEX. SCREW M6 X 12 (25.000 per pack)	4
54	HEX. ELASTIC NUT M5 (5.000 per pack)	2
55	NUT HOUSING	4
57	RUBBER STOPPER (10.000 per pack)	4
60	RETAINER CABLE	2
61	ROLLED PIN 1.5 X 10 MM (10.000 per pack)	4
62	GLUE TUBE LOCTITE 454 20 G	0
63	CABLE ATTACHEMENT	2
64	HINGE SPRING	2
65	HEX. SCREW M5 X 20 (5.000 per pack)	6
67	DIELECTRIC GREASE 150 G	0
68	PHILLIPS SCREW M6 X 25 (5.000 per pack)	2
70	WINDSCREEN INSERT	2
71	STORAGE TRAY	1
72	ICEBOX FOAM	1
