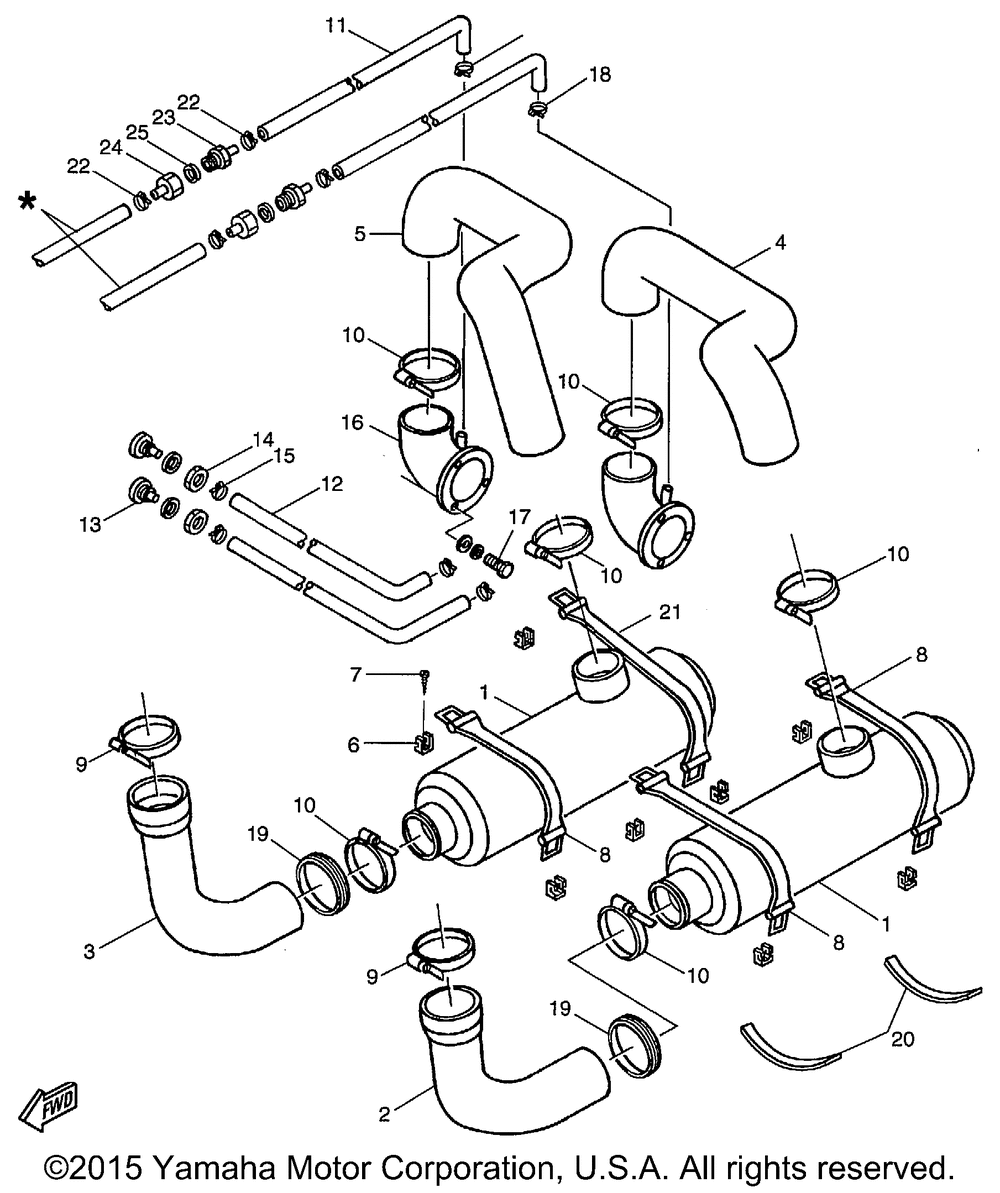

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | WATER LOCK COMP. YMUS | 1 | |
| 2 | HOSE EXHAUST B | 1 | |
| 3 | HOSE EXHAUST C | 1 | |
| 4 | HOSE EXHAUST D(9176) | 1 | |
| 5 | HOSE EXHAUST E(9177) | 1 | |
| 6 | HOOK A | 8 | |
| 7 | SCREW tahos_10 X 1/2" | 8 | |
| 8 | BANDBATTERY 2 | 3 | |
| 9 | HOSE CLAMP ASSY | 2 | |
| 10 | BAND HOSE 95 | 6 | |
| 11 | HOSE 3 | 2 | |
| 12 | HOSE (L1700) | 1 | |
| 13 | PILOT WATER | 2 | |
| 14 | NUT | 2 | |
| 15 | BAND HOSE 50 | 4 | |
| 16 | EXHAUSTTHRU-HULL | 2 | |
| 17 | BOLT | 6 | |
| 18 | BAND HOSE (5 per pack) | 2 | |
| 19 | TRIM (14") | 2 | |
| 20 | PAD FUEL TANK | 4 | |
| 21 | BAND | 1 | |
| 22 | CLAMP | 4 | |
| 23 | WASHER | 2 | |
| 24 | WASHER (5 per pack) | 6 | |
| 25 | WASHER SPRING | 6 |
