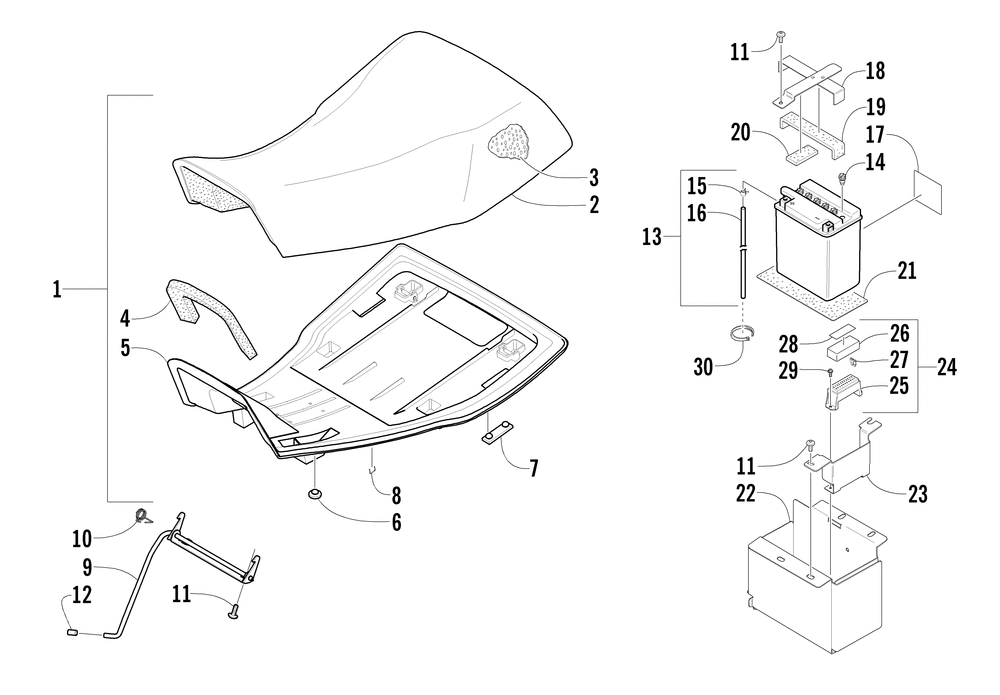

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | SEAT TBOX-ASSY (inc. 2-9) | 1 | |
| 2 | COVER SEAT | 1 | |
| 3 | FOAMSEAT (68-72ILD).48@3.3 | 1 | |
| 4 | FOAMSOUND-SEAT | 1 | |
| 6 | BUMPERSEAT | 2 | |
| 7 | BUMPER SEAT | 2 | |
| 8 | STAPLE3/8L X 1/2W-20GA SS-SEAT | 0 | |
| 9 | LATCH SEAT | 1 | |
| 10 | SPRINGSEAT LATCH | 1 | |
| 11 | SCREWMACH-TSTRH M6X1.0X16 Z&BLK (5 per pack) | 3 | |
| 12 | CAPPROTECTOR-1/4 THREAD (5 per pack) | 1 | |
| 13 | BATTERY PKG (0645-165) (inc. 2-6) | 1 | |
| 14 | BATTERY CAP (6 per pack) | 6 | |
| 15 | CLAMP HOSE-BATTERY VENT | 1 | |
| 16 | HOSE BATTERY VENT-550MM | 1 | |
| 17 | LABEL WARNING-BATTERY | 1 | |
| 18 | STRAP HOLDDOWN-BTRY (inc. 19-20) | 1 | |
| 19 | PADBATTERY-TOP RR | 1 | |
| 20 | PAD BATTERY-TOP FR | 1 | |
| 21 | PADBATTERY | 1 | |
| 22 | BOX BATTERY | 1 | |
| 23 | BRKT FUSEHOLDER | 1 | |
| 24 | FUSE BOX-ASSY (inc. 22-23) | 1 | |
| 27 | FUSE10 AMP ATO | 4 | |
| 27 | FUSE15 AMP ATO | 2 | |
| 28 | DECALFUSE BLOCK | 1 | |
| 29 | SCREWSELF TAP-HWH tahos_10-24X1/2 TYP F Z&Y (5 per pack) | 2 | |
| 30 | TIECABLE 11.50 (10 per pack) | 1 |
