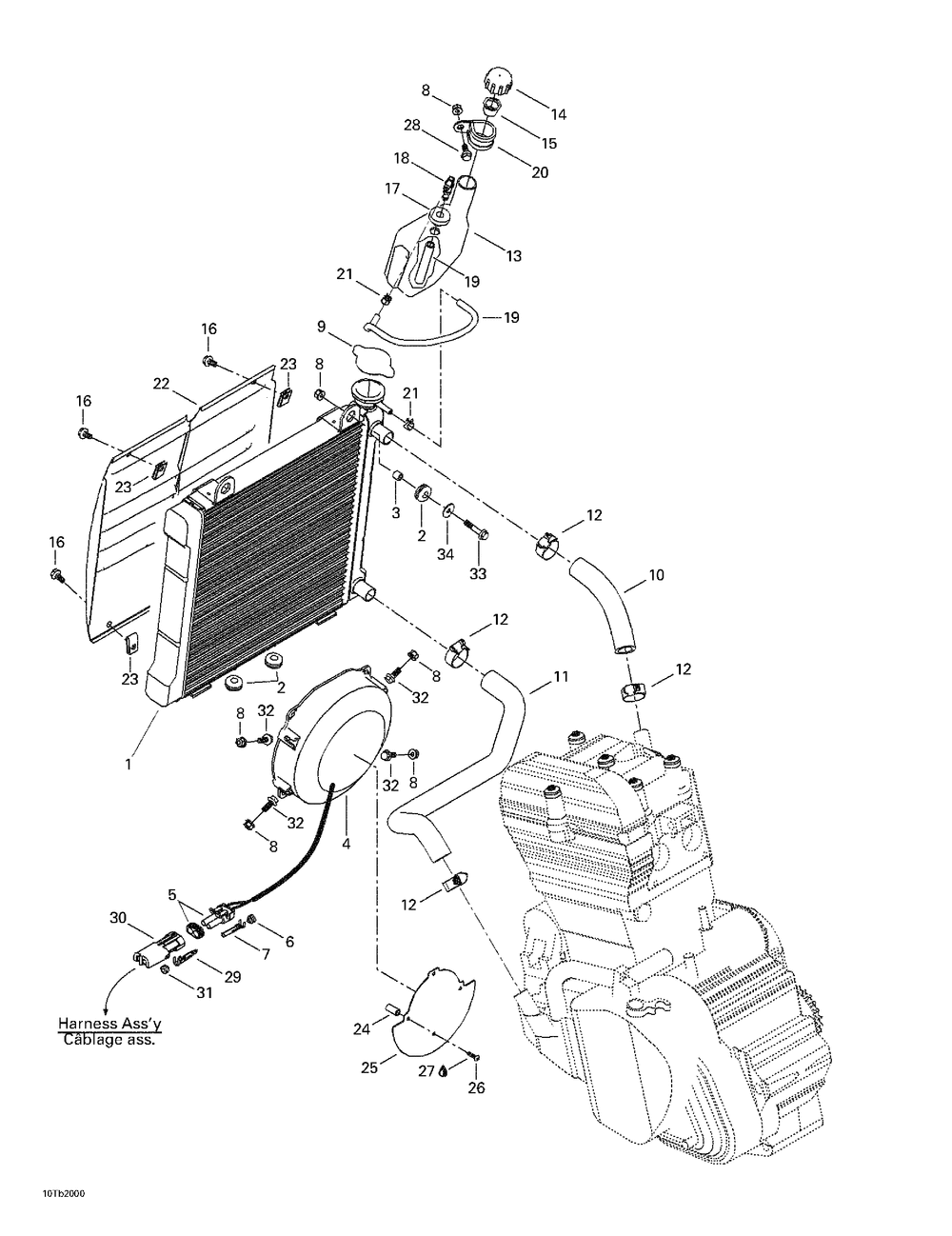

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| Hex. Flanged Screw M6 X 25 | 2 | ||
| FEMALE TERMINAL | 2 | ||
| 1 | RADIATOR | 1 | |
| 2 | Grommet | 4 | |
| 3 | BUSHING (2.000 per pack) | 2 | |
| 4 | FAN ASStahos_Y Includes 4 - 7. | 1 | |
| 4 | Flat Washer | 2 | |
| 5 | ANTIFREEZE BOTTLE12X1 (12.000 per pack) | 0 | |
| 5 | MALE CONNECTOR 2 CIRCUITS | 1 | |
| 6 | Wire Seal | 2 | |
| 8 | Hex. Flanged Elastic Nut M6 | 7 | |
| 9 | BOUCHON RADIAT.*CAP-PRESSURE | 1 | |
| 10 | RADIATOR INLET HOSE | 1 | |
| 11 | RADIATOR OUTLET HOSE | 1 | |
| 12 | Tridon Gear Clamp | 4 | |
| 13 | COOLANT TANK | 1 | |
| 14 | TANK CAP | 1 | |
| 15 | PROTECTION CAP | 1 | |
| 16 | Hex. Flanged Screw M6 X 12 | 4 | |
| 17 | GROMMET | 1 | |
| 18 | ELBOW MALE CONNECTOR (5.000 per pack) | 1 | |
| 19 | POLYURETHANE HOSE 5.2 MM (30.000 per pack) | 0 | |
| 20 | HOSE RETAINER | 1 | |
| 21 | Spring Clamp | 2 | |
| 22 | RADIATOR PROTECTOR | 1 | |
| 23 | Panel Nut M6 X 1.0 | 4 | |
| 24 | SPACER | 4 | |
| 25 | HEAT SHIELD | 1 | |
| 26 | TAPPING SCREW M4.2 X 25 (25.000 per pack) | 4 | |
| 27 | LOCTITE 271 10 ML | 0 | |
| 28 | Hex. Flanged Screw M6 X 16 | 1 | |
| 29 | Male Terminal | 0 | |
| 30 | Female Housing, 2 Circuits | 0 | |
| 32 | HEX. SCREW M6 X 16 (10.000 per pack) | 4 | |
| 36 | CALE *SHIM | 8 |
