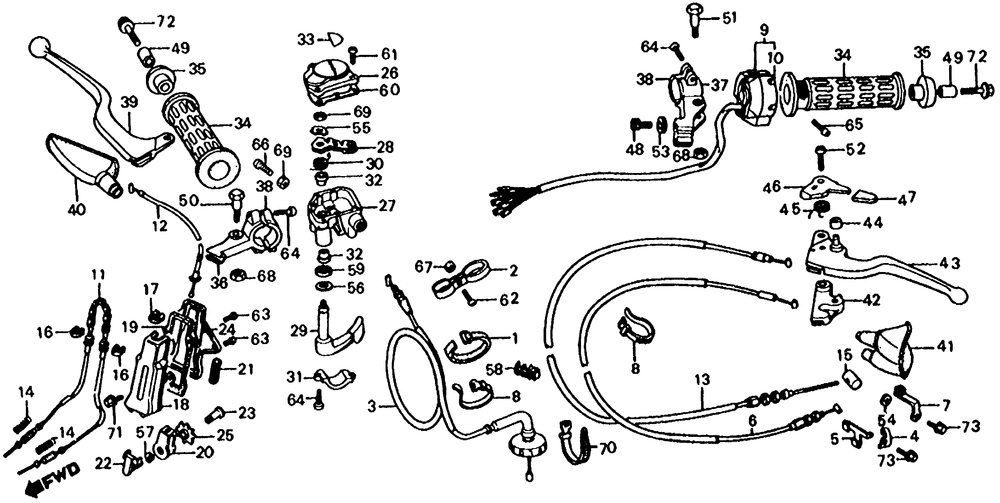

Honda TRX125 TRX125 CONTROL LEVERS@SWITCHES @CABLES 86
CONTROL LEVERS@SWITCHES @CABLES 86
№ Наименование Примечание Кол-во
001 BAND THROTTLE CABLE 0
002 GUIDE 0
003 CABLE SET THROTTLE 1
004 STAY WIRE 0
005 CLIP WIRE 0
006 CABLE 0
007 LEVER 1
008 BAND B1, WIRE 2
009 SWITCH ASSY. 0
010 COVER SWITCH 0
011 CABLE ASSY. FR. 1
012 CABLE 0
013 CABLE BRAKE 0
014 SPRING B BRAKE ROD 2
015 JOINT BRAKE CABLE 1
016 GROMMET CABLE 2
017 GROMMET RR. (1ST) 1
017 GROMMET RR. (1ST) 1
018 BOX EQUALIZER 1
019 GSKT EQUALIZER BOC 1
019 GASKET 1
020 PLATE EQUALIZER 1
021 SPRING CABLE RETURN 0
022 PIN EQUALIZER GUIDE 1
023 PIN EQUALIZER 1
024 COVER EQUALIZER BOX 0
025 SPROCKET EQUALIZER 1
026 CASE THROTTLE LEVER 0
027 CASE THROTTLE LEVER 1
028 ARM THROTTLE 1
029 LEVER THROTTLE 1
029 LEVER THROTTLE 1
030 SPRING 1
031 HLDR THROTTLE CASE 1
032 BUSH THROTTLE PIVOT 2
033 MARK 0
034 GRIP HANDLEBAR 0
035 GUARD HANDLE END 2
036 BRACKET R. 0
037 BRACKET BRAKE LEVER 1
037 BRACKET BRAKE LEVER 1
038 HLDR, LEVER BRACKET 2
039 LEVER R. HANDLEBAR 1
040 CVR R. HANDLE LEVER 0
041 CVR L. HANDLE LEVER 1
042 ARM REVERSE ASSIST 1
043 LEVER RR. BRAKE 1
044 CAP REVERSE PIN 1
045 SPRING 1
046 LEVER PARKING LOCK 0
046 LEVER PARKING LOCK 1
047 CAP PARKING LEVER 1
047 CAP PARKING LEVER 1
048 BOLT WIRE ADJUSTING 1
049 COLLAR 2
050 BOLT 1
051 BOLT 1
051 BOLT 1
052 SCREW 0
053 NUT, FIXING 1
053 NUT, FIXING 1
054 WASHER (10X24) 1
055 WASHER LOCK (6MM) 1
056 WASHER (9X20) 1
057 CIRCLIP (7MM) 1
058 CLIP CORD 0
059 DUST SEAL (9X16X5) 1
060 GSKT THROTTLE CASE 0
061 SCREW, PAN (4X12) 3
062 SCREW, PAN (4X20) 1
062 SCREW PAN (4X20) 1
063 SCREW, PAN (5X12) 3
064 SCREW, PAN (5X18) 6
065 SCREW, PAN (5X22) 2
066 SCREW, PAN (6X32) 1
067 NUT, HEX. (4MM) 1
068 NUT, HEX. (6MM) 2
069 NUT, HEX. (6MM) 2
070 BAND B1, WIRE 1
071 BOLT, FLANGE (6X12) 2
072 BOLT FLANGE (6X25) 2
073 BOLT FLANGE (6X16) 2
