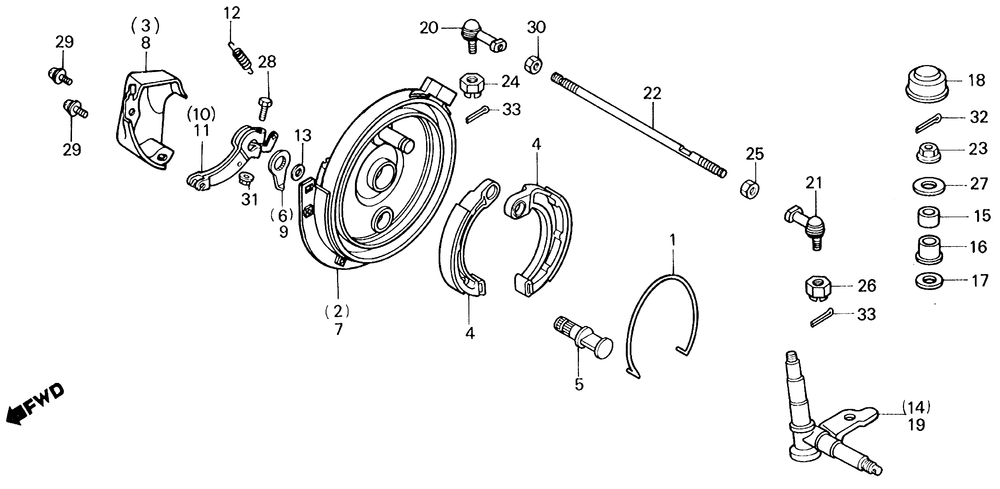

Honda TRX70 TRX70 FRONT BRAKE PANEL@TIE ROD
FRONT BRAKE PANEL@TIE ROD
№ Наименование Примечание Кол-во
NI SHOE KIT BRAKE 2
NI SHOE KIT BRAKE 0
NI SHOE KIT BRAKE 2
NI SHOE KIT BRAKE 2
001 SPRING BRAKE SHOE 2
001 SPRING BRAKE SHOE 2
001 SPRING BRAKE SHOE 0
002 PANEL R. FR. BRAKE 0
003 COVER R. FR. 0
004 *06430-HB2-405 (SEE KIT P/N--END OF BLOCK) 0
005 CAM FR. BRAKE 2
006 INDICATOR R. FR. 0
007 PANEL L. FR. BRAKE 0
008 COVER L. FR. 0
009 INDICATOR L. FR. 0
010 ARM R. FR. BRAKE 0
011 ARM L. FR. BRAKE 0
012 SPRING FR. 0
013 DUST SEAL BRAKE CAM 0
014 KNUCKLE R. 0
015 BUSH A KINGPIN 0
016 BUSH B KINGPIN 0
017 DUST SEAL KINGPIN 0
018 CAP KNUCKLE 0
019 KNUCKLE L. 0
020 JOINT BALL 0
021 JOINT BALL 2
022 TIE ROD 0
023 NUT CASTLE (10MM) 0
024 NUT, FR. WHEEL AXLE 2
025 NUT HEX. (10MM) 0
026 NUT CASTLE (10MM) 2
027 WASHER (15.7MM) 0
028 BOLT, HEX. (5X25) 2
028 BOLT, HEX. (5X25) 2
029 SCREW-WASHER (5X12) 4
030 NUT, HEX. (10MM) 2
031 NUT, FLANGE (5MM) 2
032 PIN SPLIT (2.0X35) 2
032 PIN, SPLIT (2.0X28) 2
032 PIN, COTTER (2.0X32) 2
033 PIN, SPLIT (2.5X20) 4
033 PIN, SPLIT (2.5X25) 4
