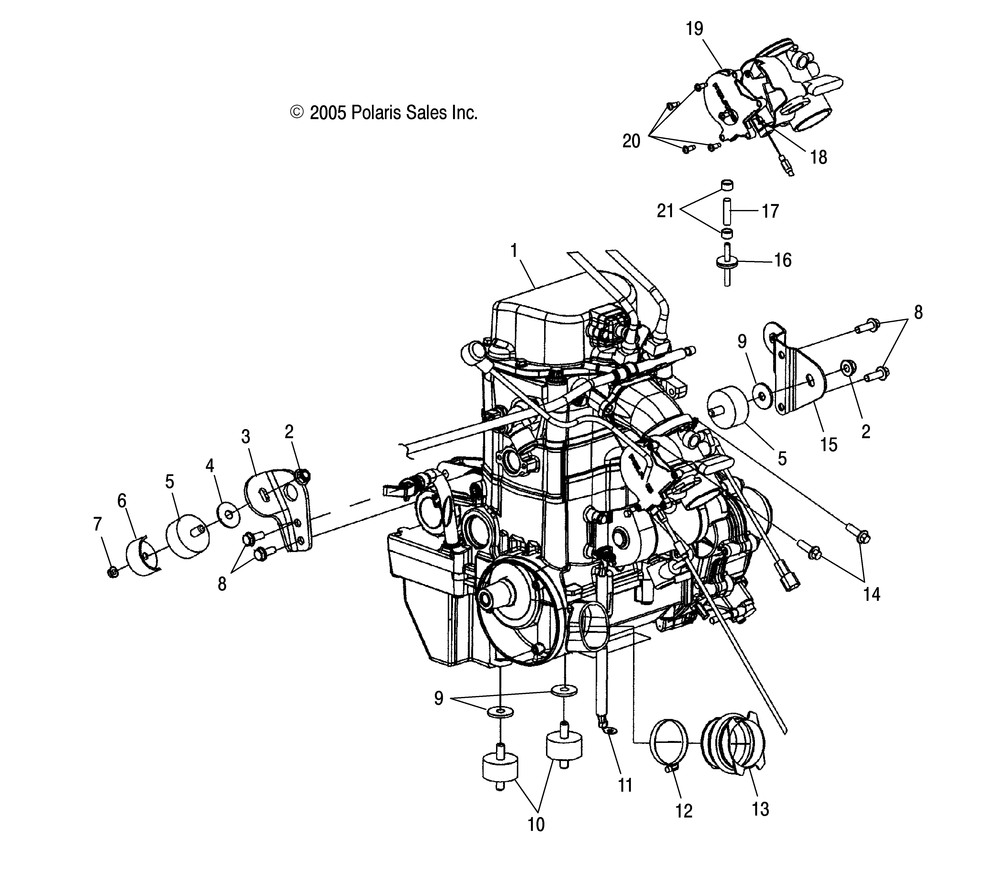

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | SUBSTITUTED BY 9990000 NOTE: The Short Block assembly contains a crankcase assembly cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for warranty consideration. | 1 | |
| 2 | NUT | 4 | |
| 3 | MNT-ENGINELOWERFRONTBLK | 1 | |
| 4 | WASHER | 0 | |
| 5 | ISOLATOR-3/8-24M/M60DURO | 2 | |
| 6 | BRKT-TORQUE STOP PLTD | 1 | |
| 7 | NUT-3/8-24 NYLOK | 1 | |
| 8 | BOLT-3/8-16X7/8 HEX FLANGE GR5 | 4 | |
| 9 | WASHER FLAT | 2 | |
| 10 | ISOLATOR-3/8-24M3/8-16M60DUR | 2 | |
| 11 | CABLE-BLK (BATTERY/FRAME)COM | 1 | |
| 12 | CLAMP HOSE S.S.(10) (10 per pack) | 1 | |
| 13 | BOOT-CLUTCH INTAKE2.25 I.D. | 1 | |
| 14 | SCREW | 2 | |
| 15 | BRKT-MNTENGINETOP PLTD | 1 | |
| 16 | VALVE CHECK | 1 | |
| 17 | FUEL HOSE-250 CM | 0 | |
| 18 | GUIDECABLE | 1 | |
| 19 | ASM-COVER AND O-RINGTB | 1 | |
| 20 | SCREWSHOULDER | 5 | |
| 21 | CLAMP-HOSE | 2 |
