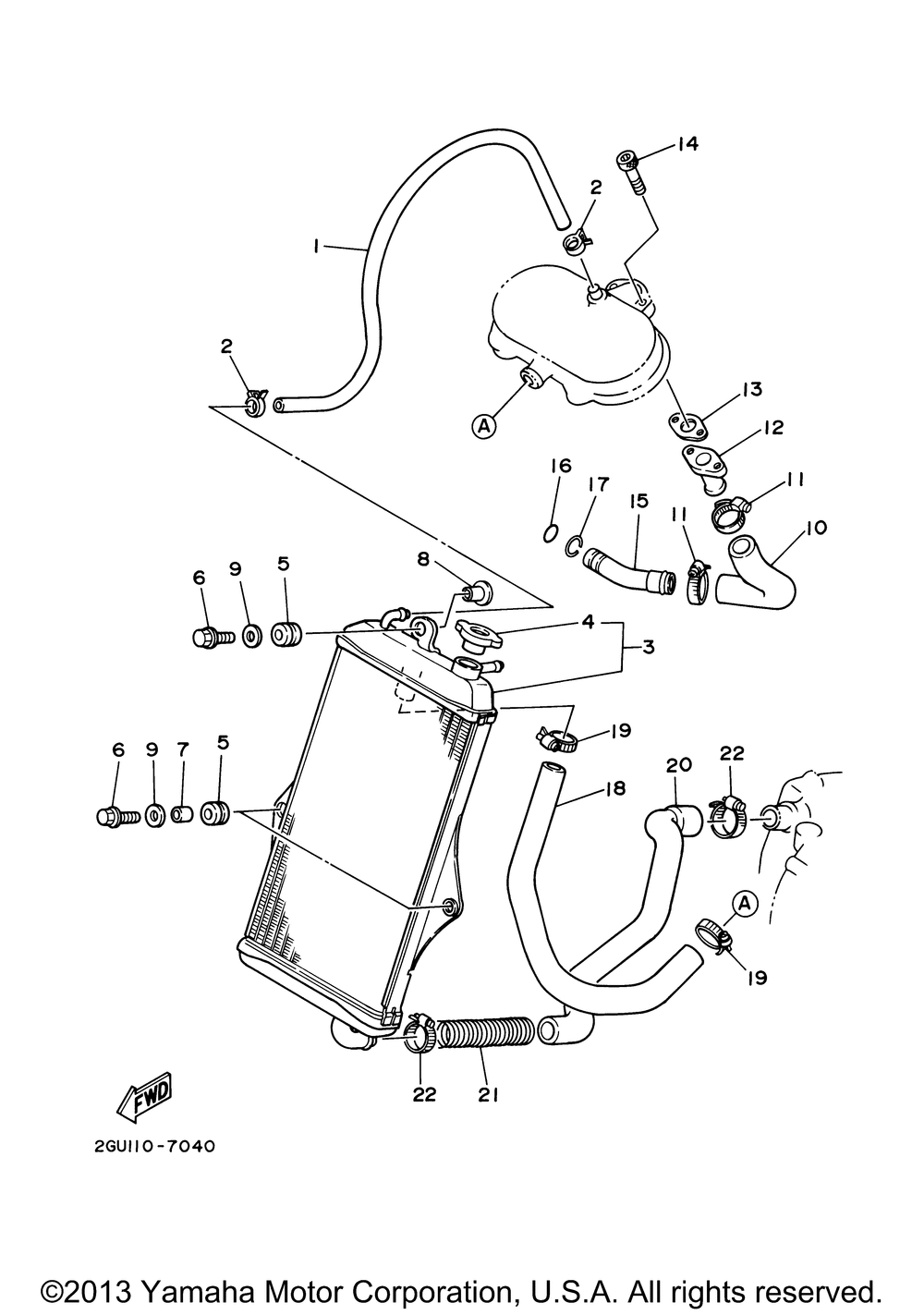

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | PIPE 5 | 1 | |
| 2 | CLIP(3YX) (5 per pack) | 2 | |
| 3 | RADIATOR ASY-CAPLS | 1 | |
| 4 | CAPRADIATOR | 1 | |
| 5 | GROMMET (5 per pack) | 3 | |
| 6 | BOLTFLANGE | 3 | |
| 7 | COLLAR | 2 | |
| 8 | COLLAR (56R) | 1 | |
| 9 | WASHER PLATE | 3 | |
| 10 | PIPE 1 | 1 | |
| 11 | HOSE CLAMP ASSY | 2 | |
| 12 | JOINT | 1 | |
| 13 | GASKET | 1 | |
| 14 | BOLT (4FL) | 2 | |
| 15 | JOINT 1 | 1 | |
| 16 | O-RING | 1 | |
| 17 | CIRCLIPOUTER | 1 | |
| 18 | PIPE 2 | 1 | |
| 20 | PIPE 4 | 1 | |
| 21 | COVER WATER INLET | 1 |
