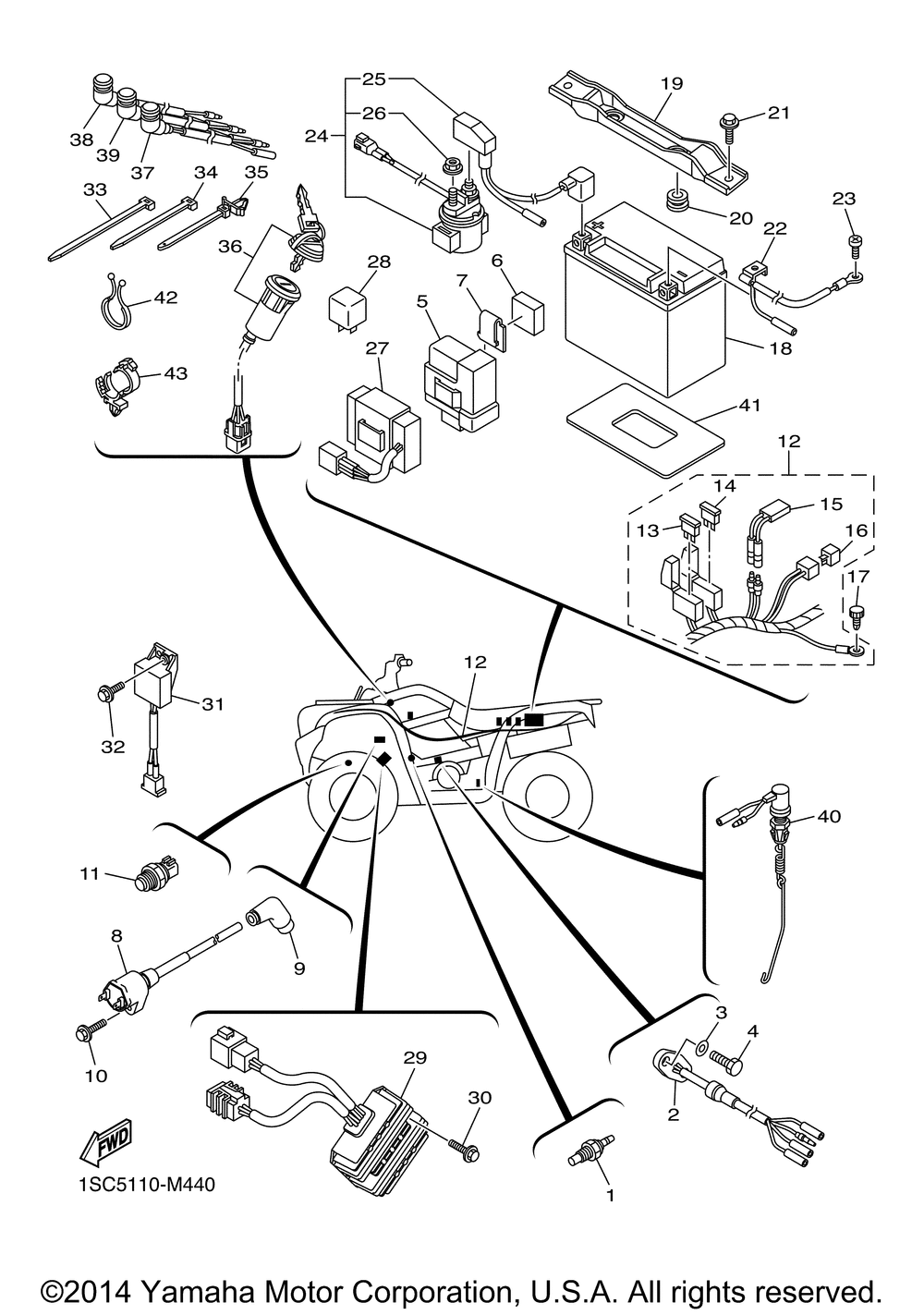

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | THERMO UNIT | 1 | |
| 2 | NEUTRAL SWITCH ASSY | 1 | |
| 3 | WASHER PLAIN | 2 | |
| 4 | BOLT COVER MOUNTING | 2 | |
| 5 | C.D.I. UNIT ASSY | 1 | |
| 6 | DAMPER | 1 | |
| 7 | PLATE | 1 | |
| 8 | IGNITION COIL ASSY | 1 | |
| 9 | PLUG CAP ASSY | 1 | |
| 10 | BOLT | 1 | |
| 11 | THERMOSENSOR ASSY | 1 | |
| 12 | WIRE HARNESS ASSY | 1 | |
| 13 | FUSE (10A-BL) (10 per pack) | 2 | |
| 14 | FUSE (30A) | 2 | |
| 15 | CIRCUIT BREAKER ASSY | 1 | |
| 16 | DIODE ASSY | 1 | |
| 17 | SCREW 1 | 1 | |
| 18 | GTX12BS GS BATTERY (GTX12-BS) GS 12V 10AH | 1 | |
| 19 | BRACKET BATTERY | 1 | |
| 20 | GROMMET | 2 | |
| 21 | BOLT (5 per pack) | 2 | |
| 22 | WIRE MINUS LEAD | 1 | |
| 24 | STARTER RELAY ASSY | 1 | |
| 25 | WIRE PLUS LEAD | 1 | |
| 26 | NUT (5 per pack) | 2 | |
| 27 | CONTROL UNIT ASSY | 1 | |
| 28 | RELAY ASSY | 1 | |
| 29 | RECTIFIER & REGULATO | 1 | |
| 30 | BOLTFLANGE | 2 | |
| 31 | CONTROL UNIT ASSY | 1 | |
| 32 | BOLT FLANGE | 1 | |
| 33 | CLAMP HOSE | 8 | |
| 34 | CLAMP | 1 | |
| 35 | CLAMP | 3 | |
| 36 | MAIN SWITCH ASSY | 1 | |
| 37 | PILOT LIGHT ASSY 1 | 1 | |
| 38 | PILOT LIGHT ASSY 2 | 1 | |
| 39 | PILOT LIGHT ASSY 3 | 1 | |
| 40 | STOP SWITCH ASSY | 1 | |
| 41 | DAMPER | 1 | |
| 42 | CLAMP | 1 | |
| 43 | CLAMP | 1 |
