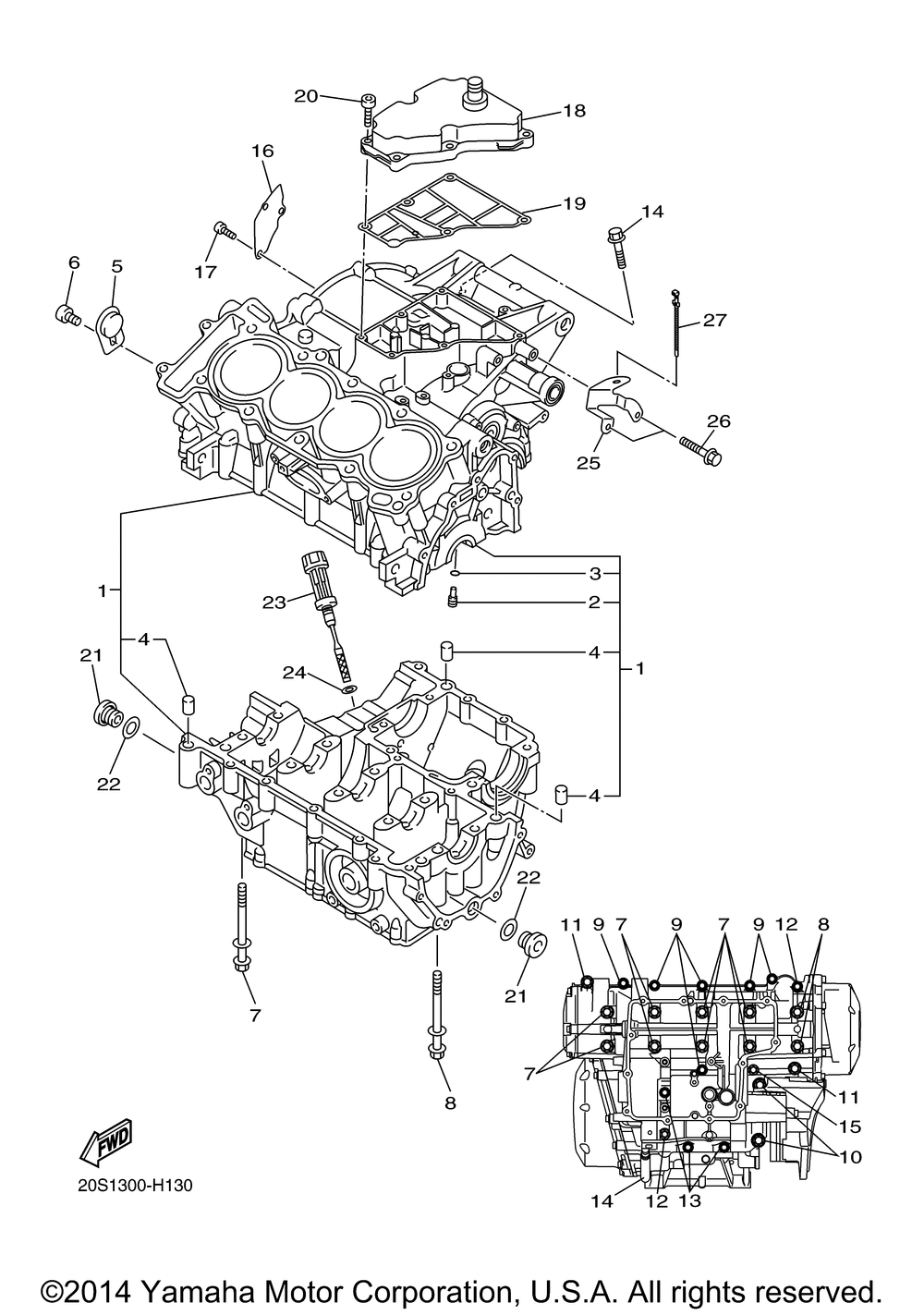

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CRANKCASE ASSY | 1 | |
| 2 | NOZZLE 3 | 4 | |
| 3 | O-RING | 4 | |
| 4 | PINDOWEL | 3 | |
| 5 | PLUG | 1 | |
| 6 | SCREW | 1 | |
| 7 | BOLT WITH WASHER | 8 | |
| 8 | BOLT WITH WASHER | 2 | |
| 9 | BOLT FLANGE | 6 | |
| 10 | BOLTFLANGE | 2 | |
| 11 | BOLT | 2 | |
| 12 | BOLT FLANGE | 2 | |
| 13 | BOLT FLANGE | 3 | |
| 14 | BOLT FLANGE | 1 | |
| 15 | BOLT FLANGE | 1 | |
| 16 | PLATE BREATHER | 1 | |
| 18 | COVER | 1 | |
| 19 | GASKET CRANKCASE CO | 1 | |
| 20 | BOLT (4MY) | 6 | |
| 21 | PLUG | 2 | |
| 22 | O-RING | 2 | |
| 23 | PLUG OIL LEVEL | 1 | |
| 24 | O-RING | 1 | |
| 25 | STAY 1 | 1 | |
| 26 | BOLT FLANGE | 2 | |
| 27 | CLAMP | 1 |
