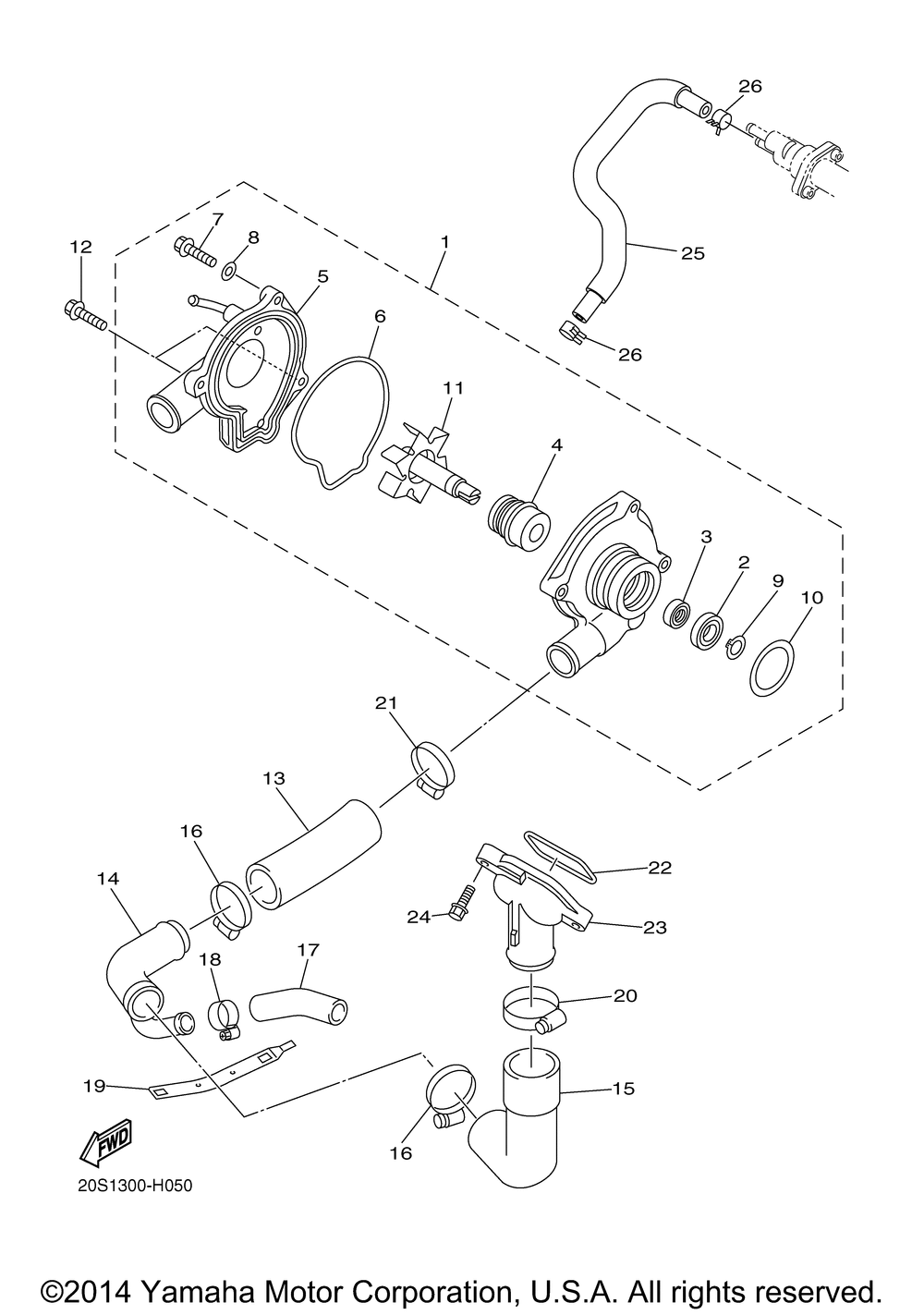

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | WATER PUMP ASSY | 1 | |
| 2 | BEARING | 1 | |
| 3 | OIL SEALS-TYPE | 1 | |
| 4 | SEAL MECHANICAL | 1 | |
| 5 | COVER HOUSING | 1 | |
| 6 | O-RING | 1 | |
| 7 | BOLTFLANGE (SMALL HEAD) | 2 | |
| 8 | GASKET | 1 | |
| 9 | CIRCLIP | 1 | |
| 10 | O-RING | 1 | |
| 11 | IMPELLER SHAFT ASSY | 1 | |
| 12 | BOLTSOCKET | 2 | |
| 13 | HOSE4 | 1 | |
| 14 | JOINT HOSE 1 | 1 | |
| 15 | HOSE 2 | 1 | |
| 16 | HOSE CLAMP ASSY | 2 | |
| 17 | HOSE 5 | 1 | |
| 18 | HOSE CLAMP ASSY | 1 | |
| 19 | COVER 2 | 1 | |
| 20 | HOSE CLAMP ASSY | 1 | |
| 21 | CLAMPHOSE | 1 | |
| 22 | O-RING | 1 | |
| 23 | JOINT 1 | 1 | |
| 24 | BOLTFLANGE | 2 | |
| 25 | HOSE 1 | 1 | |
| 26 | CLIP | 2 |
