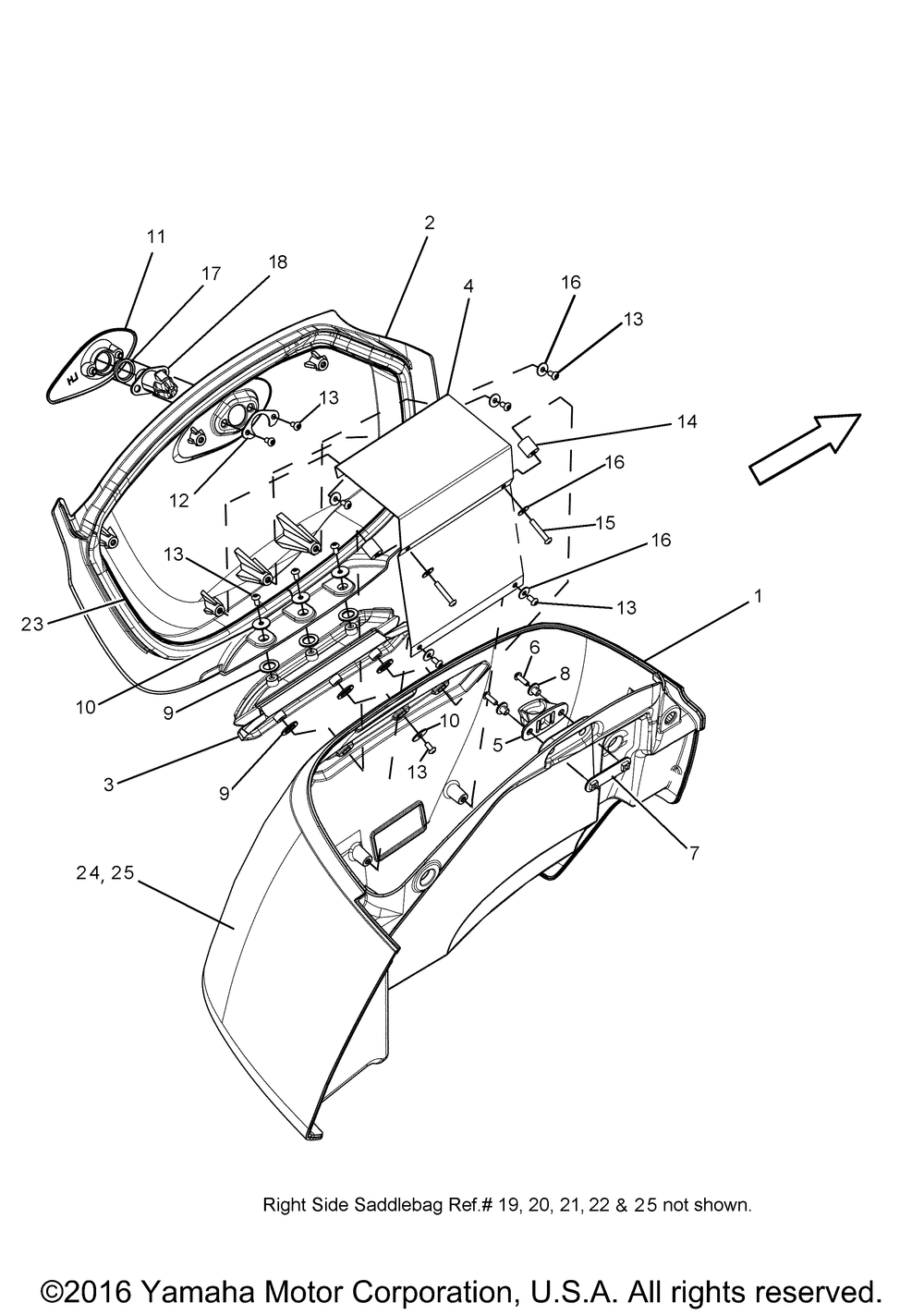

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | BODY - LEFT SADDLEBA LEFT | 1 | |
| 2 | LID LEFT - SILVER LEFT INCL. SEAL 1 | 1 | |
| 3 | **HINGE 1 - BLACK - LEFT | 1 | |
| 4 | OPEN STOPPER 1 (LH | 1 | |
| 6 | BOLT | 2 | |
| 7 | PLATE | 1 | |
| 8 | COLLAR 1 | 2 | |
| 9 | PLATE 2 | 6 | |
| 11 | * COVER LOCK ASSY 2 LEFT | 1 | |
| 12 | PLATE LOCK 1 | 1 | |
| 13 | BOLT | 11 | |
| 14 | SPACER | 2 | |
| 15 | BOLT | 1 | |
| 16 | WASHERPLATE | 7 | |
| 17 | SEAL 1 | 2 | |
| 18 | LOCK ASSY.1 | 2 | |
| 19 | BODY 2 - RIGHT - SIL RIGHT NOT SHOWN | 1 | |
| 20 | LID 2 - RIGHT - SILV RIGHT NOT SHOWN INCL. SEAL 1 | 1 | |
| 21 | **HINGE 2 - BLACK - RIGHT NOT SHOWN | 1 | |
| 22 | * COVERLOCK ASSY - RIGHT NOT SHOWN | 1 | |
| 23 | SEAL 1 RIGHT & LEFT | 2 | |
| 24 | GRAPHIC 1 - SADDLEBA (25 per pack) | 1 | |
| 25 | GRAPHIC 2 - SADDLEBA (25 per pack) | 1 |
