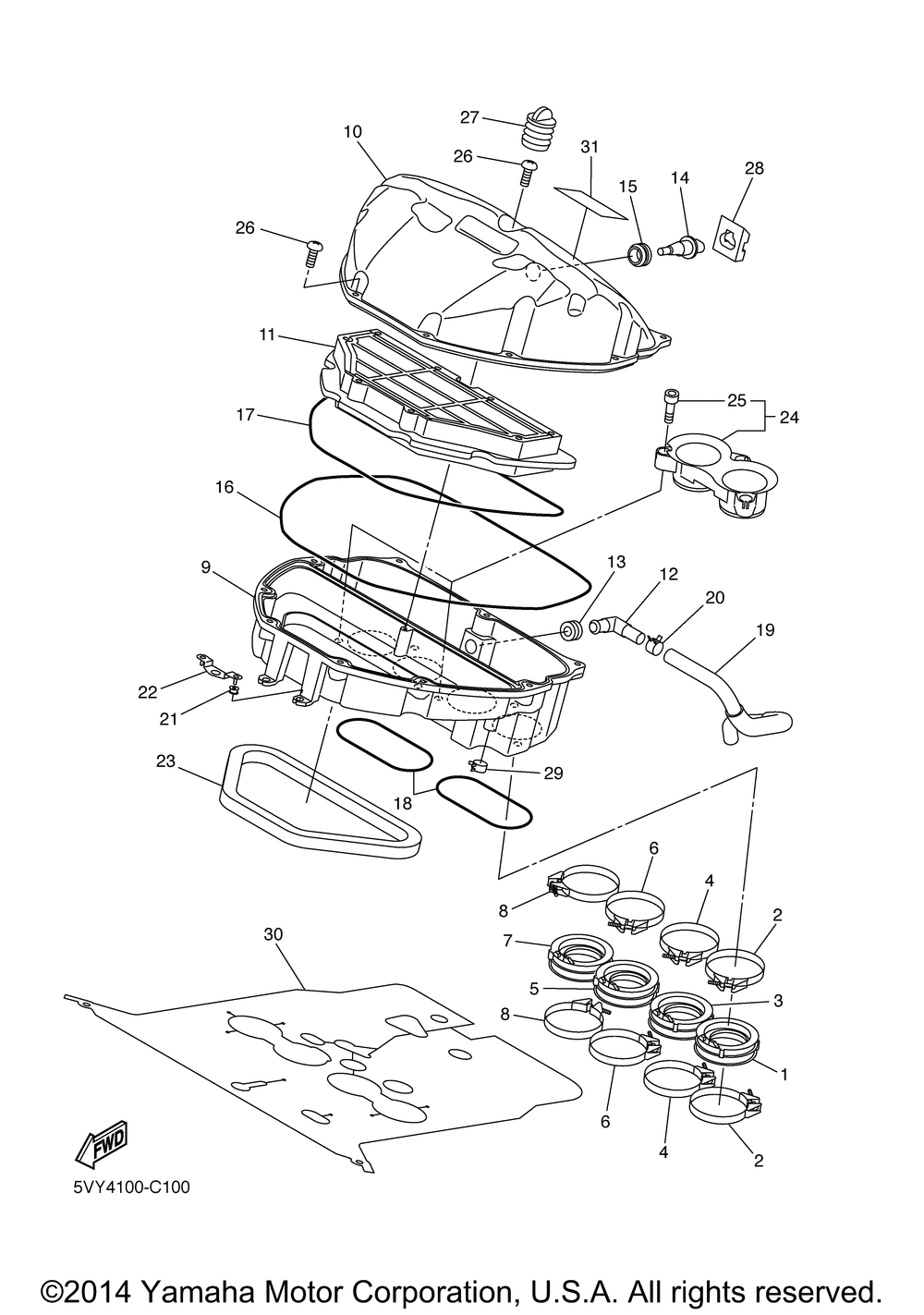

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | JOINT | 1 | |
| 2 | HOSE CLAMP ASSY | 2 | |
| 3 | JOINT CARBURETOR 2 | 1 | |
| 5 | JOINT CARBURETOR 3 | 1 | |
| 7 | JOINT CARBURETOR 4 | 1 | |
| 9 | CASE AIR CLEANER 1 | 1 | |
| 10 | CASE AIR CLEANER 2 | 1 | |
| 11 | Фильтр воздушный | 1 | |
| 12 | PIPE | 1 | |
| 13 | GROMMET | 1 | |
| 14 | AIR TEMPERATURE SENS | 1 | |
| 15 | GROMMET | 1 | |
| 16 | SEAL | 1 | |
| 17 | SEAL | 1 | |
| 18 | SEAL | 2 | |
| 19 | PIPE BREATHER 2 | 1 | |
| 20 | CLIP | 1 | |
| 21 | GROMMET | 2 | |
| 22 | STAY 1 | 1 | |
| 23 | SEAL | 1 | |
| 24 | JOINT ASSY | 2 | |
| 25 | BOLT | 3 | |
| 26 | SCREWBINDING | 10 | |
| 27 | PLUG | 1 | |
| 28 | DAMPER 1 | 1 | |
| 29 | CLIPSCISSOR | 1 | |
| 30 | PROTECTOR HEAT | 1 | |
| 31 | PLATE EPA 2 (CALI (CALIFORNIA) | 1 | |
| 31 | PLATE EPA 1(NON C (NON CALIFORNIA) | 1 |
