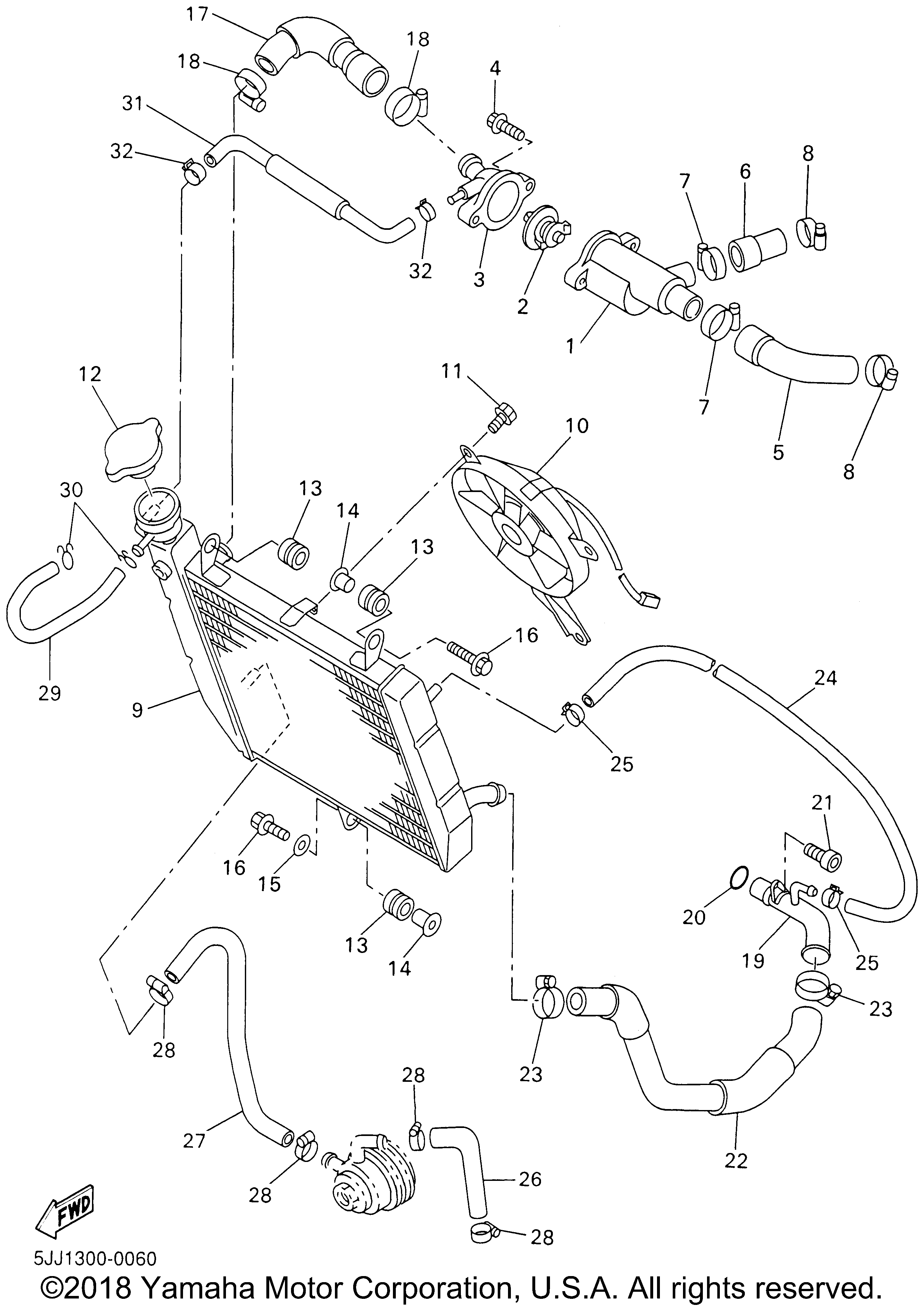

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | HOUSING THERMOSTA | 1 | |
| 2 | THERMOSTAT ASSY | 1 | |
| 3 | COVER THERMOSTAT | 1 | |
| 4 | BOLT WASHER (4KG) | 2 | |
| 5 | HOSE 2 | 1 | |
| 6 | HOSE 3 | 1 | |
| 7 | HOSE CLAMP ASSY | 2 | |
| 8 | HOSE CLAMP ASSY | 2 | |
| 9 | RADIATOR ASSY | 1 | |
| 10 | BLOWER ASSY | 1 | |
| 11 | BOLTFLANGE | 6 | |
| 12 | CAP RADIATOR | 1 | |
| 13 | GROMMET | 3 | |
| 14 | COLLAR | 2 | |
| 15 | WASHERPLATE | 1 | |
| 16 | BOLTFLANGE | 2 | |
| 17 | HOSE 4 | 1 | |
| 18 | HOSE CLAMP ASSY | 2 | |
| 19 | PIPE 4 | 1 | |
| 20 | O'RING | 1 | |
| 21 | BOLT (4MY) | 1 | |
| 22 | HOSE 7 | 1 | |
| 24 | HOSE 1 | 1 | |
| 25 | CLIPSCISSOR | 2 | |
| 26 | HOSE 5 | 1 | |
| 27 | HOSE 6 | 1 | |
| 28 | HOSE CLAMP ASSY | 4 | |
| 29 | HOSE (L30) | 1 | |
| 30 | CLIPSCISSOR (5 per pack) | 2 | |
| 31 | HOSE 8 | 1 | |
| 32 | CLIPSCISSOR | 2 |
