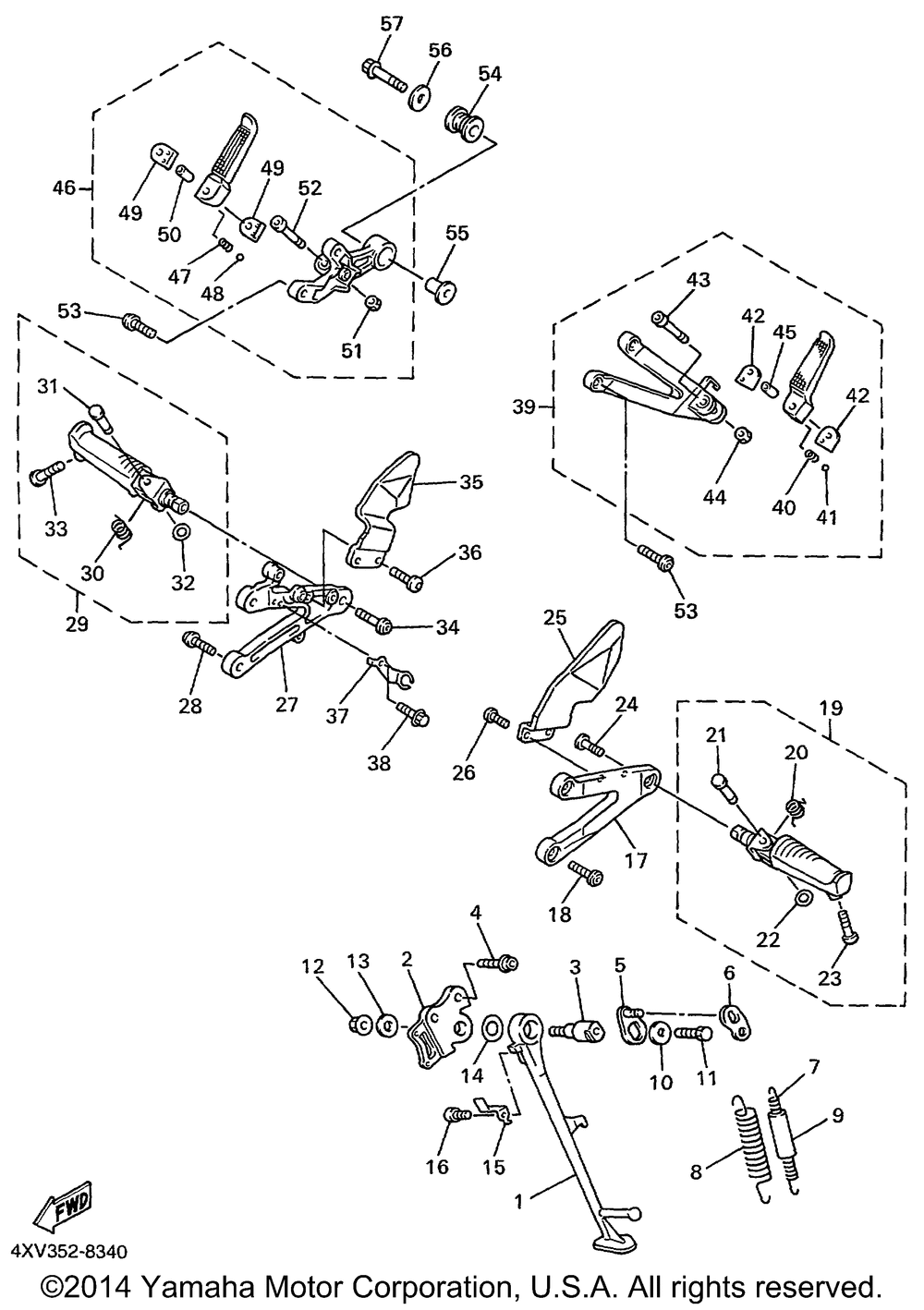

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | STAND SIDE | 1 | |
| 2 | BRACKET SIDE STAN | 1 | |
| 3 | GUIDE SIDE STAND | 1 | |
| 4 | BOLT HEXAGON SOCKET | 2 | |
| 5 | HOOKSIDE STAND | 1 | |
| 6 | LINK SIDE STAND | 1 | |
| 7 | SPRINGTENSION | 1 | |
| 8 | SPRINGTENSION | 1 | |
| 9 | GUIDE SIDE STAND | 1 | |
| 10 | WASHER PLATE 8AT | 1 | |
| 11 | BOLTHEXAGON | 1 | |
| 12 | NUTSELF-LOCKING | 1 | |
| 13 | WASHER PLATE | 1 | |
| 14 | WASHERPLATE | 1 | |
| 15 | LINK SIDE STAND | 1 | |
| 16 | BOLT (4MY) | 1 | |
| 17 | BRACKET 2 | 1 | |
| 18 | Болт под шестигранник | 2 | |
| 19 | FRONT FOOTREST ASSY (LEFT) | 1 | |
| 20 | SPRING TORSION | 1 | |
| 21 | PIN | 1 | |
| 22 | WASHERPLATE | 1 | |
| 23 | BOLT | 1 | |
| 24 | BOLTHEX. SOCKET BUT | 1 | |
| 25 | PLATE 1 | 1 | |
| 26 | SCREW(3GG) | 2 | |
| 27 | BRACKET 3 | 1 | |
| 29 | FRONT FOOTREST ASSY (RIGHT) | 1 | |
| 30 | SPRING TORSION | 1 | |
| 35 | PLATE 2 | 1 | |
| 37 | STAY STOP SWITCH | 1 | |
| 38 | BOLT FLANGE | 1 | |
| 39 | REAR FOOTREST ASSEMBLY 1 | 1 | |
| 40 | SPRINGCOMPRESSION (5 per pack) | 1 | |
| 41 | BALL 1/4 (5 per pack) | 1 | |
| 42 | WASHERSPECIAL | 2 | |
| 43 | BOLT SOCKET | 1 | |
| 44 | NUT-U | 1 | |
| 45 | COLLAR (24R) (5 per pack) | 1 | |
| 46 | REAR FOOTREST ASSEMBLY 2 | 1 | |
| 54 | DAMPER FOOTREST 2 | 1 | |
| 55 | COLLAR | 1 | |
| 56 | WASHERPLATE | 1 | |
| 57 | BOLT | 1 |
