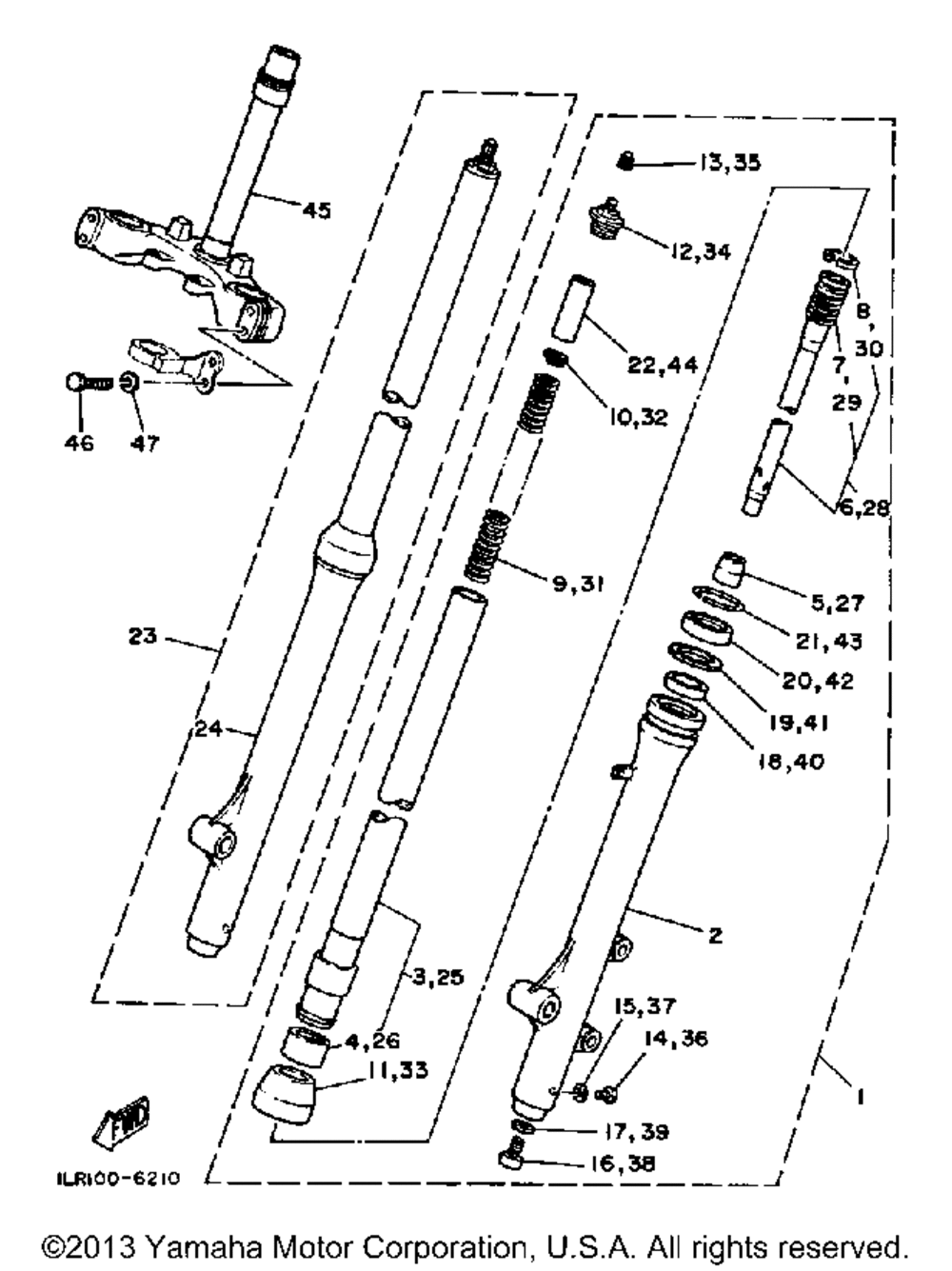

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FRONT FORK ASY L | 1 | |
| 2 | TUBEOUTER 1 SILVER | 1 | |
| 3 | INNER TUBE 1 | 1 | |
| 4 | PISTONFRNT FORK | 1 | |
| 5 | SPINDLETAPER | 1 | |
| 6 | CYLINDERFRTFRK | 1 | |
| 7 | SPRINGREBOUND | 1 | |
| 8 | RINGPISTON FRTFRK | 1 | |
| 9 | SPRINGFRONT FORK (K50.23) | 1 | |
| 10 | SEATSPRING UPPER | 1 | |
| 11 | SEALDUST | 1 | |
| 12 | BOLTCAP | 2 | |
| 13 | CAPAIR VALVE | 1 | |
| 14 | SCREWPAN HEAD | 1 | |
| 15 | GASKETDRAIN PLUG | 1 | |
| 16 | BOLT HEXAGON SOCKET | 1 | |
| 17 | GASKET (KYB) | 1 | |
| 18 | METALSLIDE 1 | 1 | |
| 19 | WASHEROIL SEAL | 1 | |
| 20 | OIL SEAL | 1 | |
| 21 | RINGSNAP | 1 | |
| 22 | SPACER | 1 | |
| 23 | FRONT FORK ASY R (RH) | 1 | |
| 24 | TUBEOUTER 2 SILVER | 1 | |
| 45 | UNDER BRACKET | 1 | |
| 46 | BOLT (97322-08040) | 4 | |
| 47 | WASHERSPRING | 4 |
