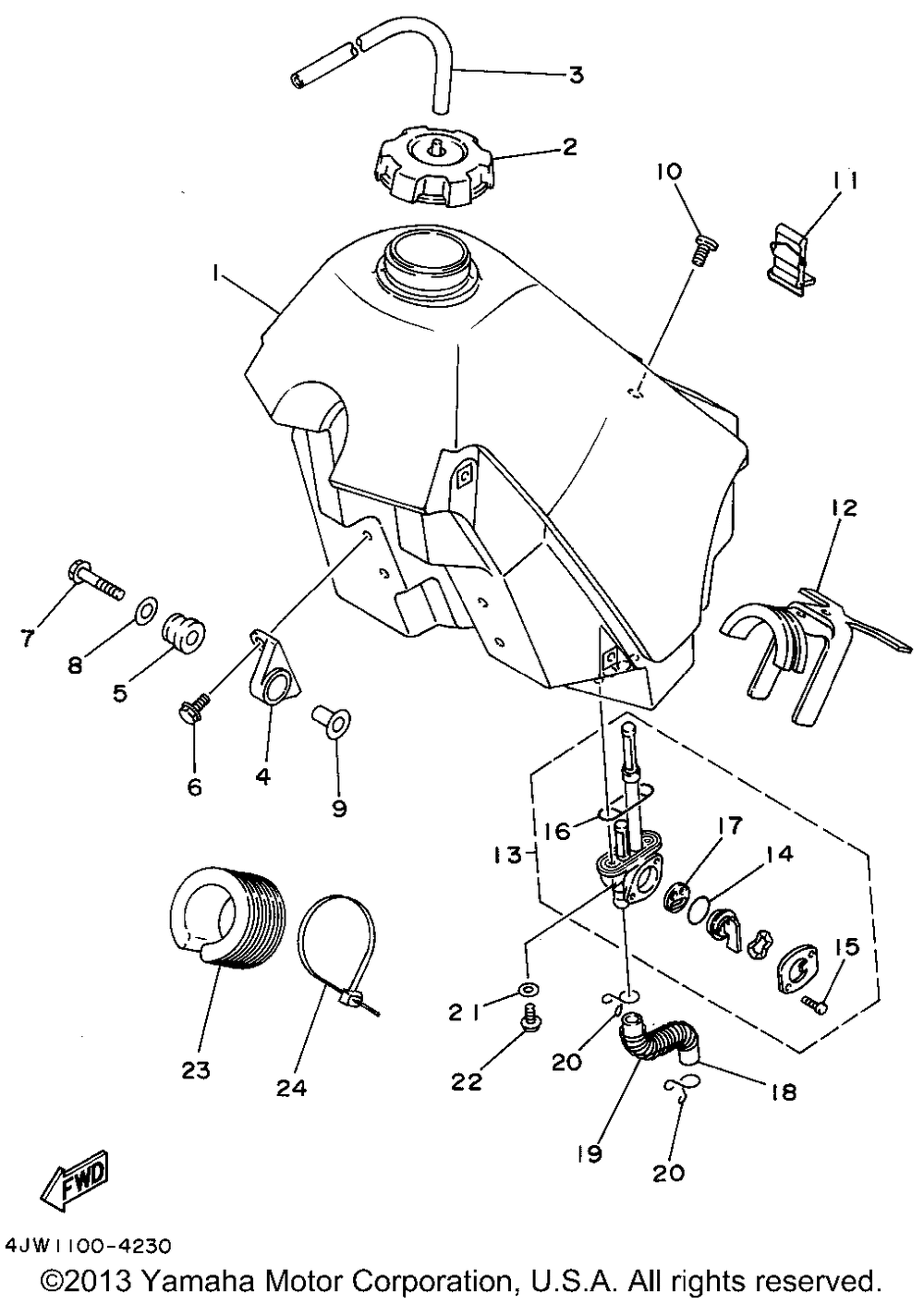

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FUEL TANK | 1 | |
| 2 | CAP ASSY | 1 | |
| 3 | HOSE | 1 | |
| 4 | HOLDER DAMPER | 2 | |
| 5 | GROMMET | 2 | |
| 6 | BOLT WASHER BASED (95023-06016-00) | 4 | |
| 7 | BOLTFLANGE(4BH) | 2 | |
| 8 | WASHERPLATE | 2 | |
| 9 | WASHERSPECIAL | 2 | |
| 10 | SCREWBIND | 1 | |
| 11 | BANDTANK FITTING | 1 | |
| 12 | DAMPER LOCATING 1 | 1 | |
| 13 | FUEL COCK ASY 1 | 1 | |
| 14 | SEAL COCK | 1 | |
| 15 | SCREWPAN HEAD (5 per pack) | 2 | |
| 16 | O-RING | 1 | |
| 17 | VALVE PACKING | 1 | |
| 18 | PIPEFUEL 1 | 1 | |
| 19 | SPRINGCOMPRESSION | 1 | |
| 20 | CLIP | 2 | |
| 21 | WASHERPLATE | 2 | |
| 22 | SCREWSPEC'L SHAPE | 2 | |
| 23 | DAMPERLOCATING 2 | 1 | |
| 24 | CLAMP | 1 |
