| № | Наименование | Примечание | Кол-во |
|---|---|---|---|

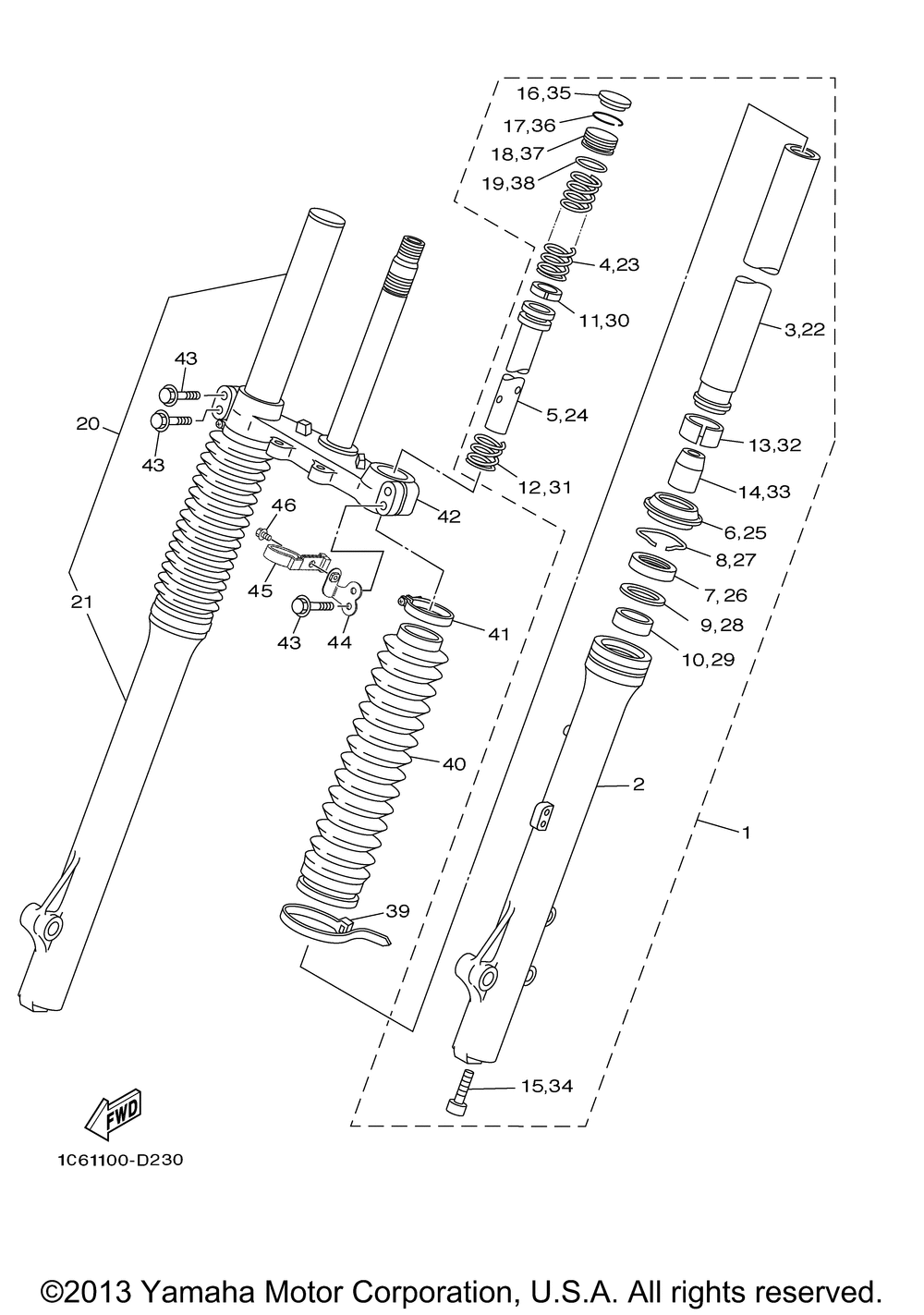

| 1 | FRONT FORK ASSY (L (L.H) | 1 | |
| 2 | TUBE OUTER (LEFT) (L.H) | 1 | |
| 3 | INNER TUBE COMP.1 | 1 | |
| 4 | SPRING | 1 | |
| 5 | PISTON FRONT FORK | 1 | |
| 6 | SEAL DUST | 1 | |
| 7 | OIL SEAL | 1 | |
| 8 | CLIPOIL SEAL | 1 | |
| 9 | SEALSPACER | 1 | |
| 10 | METAL SLIDE 1 | 1 | |
| 11 | RING PISTON | 1 | |
| 12 | SPRING REBOUND | 1 | |
| 13 | METAL SLIDE 2 | 1 | |
| 14 | VALVEOIL PRESSURE | 1 | |
| 15 | BOLTHEX SCKT HEAD | 1 | |
| 16 | CAPFRONT FRK | 1 | |
| 17 | CIRCLIP | 1 | |
| 18 | BOLTCAP | 1 | |
| 19 | GASKET | 1 | |
| 20 | FRONT FORK ASSY (R (R.H) | 1 | |
| 21 | TUBE OUTER (RIGHT | 1 | |
| 39 | CLAMPHOSE | 2 | |
| 40 | BOOT | 2 | |
| 41 | BAND | 2 | |
| 42 | UNDER BRACKET | 1 | |
| 43 | BOLTFLANGE | 6 | |
| 44 | GUIDE CABLE | 1 | |
| 45 | GUIDE CABLE | 1 | |
| 46 | BOLTWASHER BASED (5 per pack) | 1 |
