Can-Am Commander MAX 1000_DPS, XT Commander MAX 1000_DPS, XT 09- Cab Interior _77C1404

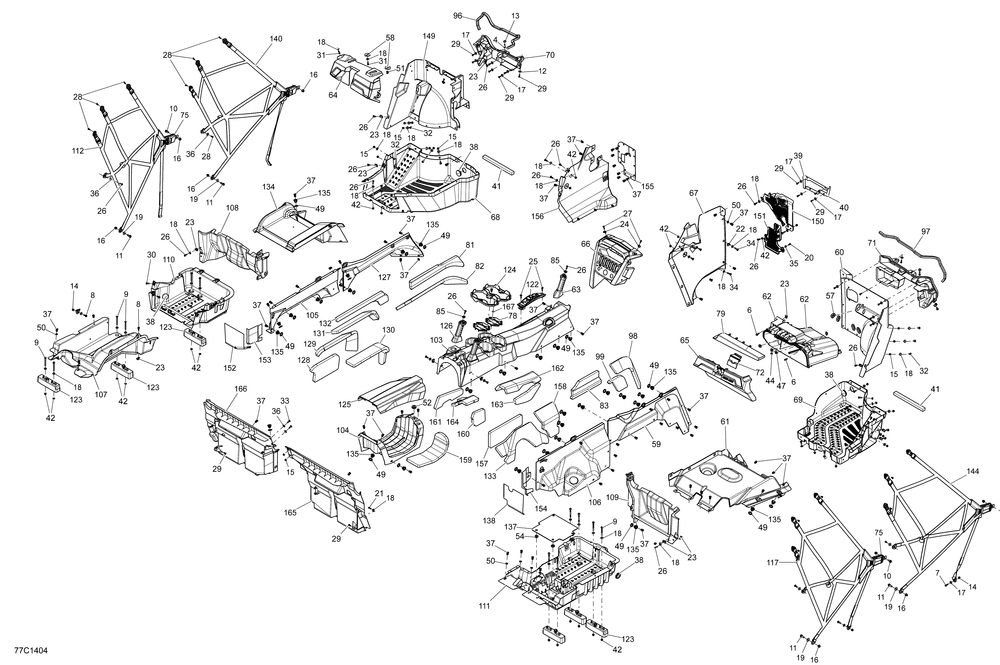

09- Cab Interior _77C1404
№ Наименование Примечание Кол-во
4 HEX. SCREW M6 X 25 (10.000 per pack) 2
6 Hex. Flanged Screw M6 X 20 2
7 Hex. Flanged Screw M6 X 20 1
8 HEX. FLANGED SCREW M6 X 20 (10.000 per pack) 4
9 HEX. FLANGE SCREW M6 X 70 12
10 HEX. FLANGED SCREW M8 X 20 (10.000 per pack) 0
11 Hex. Flanged Screw M8 X 25 4
12 Flat Washer 2
13 FLAT WASHER (10.000 per pack) 2
14 Hex. Flanged Elastic Nut M6 4
15 Hex. Elastic Flanged Nut M6 20
16 Hex. Flanged Elastic Nut M8 6
17 Flat Washer 6 mm 17
18 Flat Washer, Stainless 0
19 Flat Washer 8 mm 4
20 HEX. FLANGED SCREW K50 X 16 (5.000 per pack) 1
21 HEX. FLANGED SCREW K50 X 20 (5.000 per pack) 1
22 Panel Nut M6 X 1.0 3
24 PANEL NUT M5 X 0.8 (10.000 per pack) 2
25 TORX SCREW M6 X 25 (2.000 per pack) 2
26 TORX SCREW M6 X 20 Model-RT STD 0
27 TORX SCREW M5 X 20 (10.000 per pack) 2
28 Torx Screw M5 X 14 0
29 TRUSS HEAD TORX SCREW K50 X 16 (5.000 per pack) 0
30 TORX SCREW M6 X 25 2
31 TRUSS HEAD TORX SCREW K50 X 20 2
32 SOCKET HEAD SCREW M6 X 20 17
33 Torx Truss Screw M6 X 20 2
34 Torx Truss Screw M6 X 30 3
35 WASHER M5 (10.000 per pack) 1
36 FLAT WASHER (3.000 per pack) 2
37 Tuflok Plastic Rivet 0
38 RUBBER COVER 4
39 UPPER SEAL 1
40 BOTTOM SEAL 1
41 ANNEAU ETANCHE *SEAL-TRAY 0
42 INSERT Except XMR 0
44 Rubber Bumper 1
47 CAP (10.000 per pack) 3
49 RONDELLE *WASHER (25.000 per pack) 0
50 RONDELLE *WASHER (25.000 per pack) 9
51 Edge Clip 1
52 RONDELLE *GROMMET 1
54 GROMMET 4
57 Oblong Grommet 4
58 SUPPORT PLATE 2
59 RH SIDE CONSOLE 1
60 RH FRONT FLOOR 1
61 RH UNDER SEAT PLATE 1
62 STORAGE BIN Package STD - DPS 1
62 STORAGE BIN Package LTD - XT - XTP 1
63 PASSENGER HANDLE 1
64 DASHBOARD ASS Y 1
65 LUGGAGE COVER KIT 1
66 CENTRAL DASHBOARD ASS Y Except Package LTD 1
67 CONSOLE LAT. *SIDE DASH Except Package LTD 1
68 LH LOWER FLOOR 1
69 RH LOWER FLOOR 1
70 LH FLOOR SUPPORT 1
71 RH FLOOR SUPPORT 1
72 LATCH 1
75 BUCKLE 1
78 CUP RETAINER 4
79 TRIM GLOVE BOX 1
81 LH UPPER LATERAL CONSOLE FOAM 1
82 LH LOWER LATERAL CONSOLE FOAM 1
83 RH LATERAL CONSOLE FOAM 1
85 CONNECTOR TUBE 1
96 NEOPRENE SEAL (8.000 per pack) 0
98 RH LATERAL CONSOLE FOAM 1
99 RH LATERAL CONSOLE FOAM 1
103 FRONT CONSOLE COVER KIT 1
104 REAR CENTRAL CONSOLE 1
105 LH REAR CONSOLE PANEL 1
106 RH REAR CONSOLE PANEL 1
107 LH REAR BOTTOM PAN 1
108 LH REAR UPPER FLOOR COVER 1
109 SEAT COVER 1
110 LH MID FLOOR 1
111 RH LOWER REAR FLOOR 1
112 LH REAR SAFETY NET 1
117 RH REAR SAFETY NET 1
122 SHIFT LEVER INDICATOR 1
123 SUPPORT PLATE 1
124 CUP HOLDER 1
125 REAR CONSOLE COVER KIT 1
126 POIGNEE *HANDLE 2
127 LH SIDE CONSOLE 1
128 ACOUSTIC FOAM 1
129 ACOUSTIC FOAM 1
130 ACOUSTIC FOAM 1
131 ACOUSTIC FOAM 1
132 ACOUSTIC FOAM 1
133 ACOUSTIC FOAM 1
134 UNDER SEAT COVER 1
135 INSERT Except Package LTD 0
137 BATTERY COVER 1
138 HEAT SHIELD 1
140 LH SAFETY NET 1
144 RH SAFETY NET 1
149 LH FRONT UPPER FLOOR 1
150 GRILL 1
151 GRILL 1
152 HEAT SHIELD 1
153 HEAT SHIELD 1
154 HEAT SHIELD 1
155 DEFLECTOR Package- DPS XT XT-P 1
156 FRONT SIDE DASH PANEL 1
157 ACOUSTIC FOAM 1
158 ACOUSTIC FOAM 1
159 ACOUSTIC FOAM 1
160 ACOUSTIC FOAM 1
161 ACOUSTIC FOAM 1
162 ACOUSTIC FOAM 1
163 ACOUSTIC FOAM 1
164 ACOUSTIC FOAM 1
165 RH REAR DEFLECTOR 1
166 LH REAR DEFLECTOR 1
167 Push Nut 1
