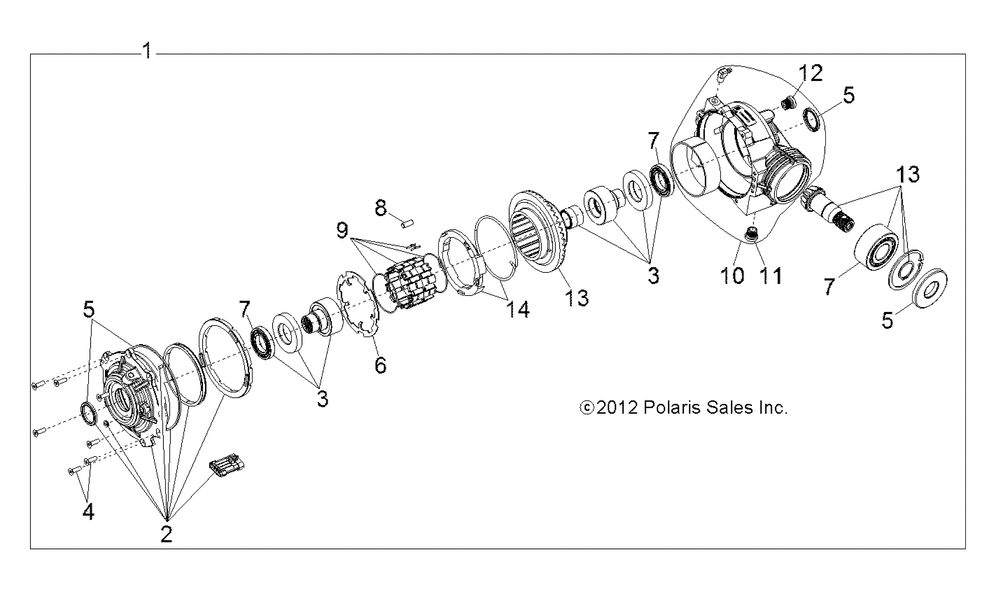

DRIVE TRAIN FRONT GEARCASE INTERNALS 1333104 - R13WH90DG (49RGRTRANSINTL13900XP)

Polaris R13WH90DG RANGER CREW 900 DIESEL R13WH90DG RANGER CREW 900 DIESEL DRIVE TRAIN FRONT GEARCASE INTERNALS 1333104 - R13WH90DG (49RGRTRANSINTL13900XP)

№	Наименование	Кол-во
1	ASM-GEARCASEFRONT 12 POCKET	1
2	ASM-COVEROUTPUT W/O-RING DOWEL PIN OIL SEAL COVER CONNECTOR ASSY BACKLASH SPACER 4WD COIL GROMMET & HEAT SHRINK TUBING	1
3	KIT-HUBASM W/BUSHING HUB SUB. ASSY & NYLON SPACER	1
4	KIT-FASTENER W/ALL FASTENERS	1
5	KIT-SEAL REPAIR W/ALL SEALS	1
6	PLATE-ARMATURE	1
7	BEARING-PINION5306 W/ALL BEARINGS	1
8	KIT-ROLLER (20) [Incl. Complete Roll Set] (20 per pack)	1
9	ASM-ROLL CAGEZN W/ROLL CAGE & SPRING WIRE FOR H-CLIP	1
9	ASM-ROLL CAGEAL(T) HIGH PERFORMANCE ACCESSORY W/CLIP SET	1
10	KIT-GEARCASE ASM W/HOSE FITTING BUSHING SEAL GEARCASE FILL PLUG & DRAIN PLUG	1
11	DRAIN PLUG(6203-95-010)	1
12	FILL PLUG(1300-04-001-T)	1
13	KIT-RING AND PINION W/RING GEAR ASSY PINION BEARING INTERNAL RING & SHAFT RING	1
14	KIT-SPRING W/TORSION SPRING & SPRINT RETAINER ASSY	1
