| № | Наименование | Примечание | Кол-во |
|---|---|---|---|

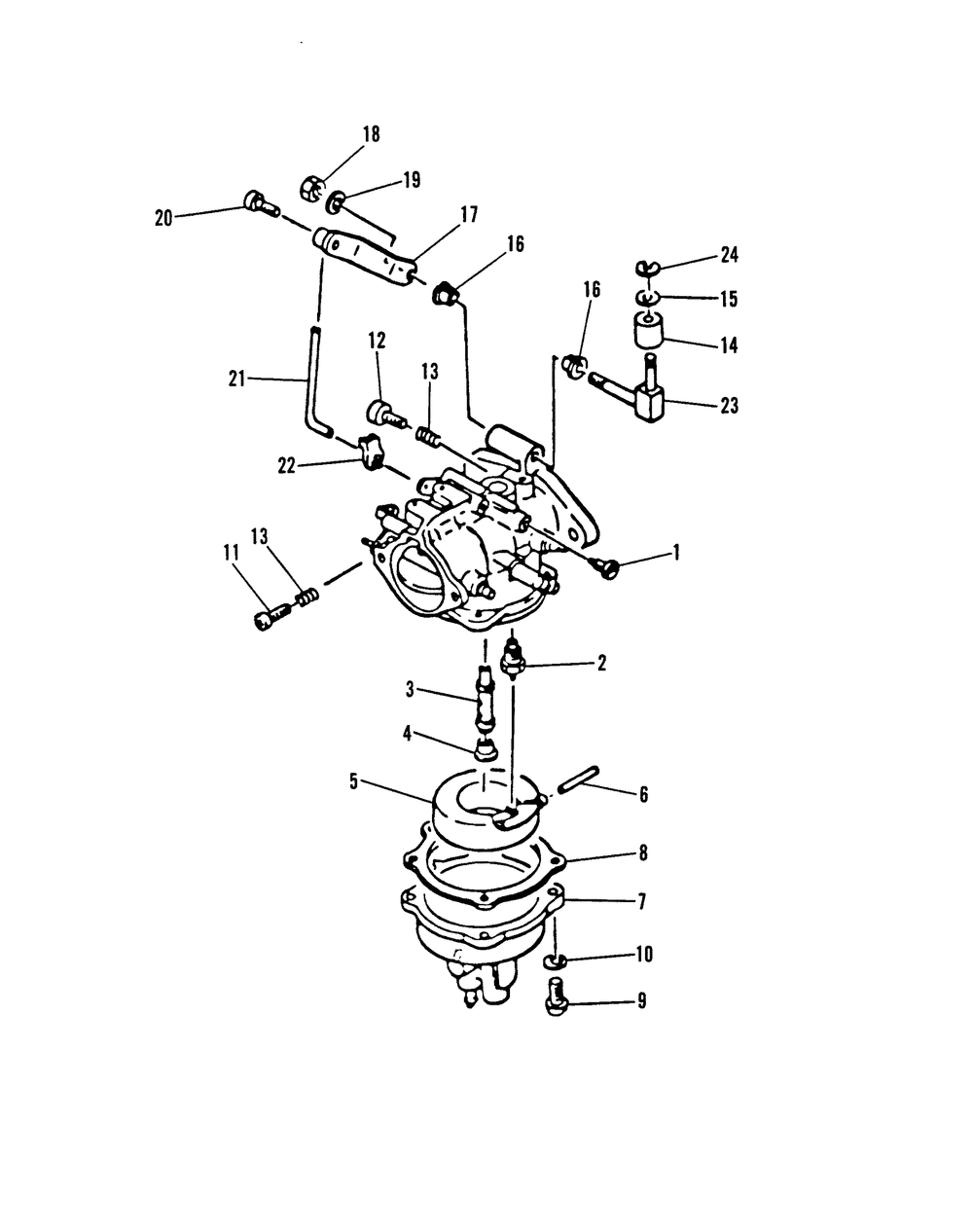

| 0-1 | CARBURETOR | 1 | |
| 1 | JET SERIAL 00000000-00002350 | 1 | |
| 2 | INLET VALVE&SEAT | 1 | |
| 3 | MAIN NOZZLE | 1 | |
| 4 | JET (SERIAL 00019911-09999999) | 1 | |
| 5 | FLOAT | 1 | |
| 6 | PIN | 1 | |
| 7 | FLOAT BOWL SERIAL 00002351-09999999 | 1 | |
| 8 | GASKET | 1 | |
| 9 | SCREW @5 (5 per pack) | 4 | |
| 10 | LOCKWASHER @5 (5 per pack) | 4 | |
| 11 | SCREW @2 (2 per pack) | 1 | |
| 12 | SCREW | 1 | |
| 13 | SPRING @5 (5 per pack) | 2 | |
| 14 | BUSHING | 1 | |
| 15 | WASHER @5 (5 per pack) | 1 | |
| 16 | BUSHING @2 (2 per pack) | 2 | |
| 17 | LEVER | 1 | |
| 18 | NUT | 1 | |
| 19 | LOCKWASHER @5 SERIAL 00000000-00008215 (5 per pack) | 1 | |
| 20 | SCREW-SET SERIAL 00000000-00002350 | 1 | |
| 21 | LINK ROD | 1 | |
| 22 | ROD SNAP | 1 | |
| 23 | THROTTLE ARM | 1 | |
| 24 | REPAIR KIT-CARB REPLACEMENT PARTS | 1 | |
| 24 | SNAP RING @2 (2 per pack) | 1 |
