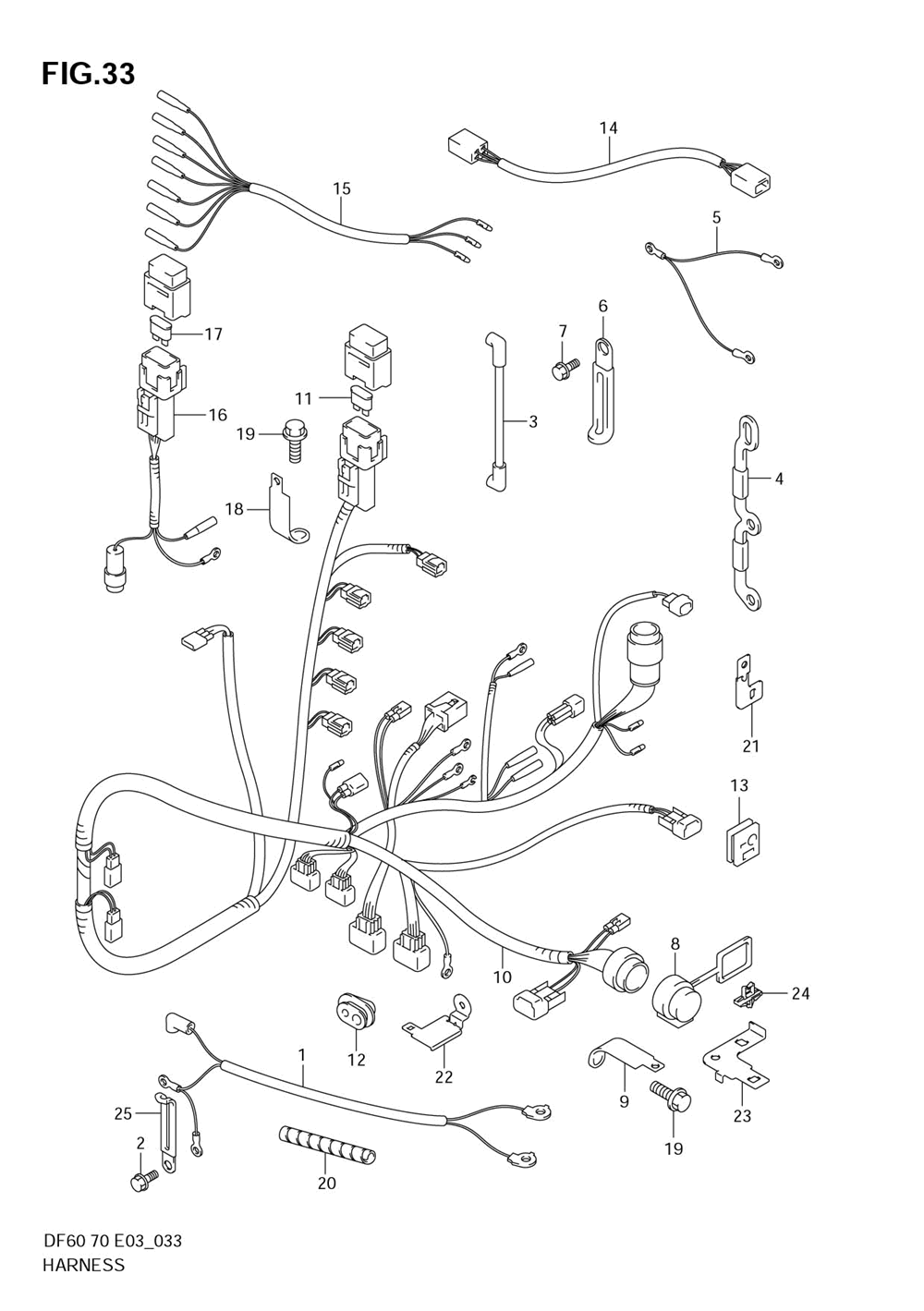

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1-1 | CABLE ASSYSTAR | 1 | |
| 1-2 | CABLE ASSYSTAR | 1 | |
| 2 | BOLT (NOT ILLUSTRATED) | 1 | |
| 3 | CABLE ASSYSTAR | 1 | |
| 4 | PLATEPTT RELAY | 1 | |
| 5 | CABLE ASSYTRIM | 1 | |
| 6-1 | CLAMP | 2 | |
| 6-2 | CLAMPL:97 | 1 | |
| 7-1 | PLUG | 2 | |
| 7-2 | BOLT | 2 | |
| 8 | CAPSERVICE CON (MODEL:02~07) | 1 | |
| 9 | Детать | 1 | |
| 10-1 | HARNESSWIRING | 1 | |
| 10-2 | HARNESS ASSY W | 1 | |
| 10-3 | HARNESS ASSYWI | 1 | |
| 10-4 | HARNESS ASSYWI | 1 | |
| 10-5 | HARNESS ASSYWI | 1 | |
| 10-6 | HARNESS ASSYWI (MODEL:0607->36610-99EH0) | 1 | |
| 11-1 | FUSE 15A | 1 | |
| 11-2 | FUSE30A | 1 | |
| 12-1 | GROMMETPTT CAB | 1 | |
| 12-2 | GROMMETPTT CAB | 1 | |
| 13-1 | GROMMETCABLE | 1 | |
| 13-2 | GROMMET CABLE (DF60TH70THMODEL:05~07) | 1 | |
| 14 | MONITOR HARNESS | 1 | |
| 15 | WIRE ASSYINSTR (MODEL:02~04) | 1 | |
| 16 | CASE ASSYFUSE( | 1 | |
| 17 | .FUSE (30A) | 1 | |
| 20 | Детать | 1 | |
| 21 | BRACKETJOINT C (MODEL:04~) | 1 | |
| 22 | Детать | 1 | |
| 23 | Детать | 1 | |
| 25 | CLAMPL:82 | 1 |
