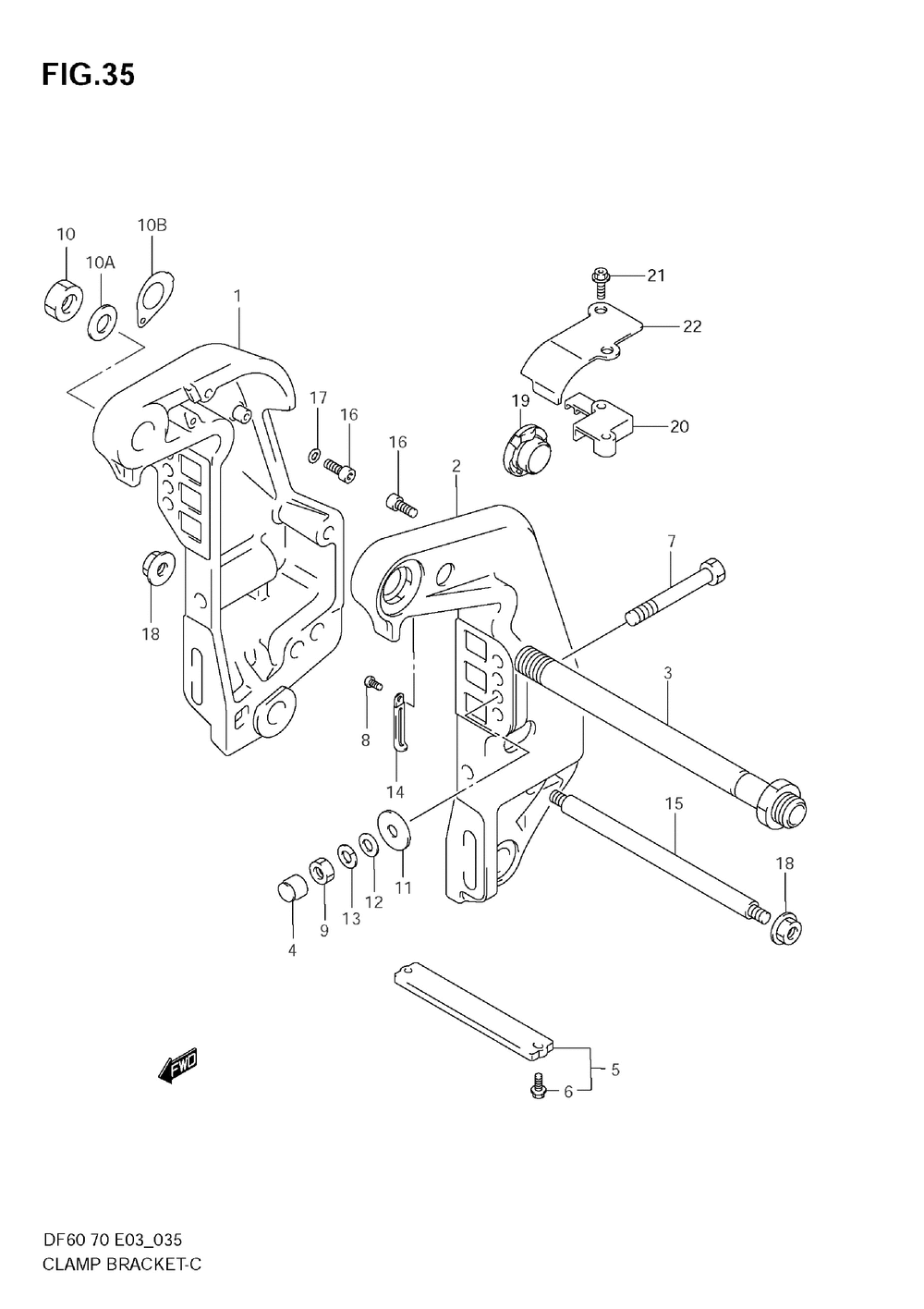

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1-1 | BRACKETCLAMP S | 1 | |
| 1-2 | Детать | 1 | |
| 1-3 | (DF60:151144~MODEL:05DF70:151793~MODEL:05) | 1 | |
| 2-1 | BRACKETCLAMP P | 1 | |
| 2-2 | Детать | 1 | |
| 2-3 | BRACKETCLAMP P (DF60:151144~MODEL:02DF70:151793~MODEL:02) | 1 | |
| 2-4 | BRACKETCLAMP P | 1 | |
| 3-1 | SHAFTCLAMP BRA | 1 | |
| 3-2 | SHAFT COMPCLAM (MODEL:0405) | 1 | |
| 3-4 | SHAFTCLAMP BRA | 1 | |
| 4 | CAP TRANSOM BOL | 4 | |
| 5 | ANODE SET | 1 | |
| 6 | BOLT | 2 | |
| 7-1 | BOLT12X115PIT (OPT USED W/09159-12014 ) | 4 | |
| 7-3 | BOLT12X150PIT (->09100-12090 USED W/09159-12014 ) | 1 | |
| 8 | SCREW 6X10 (SUS | 1 | |
| 9-1 | NUT | 4 | |
| 9-2 | NUT (W/TRANSOM(XX)) | 4 | |
| 10 | NUT | 1 | |
| 10A | WASHER | 1 | |
| 10B | WASHER CLAMP B | 1 | |
| 11 | WASHER (12.5X35X3.2) | 4 | |
| 12-1 | WASHER | 4 | |
| 12-2 | WASHER12.5X22X | 4 | |
| 13 | WASHER (DF140T:~511172 DF140Z:~510165 ) | 4 | |
| 14 | CLAMP | 1 | |
| 15-1 | PINTILT LOCK | 1 | |
| 15-2 | PINTILT LOCK | 1 | |
| 16 | BOLT | 2 | |
| 17 | WASHER (<-09160-10082) | 2 | |
| 18-1 | NUT 14MM | 2 | |
| 19 | CAM ASSYTILT L (MODEL:04~) | 1 | |
| 20 | HOLDERTILT LIM | 1 | |
| 21-1 | BOLT 6X20 | 2 | |
| 21-2 | BOLTTILT LIMIT | 2 | |
| 22 | COVERTILT LIMI | 1 |
