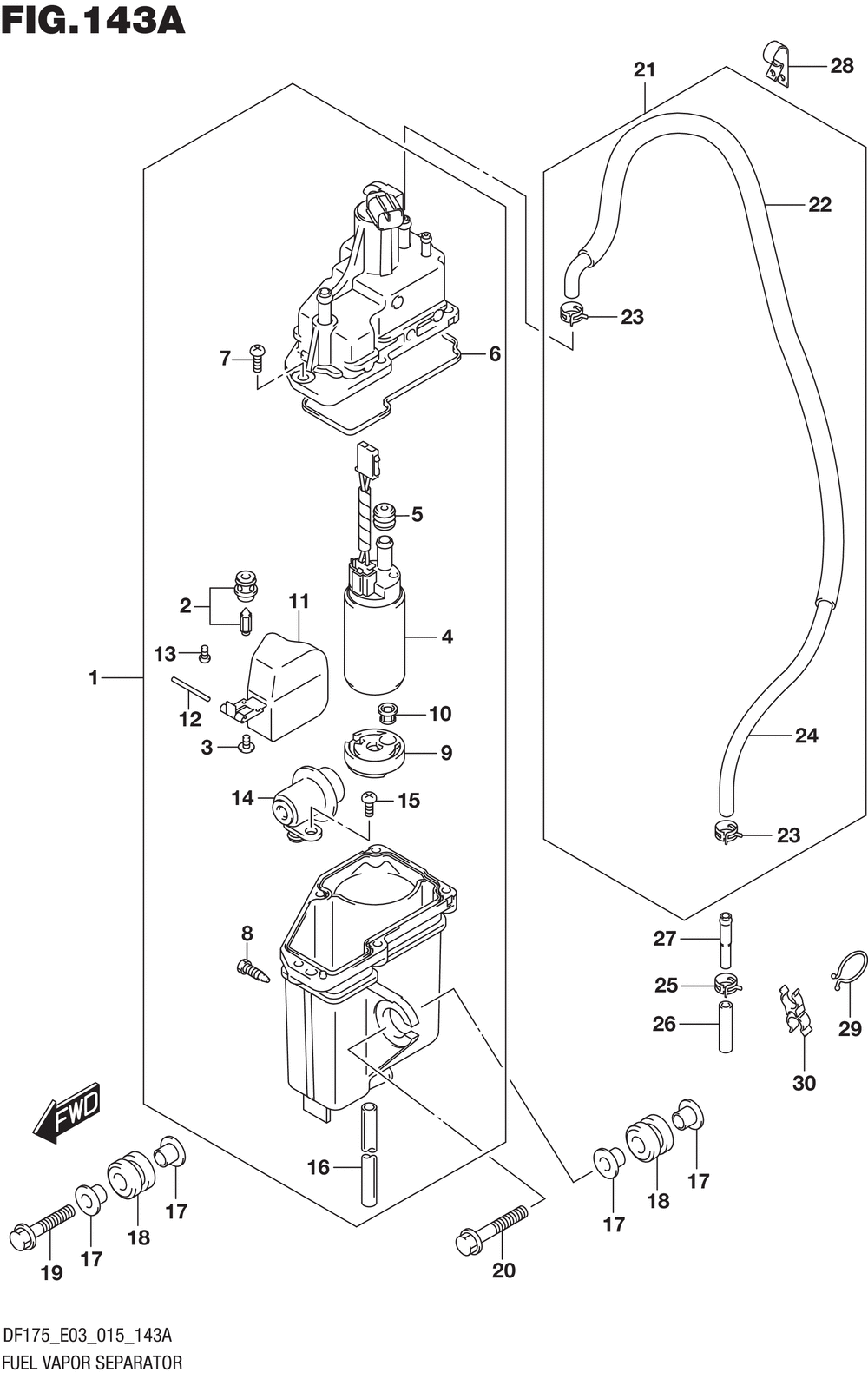

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | SEPARATOR ASSY | 1 | |
| 2 | VALVENEEDLE | 1 | |
| 3 | SCREW | 1 | |
| 4 | PUMP ASSYFUEL( | 1 | |
| 5 | BUSHFUEL PUMP | 1 | |
| 6 | SEAL | 1 | |
| 7 | SCREW(L:15) | 5 | |
| 8 | SCREWDRAIN | 1 | |
| 9 | SPACERFUEL PUM | 1 | |
| 10 | FILTER | 1 | |
| 11 | FLOAT | 1 | |
| 12 | FLOAT PIN | 1 | |
| 13 | ВИНТ | 1 | |
| 14 | REGULATORFUEL | 1 | |
| 15 | 5 X 10 CROSS SC | 1 | |
| 16 | HOSE | 1 | |
| 17 | WASHER OIL TAN | 6 | |
| 18 | CUSHIONFUEL VA | 3 | |
| 19 | BOLT | 1 | |
| 20 | BOLT 8 X 40 | 2 | |
| 21 | HOSEEVAPORATIO | 1 | |
| 22 | Детать | 1 | |
| 23 | CLIP | 2 | |
| 24 | HOSE 5X8.2X2000 | 1 | |
| 26 | HOSE5X8.2X600 (L:600->250) | 1 | |
| 27 | UNION | 1 | |
| 28 | CLAMP | 1 | |
| 29 | CLAMP | 1 | |
| 30 | CLAMP | 1 | |
| 31 | HOSE SETEVAPOR (OPTNOT ILLUSTRATED) | 1 |
