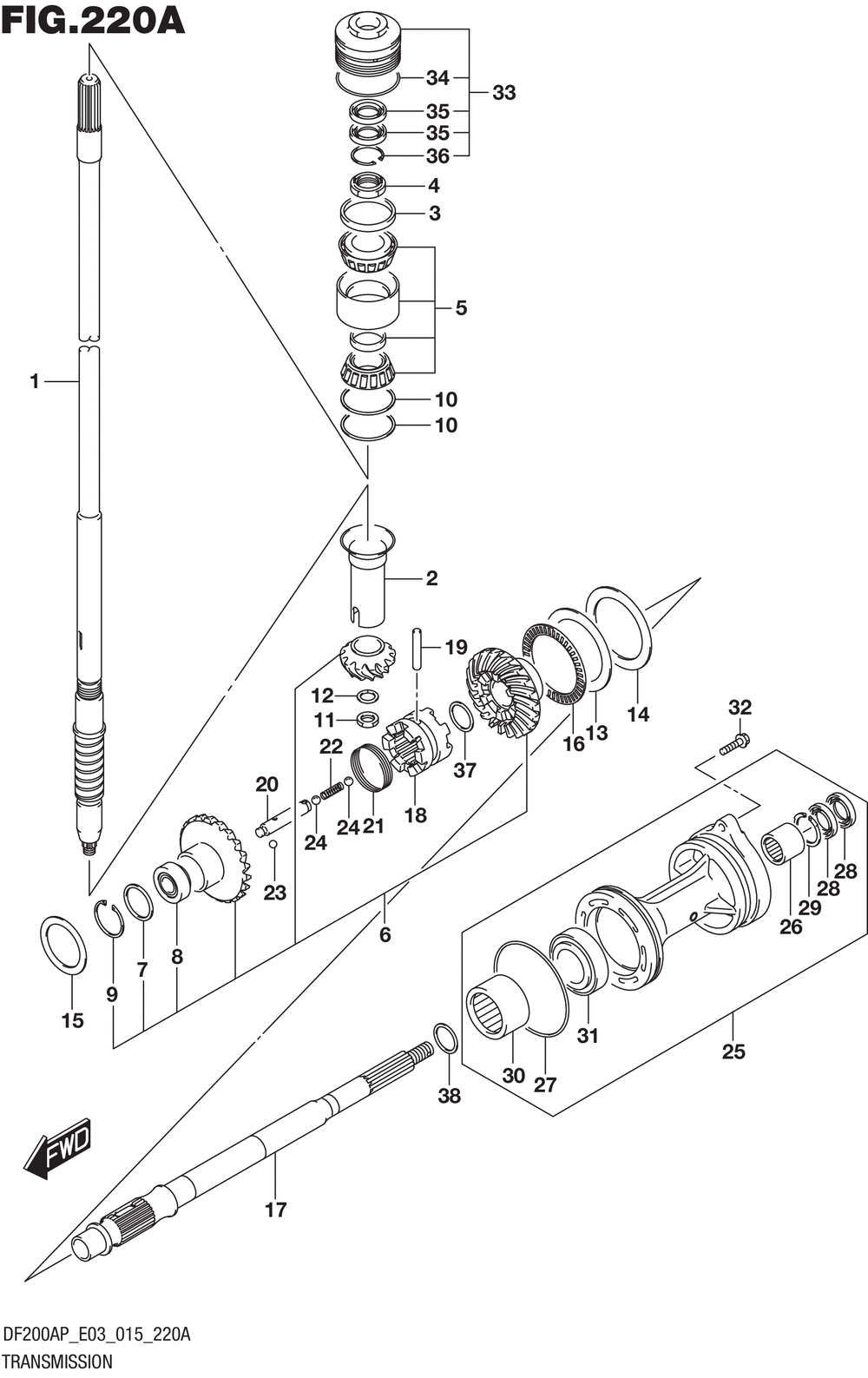

TRANSMISSION

SUZUKI MARINE DF200AP DF200AP TRANSMISSION

№	Наименование	Кол-во
1-1	SHAFTDRIVE(L) (W/TRANSOM(L))	1
1-2	SHAFTDRIVE (X) (W/TRANSOM(X))	1
2	COLLARDRIVE SH	1
3	SPACERDRIVE SF	1
4	NUTDRIVE SFT B	1
5	BEARINGDRIVE S	1
7	WASHER(41X52X3)	1
8	BEARING(25X52X1	1
9	CIRCLIP	1
10-1	SHIMDRIVE SHAF	1
10-10	SHIMDRIVE SHAF	1
10-2	SHIMDRIVE SHAF	1
10-3	SHIMDRIVE SHAF	1
10-4	SHIMDRIVE SHAF	1
10-5	SHIMDRIVE SHAF	1
10-6	SHIMDRIVE SHAF	1
10-7	SHIMDRIVE SHAF	1
10-8	SHIMDRIVE SHAF	1
10-9	SHIMDRIVE SHAF	1
11	NUTPINION	1
12	SHIM	1
13	WASHERTHRUST F (FWD GEAR)	1
14-1	SHIMFORWARD GE (FWD GEAR)	1
14-10	SHIMFORWARD GE (FWD GEAR)	1
14-11	SHIMFORWARD GE (FWD GEAR)	1
14-2	SHIMFORWARD GE (FWD GEAR)	1
14-3	SHIMFORWARD GE (FWD GEAR)	1
14-4	SHIMFORWARD GE (FWD GEAR)	1
14-5	SHIMFORWARD GE (FWD GEAR)	1
14-6	SHIMFORWARD GE (FWD GEAR)	1
14-7	SHIMFORWARD GE (FWD GEAR)	1
14-8	SHIMFORWARD GE (FWD GEAR)	1
14-9	SHIMFORWARD GE (FWD GEAR)	1
15-1	SHIM(65X80X0.5) (FWD GEAR)	1
15-10	SHIM(65X80X0.95 (FWD GEAR)	1
15-2	SHIM(65X80X0.55 (FWD GEAR)	1
15-3	SHIM(65X80X0.6) (FWD GEAR)	1
15-4	SHIM(65X80X0.65 (FWD GEAR)	1
15-5	SHIM(65X80X0.7) (FWD GEAR)	1
15-6	SHIM(65X80X0.75 (FWD GEAR)	1
15-7	SHIM(65X80X0.8) (FWD GEAR)	1
15-8	SHIM(65X80X0.85 (FWD GEAR)	1
15-9	SHIM(65X80X0.9) (FWD GEAR)	1
16	BEARINGTHRUST	1
17	SHAFT PROPELLE	1
18	SHIFTER CLUTCH	1
19	PIN	1
20	PINCONNECTOR	1
21	SPRING	1
22	SPRINGDETENT	1
23	STEEL BALL 7/32	2
24	BALL	2
25-1	HOUSING SFT BR	1
25-2	HOUSING SFT BR	1
26	BEARING(30X40X2	1
27	O-RINGPROP(ID:	1
28	OIL SEAL 30X45X	2
29	CIRCLIP DR CUP	1
30	BEARINGFORWARD	1
31	BEARING32X58X1	1
32	BOLT	2
33	HOUSINGDRIVE S	1
34	O-RING(ID:65.4	1
35	OIL SEAL 24X40X	2
37	(REV GEAR)	1
38-1	SHIM(32X40X0.65	1
38-10	SHIM(32X40X1.05	1
38-11	SHIM(32X40X1.1)	1
38-12	SHIM(32X40X1.15	1
38-13	SHIM(32X40C1.2)	1
38-14	SHIM(32X40X1.25	1
38-15	SHIM(32X40X1.3)	1
38-2	SHIM(32X40X0.6)	1
38-3	SHIM(32X40X0.7)	1
38-4	SHIM(32X40X0.75	1
38-5	SHIM(21X40X0.8)	1
38-6	SHIM(32X40X0.85	1
38-7	SHIM(32X40X0.9)	1
38-8	SHIM(32X40X0.95	1
38-9	SHIM(32X40X1)	1
