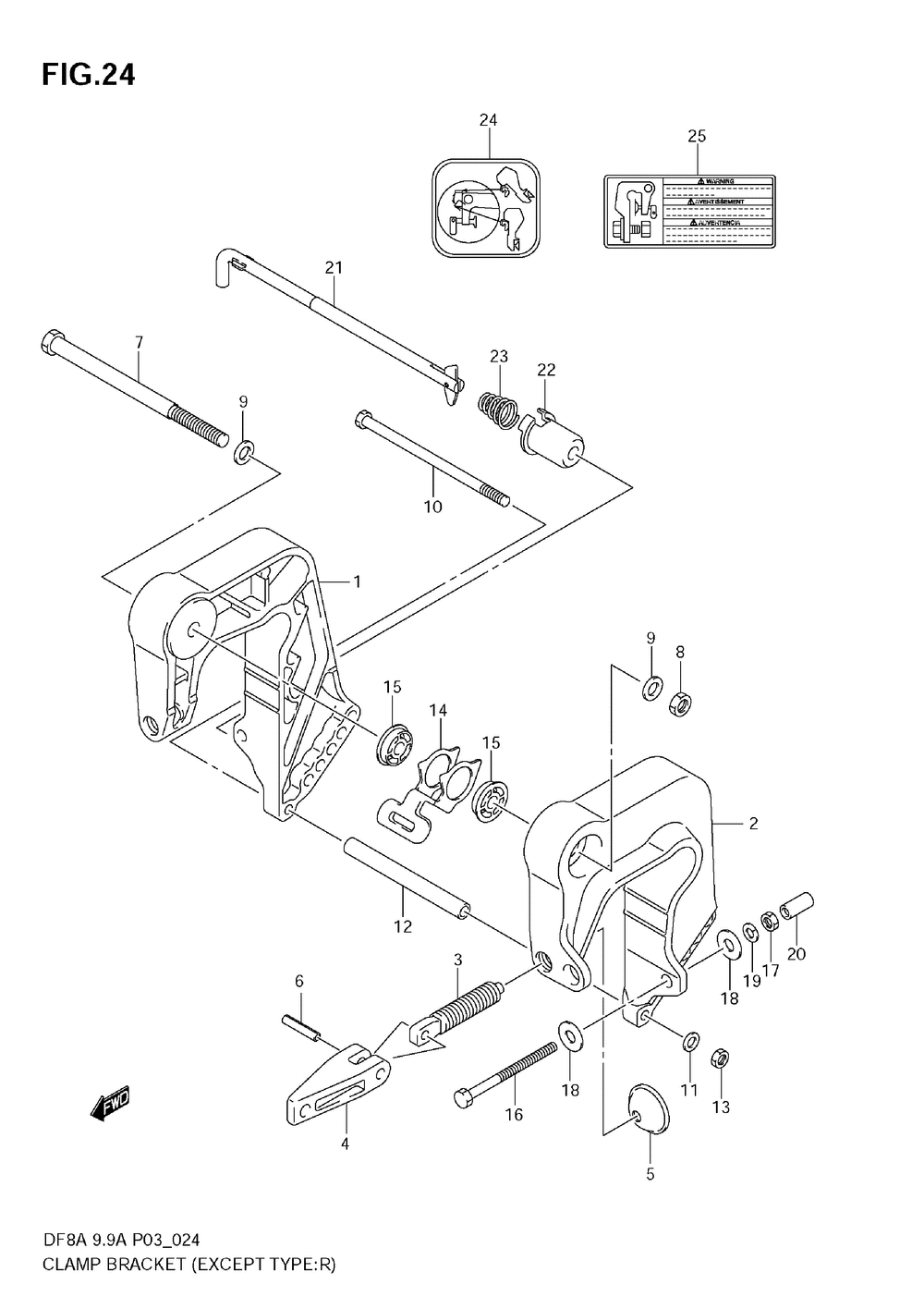

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | BRACKETCLAMP S | 1 | |
| 2 | BRACKETCLAMP P | 1 | |
| 3-1 | SCREWCLAMP | 2 | |
| 3-2 | SCREWCLAMP | 2 | |
| 4 | HANDLECLAMP | 2 | |
| 5 | PLATECLAMP | 2 | |
| 6 | PIN | 2 | |
| 7 | BOLT10X146 | 1 | |
| 8 | NUT | 1 | |
| 9 | WASHER (10.5X19X2) | 2 | |
| 10 | BOLT6X140 | 1 | |
| 11 | WASHER | 1 | |
| 12 | SPACER6.5X10.5 | 1 | |
| 13 | NUT | 1 | |
| 14 | LEVERRELEASE | 1 | |
| 15 | BUSH | 2 | |
| 16 | BOLT 8 X 90 | 2 | |
| 17 | NUT | 2 | |
| 18 | WASHER | 4 | |
| 19 | WASHER (<-09162-08007) | 2 | |
| 20 | CAP TRANSOM BOL | 2 | |
| 21 | PINTILT LOCK (MODEL:10~) | 1 | |
| 22 | STOPPERTILT LO | 1 | |
| 23 | SPRING | 1 | |
| 24 | MARKREVERSE LO | 1 | |
| 25 | Деталь | 1 | |
| 26-1 | SCREW SETCLAMP (OPT NOT SHOWN ) | 2 | |
| 26-2 | SCREW SETCLAMP (OPT) | 2 |
