| № | Наименование | Примечание | Кол-во |
|---|---|---|---|

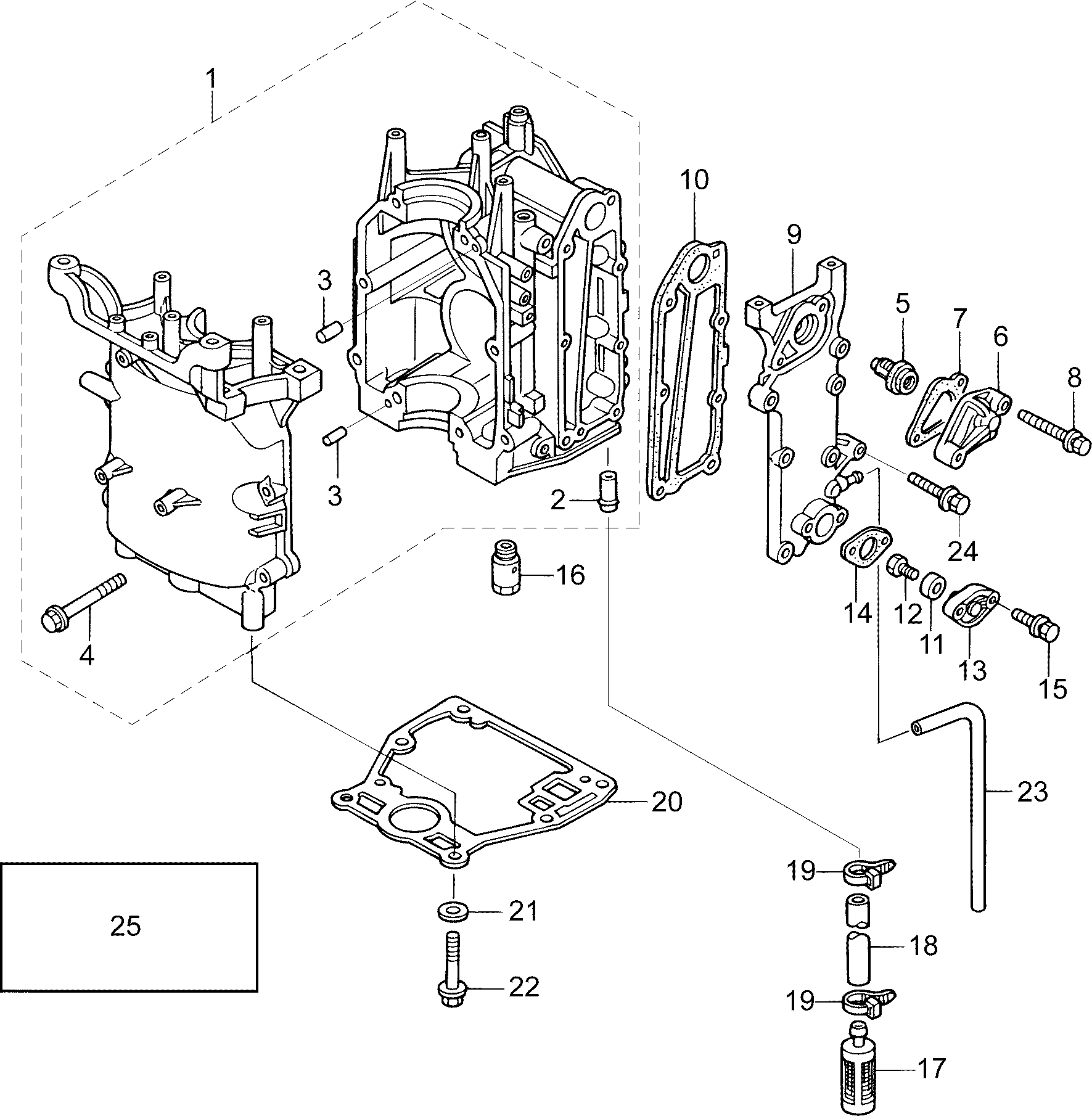

| 1 | CYLINDER & CRANKCASE ASSEMBLY | 1 | |
| 2 | * NIPPLE 10-32 | 1 | |
| 3 | * DOWEL PIN 6-12 | 2 | |
| 4 | * CYLINDER HEAD BOLT 8-50 | 8 | |
| 5 | THERMOSTAT | 1 | |
| 5 | THERMOSTAT | 1 | |
| 6 | THERMOSTAT CAP | 1 | |
| 7 | THERMOSTAT CAP GASKET | 1 | |
| 8 | BOLT | 2 | |
| 9 | EXHAUST COVER (OUTER) | 1 | |
| 10 | EXHAUST COVER GASKET | 1 | |
| 11 | ANODE | 1 | |
| 12 | BOLT | 1 | |
| 13 | ANODE PLUG | 1 | |
| 14 | GASKET | 1 | |
| 15 | BOLT | 2 | |
| 16 | PLUNGER ASSEMBLY | 1 | |
| 17 | OIL STRAINER ASSEMBLY | 1 | |
| 19 | BAND LEAD WIRE 158 | 2 | |
| 20 | ENGINE BASEMENT GASKET | 1 | |
| 21 | WASHER | 6 | |
| 22 | BOLT 8-35 | 6 | |
| 24 | BOLT | 9 | |
| 25 | POWER HEAD GASKET SET | 1 |
