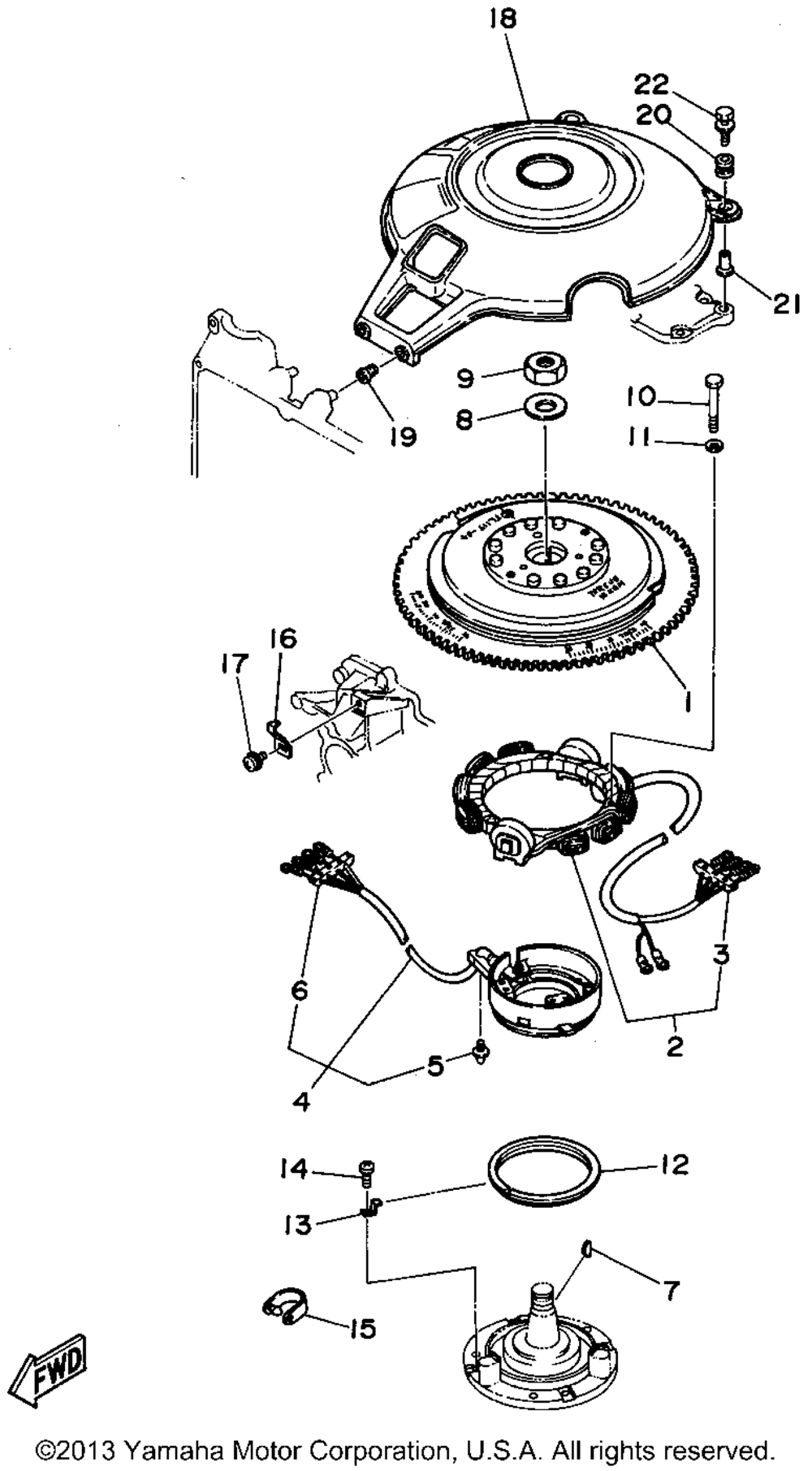

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | ROTOR ASSY | 1 | |
| 2 | STATOR ASY | 1 | |
| 3 | GROMMET | 1 | |
| 4 | COIL PULSER | 1 | |
| 5 | JOINTBALL | 1 | |
| 7 | KEYWOODRUFF | 1 | |
| 8 | WASHER PLATE | 1 | |
| 9 | NUT | 1 | |
| 10 | BOLTW WASH (97313-06055-00) | 3 | |
| 11 | WASHER (5 per pack) | 3 | |
| 12 | RETAINERMAG.BASE | 1 | |
| 13 | RETAINERMAG.BASE | 4 | |
| 14 | SCREWPAN HEAD | 4 | |
| 15 | CLAMP | 1 | |
| 16 | PLATETIMING | 1 | |
| 17 | SCREW WITH WASHER | 1 | |
| 18 | COVERFLYWHEEL | 1 | |
| 19 | DAMPERIGN COIL 150 JET DRIVE | 2 | |
| 20 | DAMPERIGN COIL | 2 | |
| 21 | COLLAR | 2 | |
| 22 | BOLTWITH WASHER | 2 |
