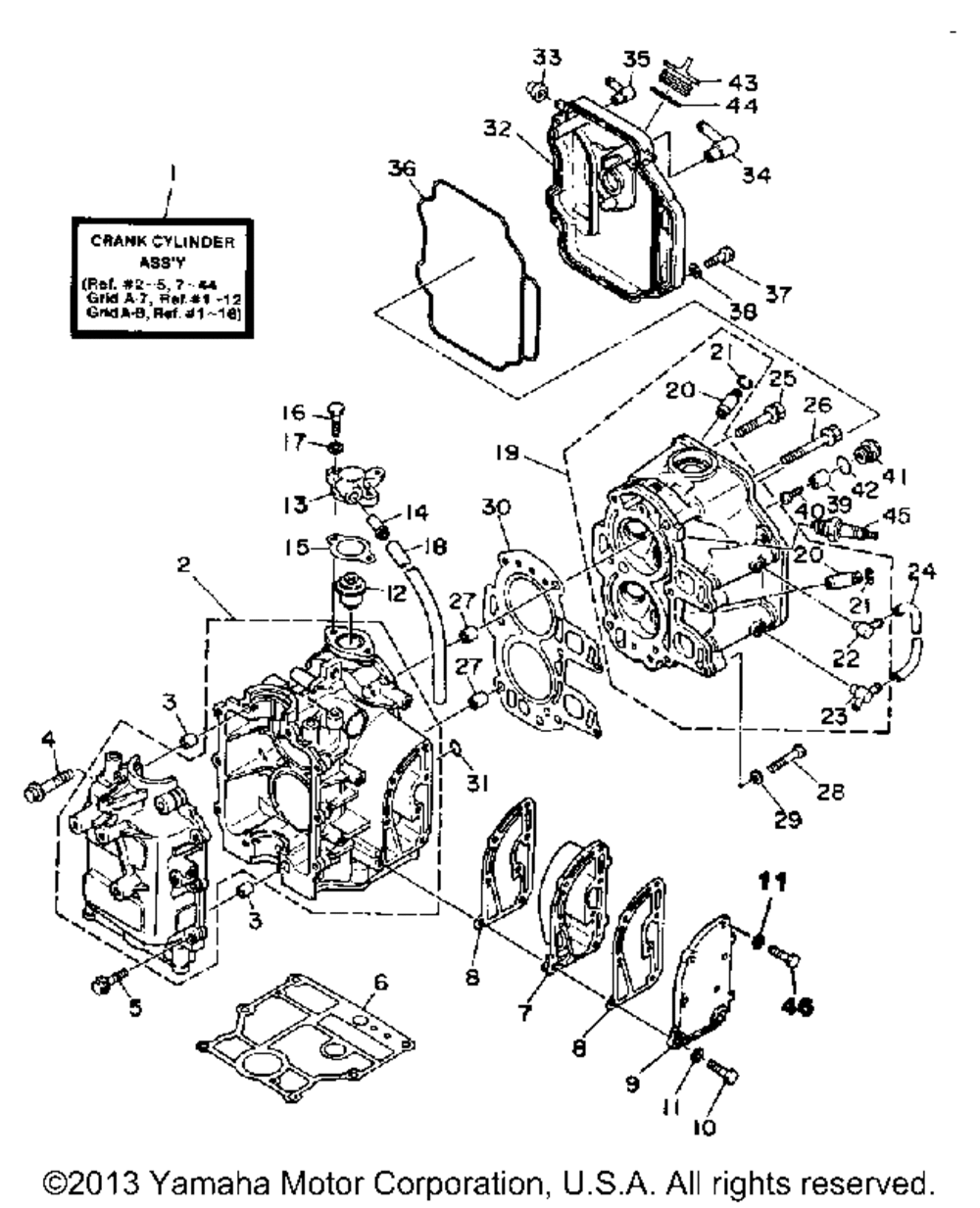

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CRANK-CYL.ASY. U.R.HARBOR WHITE | 1 | |
| 1 | CRANK-CYL.ASY. | 1 | |
| 2 | CRANKCASE ASY | 1 | |
| 3 | . .PIN DOWEL | 2 | |
| 4 | BOLT WITH WASHER | 4 | |
| 5 | BOLTWITH WASHER | 6 | |
| 6 | GASKETCYLINDER | 1 | |
| 7 | INNER COVER EXHAU | 1 | |
| 8 | GASKET EXHAUST | 2 | |
| 9 | OUTER COVER EXHAU SEE NOTE A | 1 | |
| 10 | BOLT | 2 | |
| 11 | WASHER (5 per pack) | 7 | |
| 12 | THERMOSTAT | 1 | |
| 13 | COVER THERMOSTAT | 1 | |
| 14 | PIPEJOINT 3 | 1 | |
| 15 | . .GASKET COVER | 1 | |
| 16 | BOLT(7U8) (5 per pack) | 2 | |
| 18 | HOSE (L410) | 1 | |
| 19 | HEAD CYLINDER 1 | 1 | |
| 20 | GUIDEINTAKE VALVE | 4 | |
| 21 | CIRCLIP | 4 | |
| 22 | NIPPLEHOSE | 1 | |
| 23 | NIPPLE HOSE SEE NOTE A | 1 | |
| 24 | PIPE 1 SEE NOTE A | 1 | |
| 25 | BOLTWASHER BASED | 3 | |
| 26 | BOLT FLANGE | 3 | |
| 28 | BOLT(3RV) | 2 | |
| 30 | GASKETCYL.HEAD | 1 | |
| 31 | O-RING (5 per pack) | 1 | |
| 32 | COVER CYLINDER HE | 1 | |
| 33 | GROMMET | 2 | |
| 34 | PIPE BREATHER | 1 | |
| 36 | SEALCYLINDER 2 | 1 | |
| 39 | ANODE | 1 | |
| 40 | SCREW PANHEAD | 1 | |
| 41 | PLUG BLIND | 1 | |
| 42 | O-RING (5 per pack) | 1 | |
| 43 | PLUGOIL | 1 | |
| 44 | O-RING | 1 | |
| 45 | CR6HS NGK SPLUG 10 P (NGK CR6HS) UR (10 per pack) | 2 | |
| 46 | BOLT | 5 |
