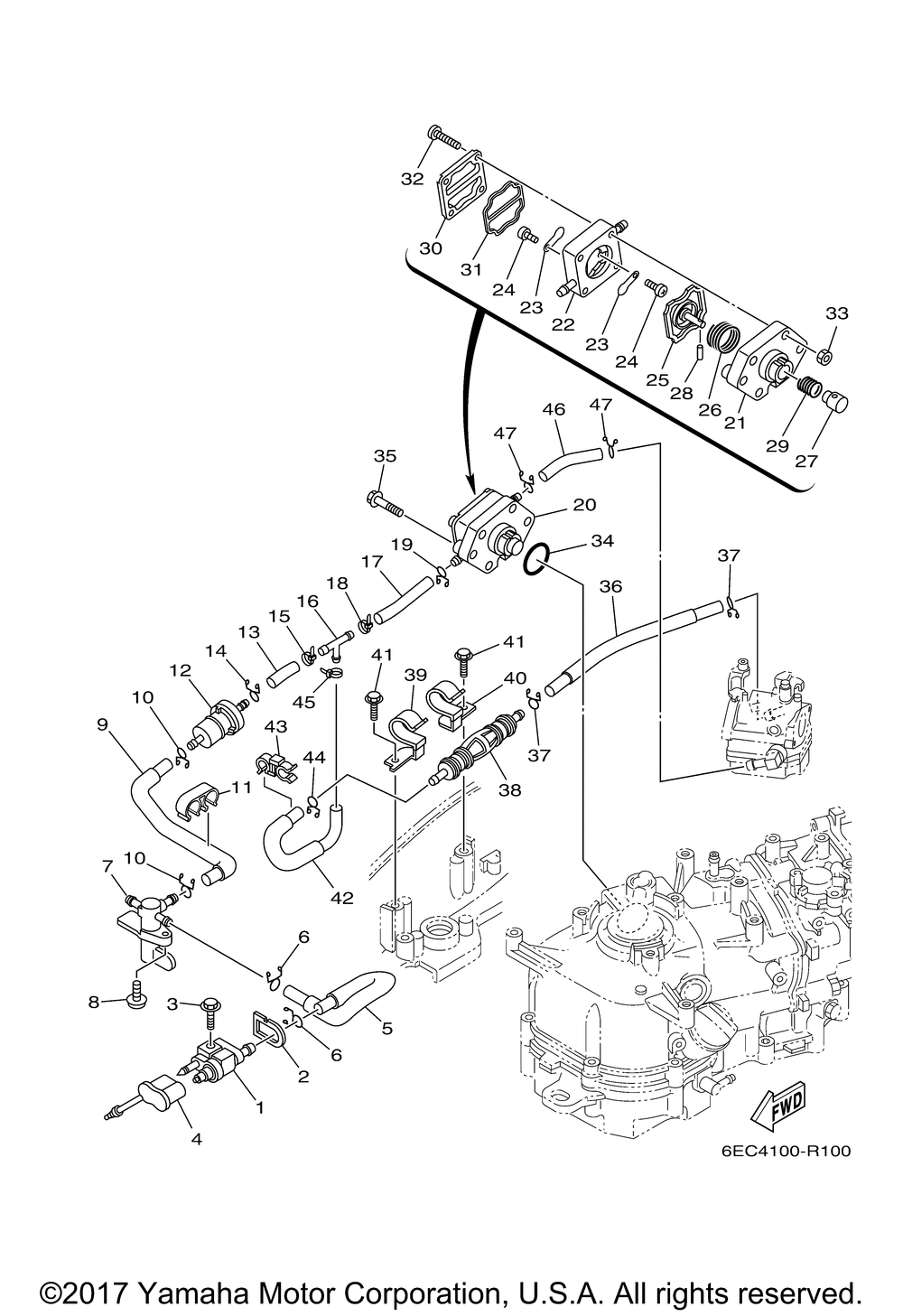

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FUEL PIPE JOINT COMP. 1 | 1 | |
| 2 | SEAL | 1 | |
| 3 | BOLT | 1 | |
| 4 | PROTECTOR1 | 1 | |
| 5 | PIPE 2 | 1 | |
| 6 | CLIP | 2 | |
| 7 | FUEL COCK ASSY 1 | 1 | |
| 8 | SCREWPAN HEAD W/W | 1 | |
| 9 | PIPE 3 | 1 | |
| 11 | CLAMP | 1 | |
| 12 | STRAINER 1 | 1 | |
| 13 | HOSE 3 | 1 | |
| 15 | CLAMP | 1 | |
| 16 | PIPEJOINT 4 | 1 | |
| 17 | HOSE 4 | 1 | |
| 20 | FUEL PUMP ASSY | 1 | |
| 21 | BODY 1 | 1 | |
| 22 | BODY 2 | 1 | |
| 23 | VALVECHECK | 2 | |
| 24 | . .SCREW PAN HEAD | 2 | |
| 25 | DIAPHRAGM | 1 | |
| 26 | SPRING DIAPHRAGM | 1 | |
| 27 | PLUNGER | 1 | |
| 28 | . .PIN | 1 | |
| 29 | SPRING | 1 | |
| 30 | BODY 3 | 1 | |
| 31 | . .DIAPHRAGM | 1 | |
| 32 | SCREW | 4 | |
| 33 | . . NUT | 4 | |
| 34 | O-RING | 1 | |
| 35 | BOLT WITH WASHER | 2 | |
| 36 | HOSE 2 | 1 | |
| 38 | PRIMER PUMP ASSY- 20 | 1 | |
| 39 | CLAMP 1 | 1 | |
| 40 | CLAMP 2 | 1 | |
| 41 | BOLT | 2 | |
| 42 | HOSE 1 | 1 | |
| 43 | . .CLAMP | 1 | |
| 46 | PIPE FUEL 1 | 1 |
