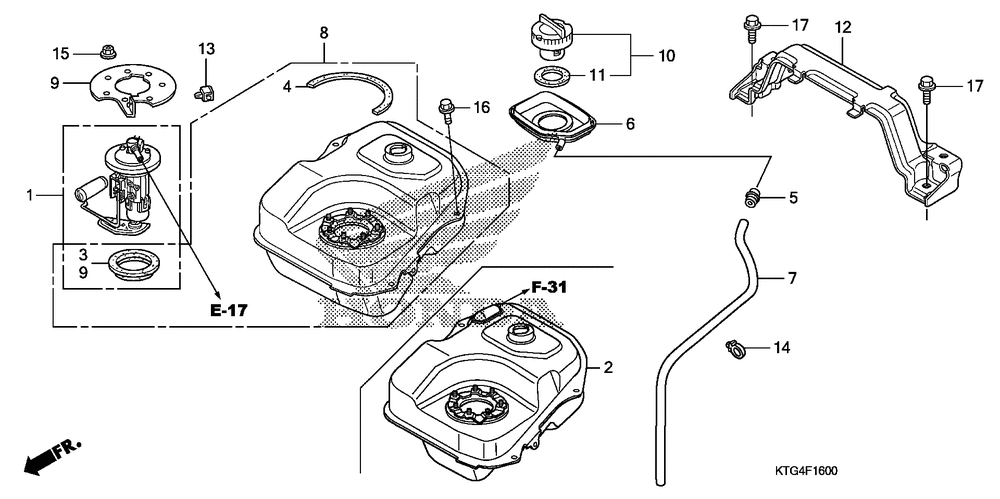

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 001 | PUMP UNIT FUEL | 1 | |
| 002 | TANK FUEL | 1 | |
| 003 | GASKET A FUEL PUMP | 1 | |
| 004 | SEAL FUEL TANK | 1 | |
| 005 | JOINT, FUEL TUBE | 1 | |
| 006 | TRAY FUEL | 1 | |
| 007 | TUBE DRAIN | 1 | |
| 008 | TANK SET FUEL | 1 | |
| 009 | PLATE SET | 1 | |
| 010 | CAP FUEL FILLER | 1 | |
| 010 | CAP FUEL FILLER | 1 | |
| 011 | GASKET, FUEL FILLER CAP | 1 | |
| 012 | BRACKET RR. CROSS | 1 | |
| 013 | CLIP, WIRE HARNESS | 1 | |
| 014 | CLIP, HARNESS | 1 | |
| 015 | Гайка | 7 | |
| 016 | BOLT, FLANGE (6X12) | 4 | |
| 017 | BOLT, FLANGE (8X16) | 2 |
