UNDERCARRIAGE AND TRACK

Корзина пуста

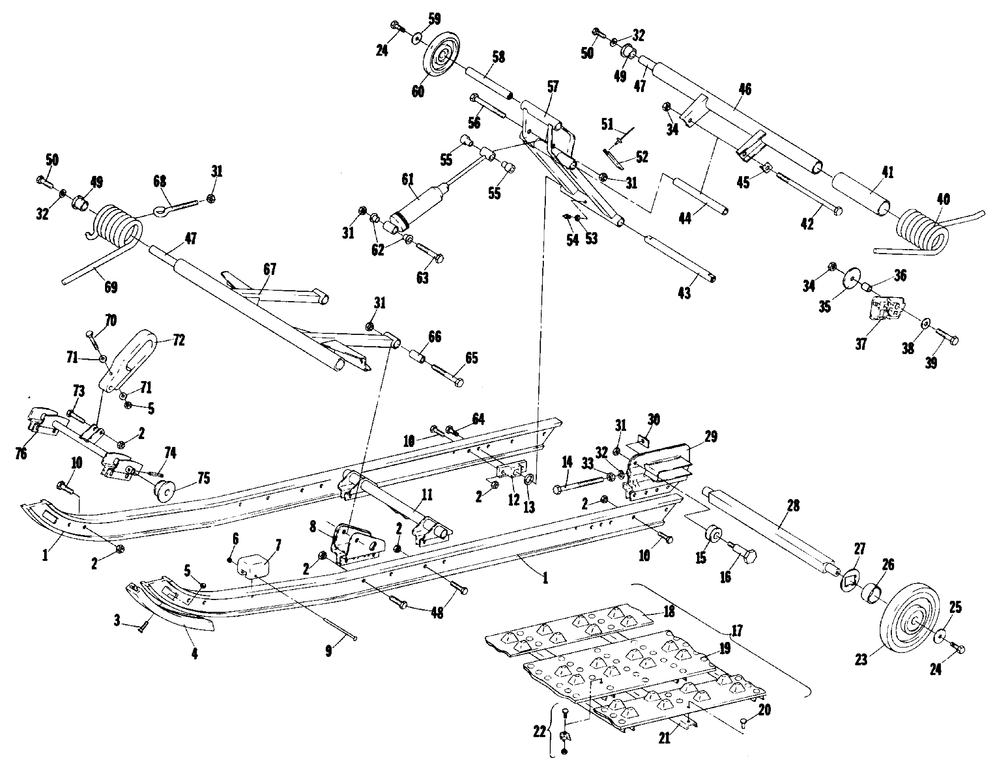

Arctic Cat PANTHER PANTHER UNDERCARRIAGE AND TRACK
UNDERCARRIAGE AND TRACK
№ Наименование Примечание Кол-во
2 NUTHEX LOCK-NYL 5/16-18 Z&Y (20 per pack) 21
3 SCRWMACHFH-1/4-20 X 1 1/4 (10 per pack) 2
4 WEARSTRIPSLIDE RAIL 2
5 NUTHEX LOCK-NYL 1/4-20 Z&Y (20 per pack) 3
6 NUTPUSH-.125 STUD Included in Kit (5 per pack) 4
7 PADSHOCK-RUBBER (4 per pack) 4
9 RIVETSOLID-1/8 X 1.50 (2 per pack) 4
10 SCREWCAP-HH 5/16-18 X.875 G5 Z&Y (10 per pack) 12
12 BRKTPIVOT-REAR ARM 2
13 WSHRFLAT 21/32X1-1/8X.048 Z&Y (10 per pack) 2
14 HHCS 3/8-16X4.0 THREADED GR5 Z&Y (4 per pack) 2
15 ROLLERREAR-SPRING (2 per pack) 2
16 BOLTSHOULDER 2
17 TRACK ASS'YW/ICE STUDS 1
20 RIVETSOLID .187X.562 STL (10 per pack) 450
23 WHEELIDL 6.38(2-3/4DIA INSR) 2
24 SCREW CAP -HHNLP 5/16-18X.75 G5 Z&Y (5 per pack) 4
25 WSHRFLAT 21/64X1-1/2X (10 per pack) 2
27 WASHERRECT 1.015 X 1.62 12GA (4 per pack) 2
30 PLATE & NUT-WELDMENT (2 per pack) 2
31 NUTHEX LOCK-NYL 3/8-16 Z&Y (5 per pack) 8
32 WASHERSPR LOCK-3/8 .377X.688X.115 Z&Y (30 per pack) 6
33 NUT3/8-16 HEX-REG-GR5 Z&Y (20 per pack) 2
34 NUTHEX THIN LOCK-NYL 3/8-16 Z&Y (10 per pack) 3
35 WASHER2.00X.386X.1046 2
36 TUBEPIVOT-SPRING ADJUSTR (5 per pack) 2
37 ADJUSTERRH RR SUSP 1
37 ADJUSTERLH RR SUSP 1
38 WASHERFLAT- 3/8 X 1.000 X .063 Z&Y (10 per pack) 2
39 SCREWCAP-HH 3/8-16 X1.50 G5 Z&Y (5 per pack) 2
41 SLEEVESPRING 2
42 SCREWCAP-HH 3/8-16X6.0 G2 Z&Y (4 per pack) 1
43 AXLEREAR ARM PIVOT 1
44 TUBEPIVOT-REAR ARM 1
45 WASHERTAB LOCK (10 per pack) 1
48 SCREWCAP-HH 5/16-18 X1.00 G5 Z&Y (5 per pack) 8
49 BUSHINGAXLE 4
50 SCREWCAP-HH 3/8-16 X1.00 G5 Z&Y (10 per pack) 4
51 RIVETBLIND-LF SS54 ZINC (10 per pack) 4
52 PADSHOCK 2
53 WASHERFLAT- 1/4 X .500 X .063 Z&Y (10 per pack) 2
54 ZERK GREASE 1/4-28 (5 per pack) 2
55 BUSHINGSHOCK ABSORBER (2 per pack) 2
56 SCREWCAP-HH 3/8-16 X3.00 G5 Z&Y (5 per pack) 1
57 SUPPORTIDLER WHEEL 1
58 SHAFTIDLER WHEEL 1
59 WSHR.343X1 1/8X.120TH Z&Y (5 per pack) 2
60 WHEELIDL-4.25(NO INSR) 2
61 SHOCK ABSORBERRR ARM 1
62 BUSHINGSKI-SHOCK (4 per pack) 2
63 SCREWCAP-HH 3/8-16 X2.00 G5 Z&Y (5 per pack) 1
64 SCREWCAP-HHNLP 5/16-18X1.0 G5 Z&Y (5 per pack) 2
65 SCREWCAP-HH 3/8-16 X2.50 G5 Z&Y (5 per pack) 2
66 SPACERFRONT ARM-PIVOT 2
67 ARMFRONT WELDMENT 1
68 BOLTCLOSED EYE3/8-16UNC W (2 per pack) 2
69 SPRINGSUSPENSION- FRT-RH PTD BLK 1
69 SPRINGSUSPENSION- FRT-LH PTD BLK 1
70 SCREWCAP-HH 1/4-20 X2.25 G5 Z&Y (5 per pack) 1
71 WASHERFLAT- 1/4 X .734 X .063 Z&Y (20 per pack) 2
72 STOPFRONT ARM 1
73 SCREWCAP-HH 5/16-18 X1.50 G5 Z&Y (5 per pack) 1
74 PINSPRING-5/32 X 1-1/8 SLOTTED P&O (5 per pack) 2
75 ROLLER/SLIDEFRONT SPRING (2 per pack) 2
76 CROSSBRACEFRONT-WELDMENT(0104-910) 1
