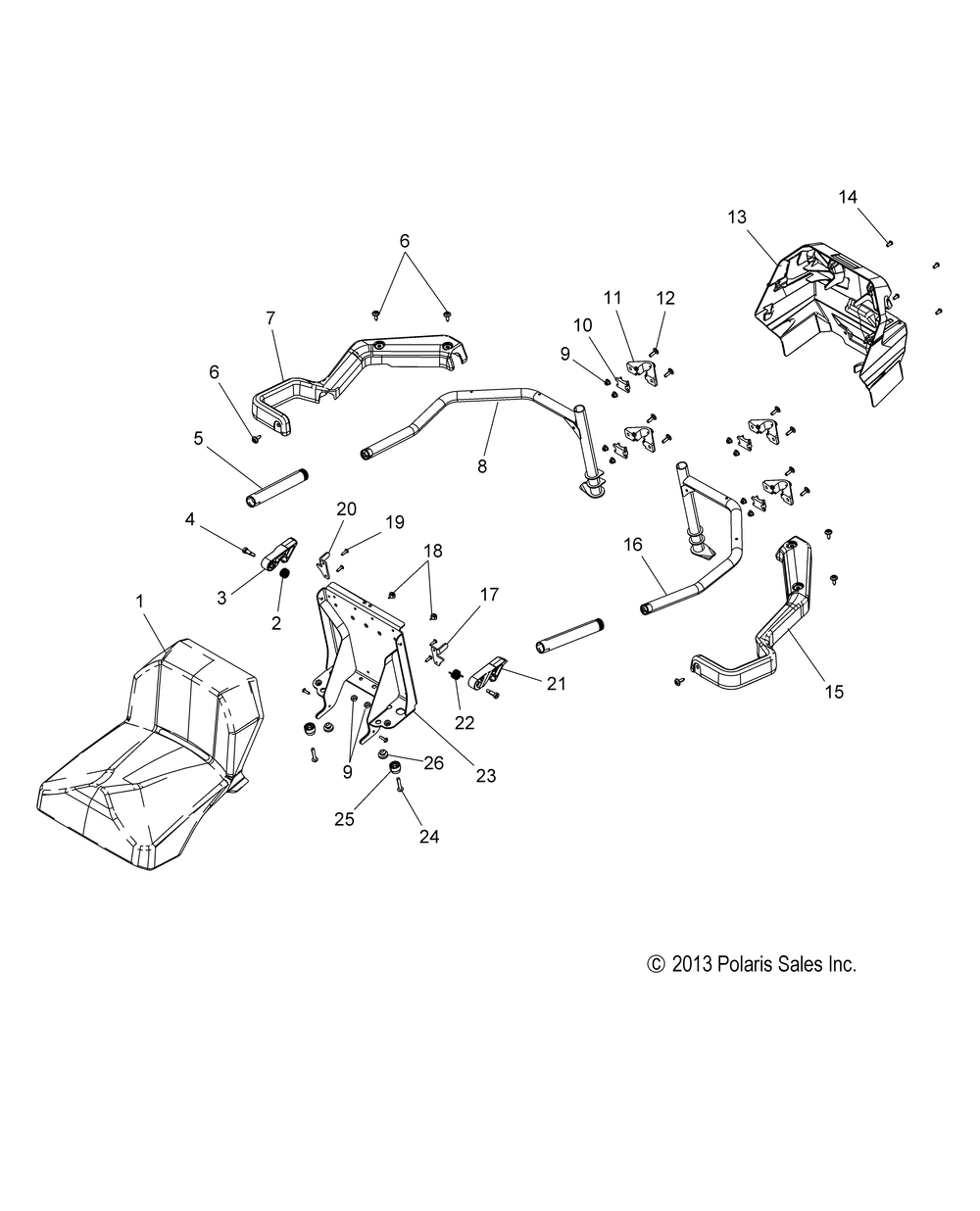

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | ASM-COVERPASSNGRCUT AND SEW | 1 | |
| 1 | ASM-BUN/BASEBLK | 1 | |
| 2 | SPRING-LATCHRH | 1 | |
| 3 | LEVER-LATCH RH | 1 | |
| 4 | BOLT-SHOULDERM8-16M6X1.0-Y | 2 | |
| 5 | GRIP-HANDLEBAR1"LONGBLK | 2 | |
| 6 | SCR-TXTH-M6X1.0X20 T40 ZPB | 6 | |
| 7 | COVER-ARM RESTRH | 1 | |
| 8 | WELD-HAND GRIPLHMBLK | 1 | |
| 9 | NUT-M6X1.0FLG-NYLOC-OLIVE D | 12 | |
| 10 | INSERT-PIVOT BUSHING | 4 | |
| 11 | BUSHING-PIVOT W/FTTG | 4 | |
| 12 | BOLT-CARR M6X1.0X20 8.8 ZOD | 8 | |
| 13 | BASE-SEATREARBLK | 1 | |
| 14 | SCR-TXBH-M6X1.0X12 8.8 ZPB D20 | 4 | |
| 15 | COVER-ARM RESTLH | 1 | |
| 16 | WELD-HAND GRIPRHMBLK | 1 | |
| 17 | SUPPORT-TUBE/LATCHPLTDLH | 1 | |
| 18 | BUMPER-RUBBER | 2 | |
| 19 | RIVETINTERLOCKZ(50) * (50 per pack) | 6 | |
| 20 | SUPPORT-TUBE/LATCHPLTDRH | 1 | |
| 21 | LEVER-LATCH LH | 1 | |
| 22 | SPRING-LATCH | 1 | |
| 23 | WELD-BASE STRUCTUREBLK | 1 | |
| 24 | SCR-M6X1X35TX TRBLK | 2 | |
| 25 | PLUG-RACK | 2 | |
| 26 | BUMPER-RUBBER (.31) SHORT | 2 |
