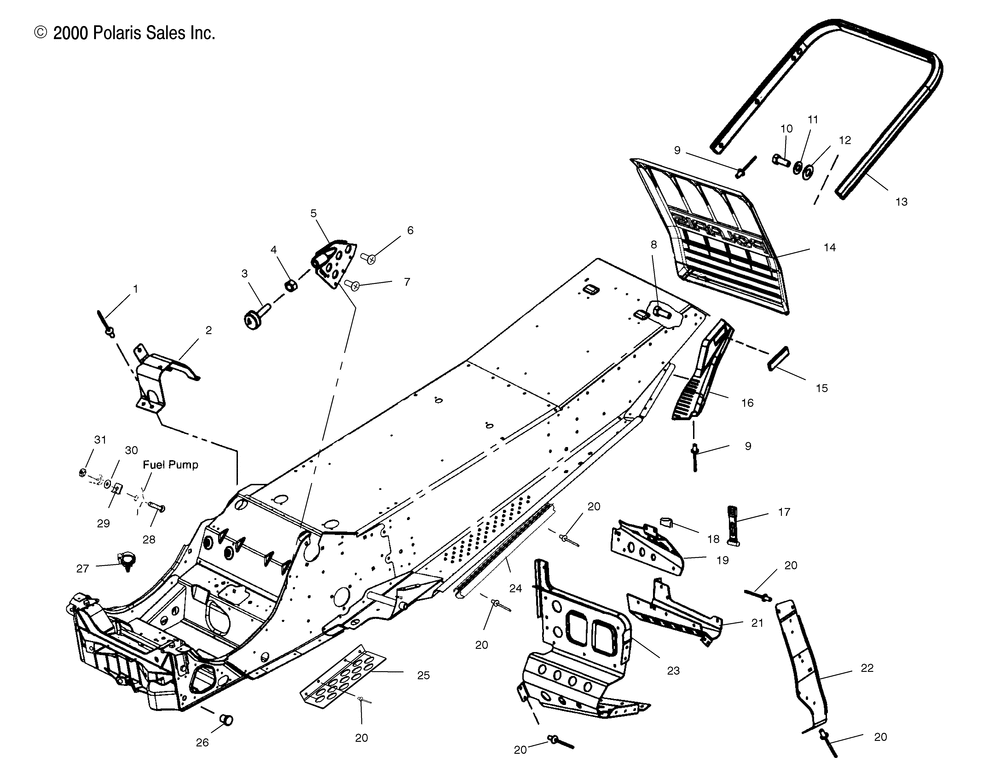

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | RIVET(50) (50 per pack) | 2 | |
| 2 | BRKT-JACKSHAFTSHIELD | 1 | |
| 3 | STOPTORQUE COURSE 3/8-16 | 1 | |
| 4 | NUT | 1 | |
| 5 | WELD-TORQUE STOP | 1 | |
| 6 | SCREW | 1 | |
| 7 | SCR-3/8-16X1-P30-SPEC-Y | 2 | |
| 8 | SCREW .75 | 4 | |
| 9 | RIVET(50) * (50 per pack) | 13 | |
| 10 | BOLT | 6 | |
| 11 | WASHER SPRING LOCK(10) (10 per pack) | 6 | |
| 12 | WASHER FLAT(10) * (10 per pack) | 6 | |
| 13 | ASM.BUMPERREAR | 1 | |
| 14 | FLAP-SNOWEDGEW/WHITE | 1 | |
| 15 | REFLECTOR ASMRED | 2 | |
| 16 | SKIRT-SNOWEDGELHBLK | 1 | |
| 16 | ASM-SNOWSKIRT/REFLECTORBLKRH | 1 | |
| 17 | STRAP | 2 | |
| 18 | EXTRUSIONCLUTCHGUARD | 1 | |
| 19 | MOUNTCONSOLELHBLK | 1 | |
| 20 | RIVETINTERLOCKZ(50) * (50 per pack) | 78 | |
| 21 | FOOTRSTUP.TOE-CLPLHBLK | 1 | |
| 21 | FOOTRSTUP.TOE-CLIPRHBLK | 1 | |
| 22 | SUPPORT-FOOTRESTLH | 1 | |
| 23 | FOOTRESTBLKLH | 1 | |
| 23 | FOOTREST-RH | 1 | |
| 24 | BRACE-TUNNEL ROLL | 2 | |
| 25 | GUARD-BELTEDGE | 1 | |
| 26 | PLUG HOLE | 2 | |
| 27 | CLIPROSEBUD | 2 | |
| 28 | BOLT-CARRIAGE | 2 | |
| 29 | NUT SPEED | 2 | |
| 30 | WASHERNYLON | 2 | |
| 31 | NUT-NYLOK(10) (10 per pack) | 2 |
