Polaris 099ER4BS 500 RMK 099ER4BS 500 RMK IGNITION and WIRE HARNESS - 099ER4BS (4948294829a014)

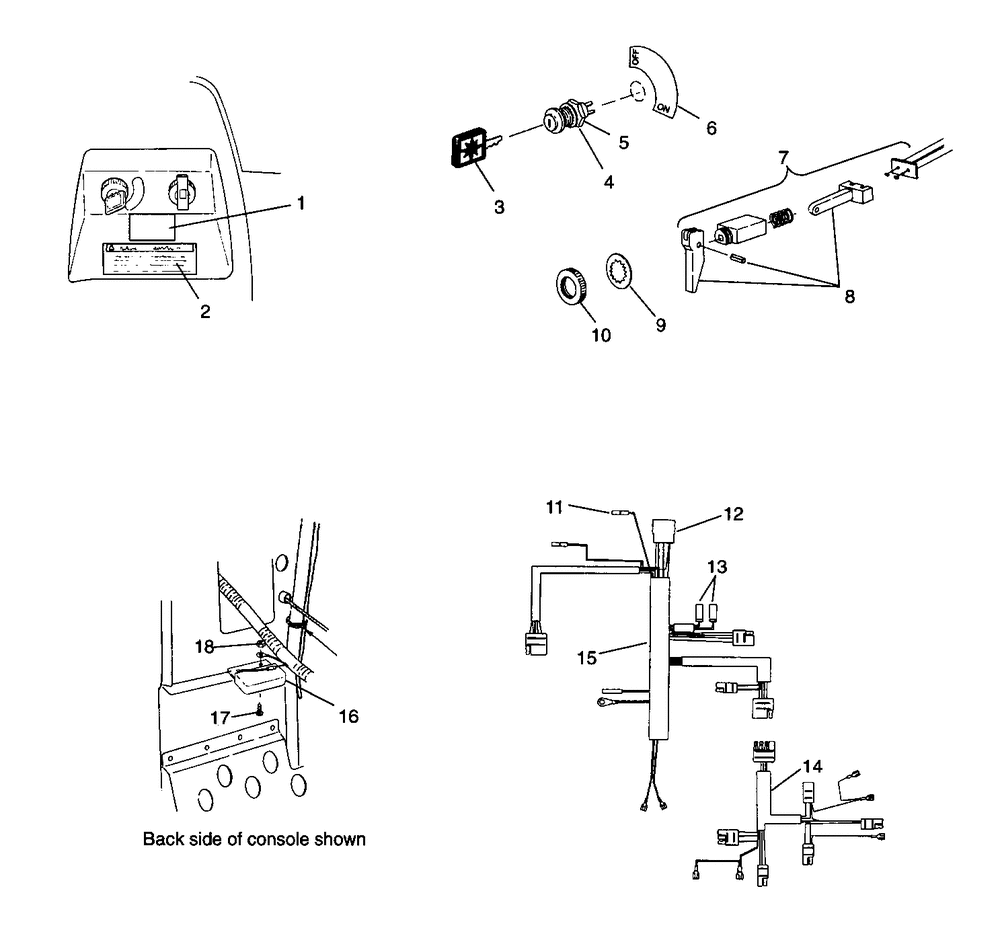

IGNITION and WIRE HARNESS - 099ER4BS (4948294829a014)
№ Наименование Примечание Кол-во
3 SUBSTITUTED BY 9990000 NOTE: WHEN ORDERING IGNITION KEY PN 5410611 BE SURE TO SPECIFY IF FOR AN ABCD OR E SWITCH. LETTER CODE WILL BE LABELED ON UNDERSIDE OF SWITCH BODY BEHIND CONSOLE. KEY DOT CODE FOUND ON KEY CAP [I.E. ONE DOT = A TWO DOTS= B ETC.]. 1
5 NUTIGNITION 1
7 CABLE CHOKE (TWIN) 1
8 KIT-CHOKE CONTROL [INCL. ANCHOR FLIPPER PIN] 1
9 WASHER-LOCK 1
10 NUT 1
11 HOUSINGSOCKET 1
12 HOUSING 1
13 HOUSING1 CIRCUIT 1
16 KIT-REGULATORAC LR7-LR9 1
17 SCREWW/WASHER 2
18 NUT NYLOK 10-24 Y 2
