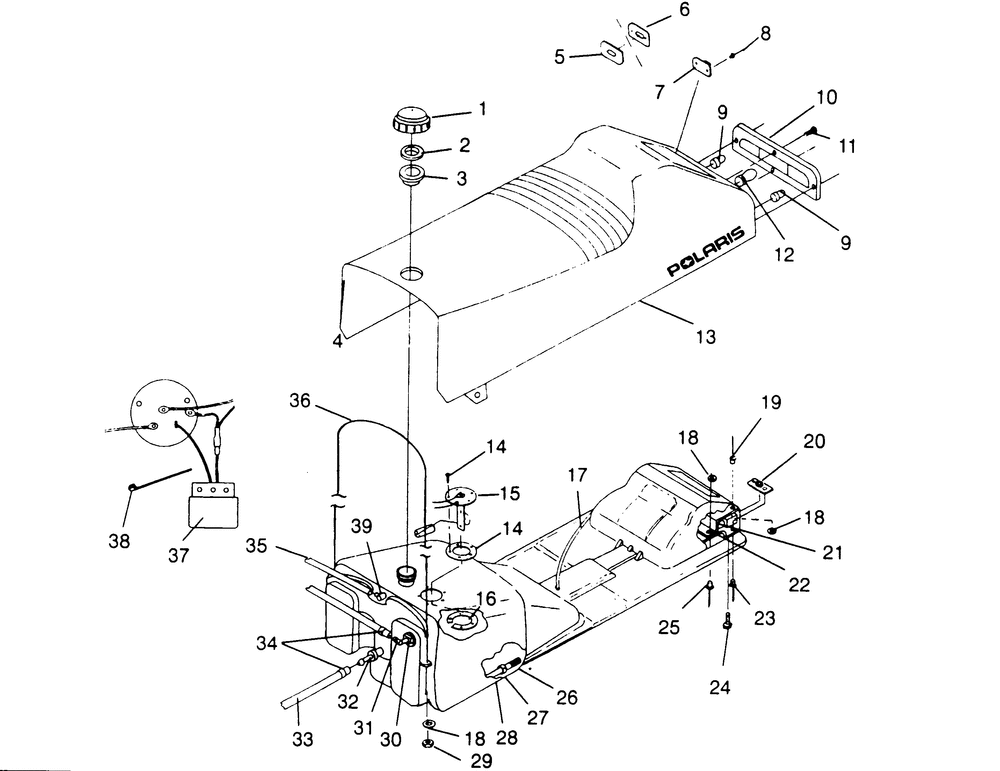

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 2 | GASKET GAS CAP | 1 | |
| 3 | GROMMETFUELTANK | 1 | |
| 5 | GROMMETRELATCH1"BOTT. | 2 | |
| 6 | GROMMETRELATCH1"TOP | 2 | |
| 7 | TWISTLOCKRELATCH1"W/HOLE(10) (10 per pack) | 2 | |
| 8 | RIVET(10) (10 per pack) | 4 | |
| 9 | BULBTAILLIGHT(10) (10 per pack) | 2 | |
| 11 | SCREW(10) (10 per pack) | 4 | |
| 12 | BULB | 1 | |
| 16 | FLANGE-FUEL TANK MOUNTING | 1 | |
| 18 | WASHER | 6 | |
| 19 | RIVET BLIND(50) * (50 per pack) | 3 | |
| 20 | NUTRETAINER-WELD. | 2 | |
| 21 | COVERT/L PROTECTOR | 1 | |
| 22 | HOUSING-TAILLIGHT | 1 | |
| 23 | RIVET(10) (10 per pack) | 4 | |
| 24 | SCREW(10) (10 per pack) | 2 | |
| 25 | RIVET(10) ALUM. (10 per pack) | 2 | |
| 27 | RING COMPRESSION | 2 | |
| 28 | LINE FUEL1/4 ID(600 CM.) | 0 | |
| 29 | NUT NYLOK 10-24 Y | 1 | |
| 30 | GROMMET | 1 | |
| 32 | FITTING - OUTLET | 1 | |
| 33 | FUEL HSE-5/16 DP SAE J30R9 SVC | 0 | |
| 35 | LINEFUEL1/8 ID600 CM. | 0 | |
| 37 | RECTIFIER FUEL (LR-51) | 1 | |
| 38 | CABLE TIE (10) (10 per pack) | 1 | |
| 39 | FITTING90 DEG1/8 | 1 |
