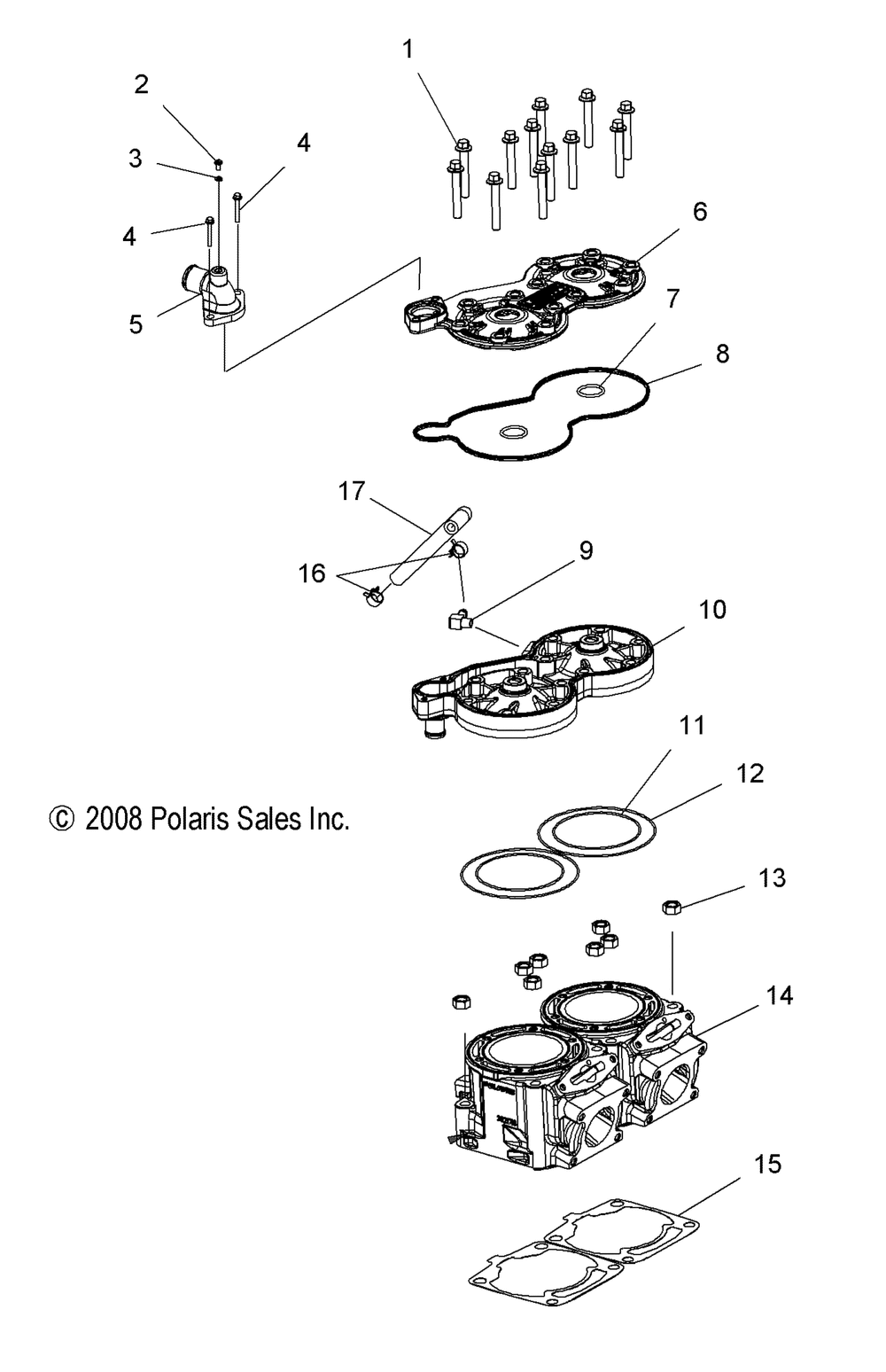

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | SCREWM8X1.25X55 | 12 | |
| 2 | SCREWM6X1.0 X 13SL/HX/FL-Z | 1 | |
| 3 | WASHERFLAT(10) * (10 per pack) | 1 | |
| 4 | SCREW | 2 | |
| 5 | COVER-THERMOSTAT M6 BLEED MACH | 1 | |
| 6 | CVR-HEAD77.25 TWIN CAST BLK | 1 | |
| 7 | O-RING | 2 | |
| 8 | SEAL-GLAND HEAD | 1 | |
| 9 | FITTING-5/16"HOSE BARB1/8-90 | 1 | |
| 10 | HEAD-CYLINDER77.25MM NOM | 1 | |
| 11 | O-RING | 2 | |
| 12 | O-RING | 2 | |
| 13 | NUT(10) (10 per pack) | 8 | |
| 14 | CYLINDER-77.25 600LE BP | 2 | |
| 15 | GASKET-BASE CYL METAL | 2 | |
| 16 | CLAMP-HOSE 17/32 GREEN | 2 | |
| 17 | HOSE-COOLANTTHROTTLE BODY | 1 |
