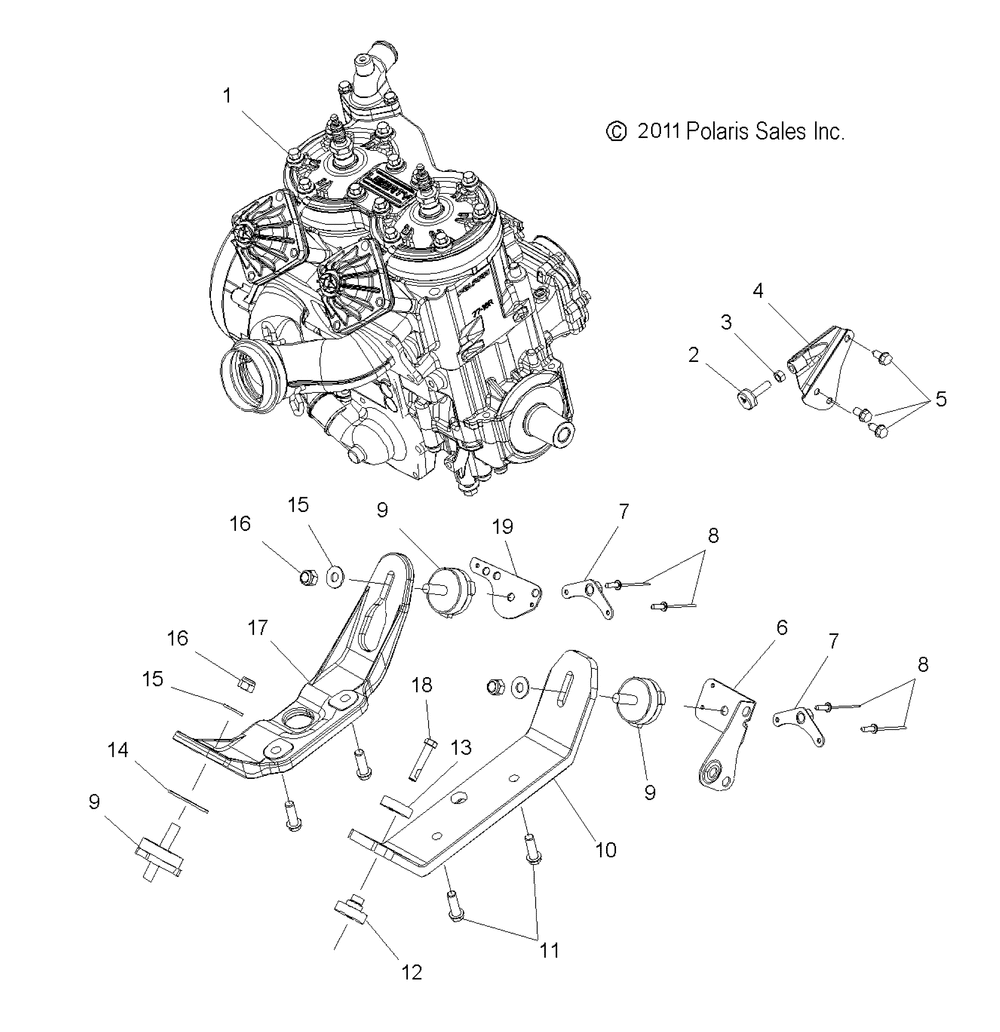

ENGINE MOUNTING - S12PU6NSL / NEL (49SNOWENGINEMOUNT12WIDE)

№	Наименование	Кол-во
1	KIT-SHT BLK 600 WIDETRACK NOTE: THE SHORT BLOCK ASSEMBLY CONTAINS A CRANKCASE ASSEMBLY CYLINDER AND CYLINDER HEAD ASSEMBLY AND A PISTON AND CRANKSHAFT ASSEMBLY. PRIOR AUTHORIZATION IS REQUIRED FOR WARRANTY CONSIDERATION.	1
2	STOP-TORQUECOURSE3/8-16 1.50	2
3	NUTHEX	1
4	WELD-TORQUE STOP	1
5	SCR-3/8-16X1-P30-SPEC-Y	3
6	SUPPORTTORQUE STOP/ENGINE MOUNT	1
7	WELD-NUT PLATE REAR	2
8	RIVETINTERLOCKZ(50) * (50 per pack)	8
9	ISOLATOR-RUBBER	3
10	STRAP-ENGINE MNTLHSDI	1
11	SCR-M10X1.50X35 HX/FL	4
12	MOUNT-ENGINE RUBBERBOTTOM	1
13	MOUNT-ENGINE RUBBERTOP	1
14	WASHERFLAT(10) (10 per pack)	1
15	WASHERFLAT(10) (10 per pack)	3
16	NUT NYLOK(10) * (10 per pack)	3
17	STRAP-ENGINERHMACH	1
18	BOLT-7/16-14X2.5HXCP GR5-YSPT	1
19	SUPPORT-ENG MNT RRMAG	1
