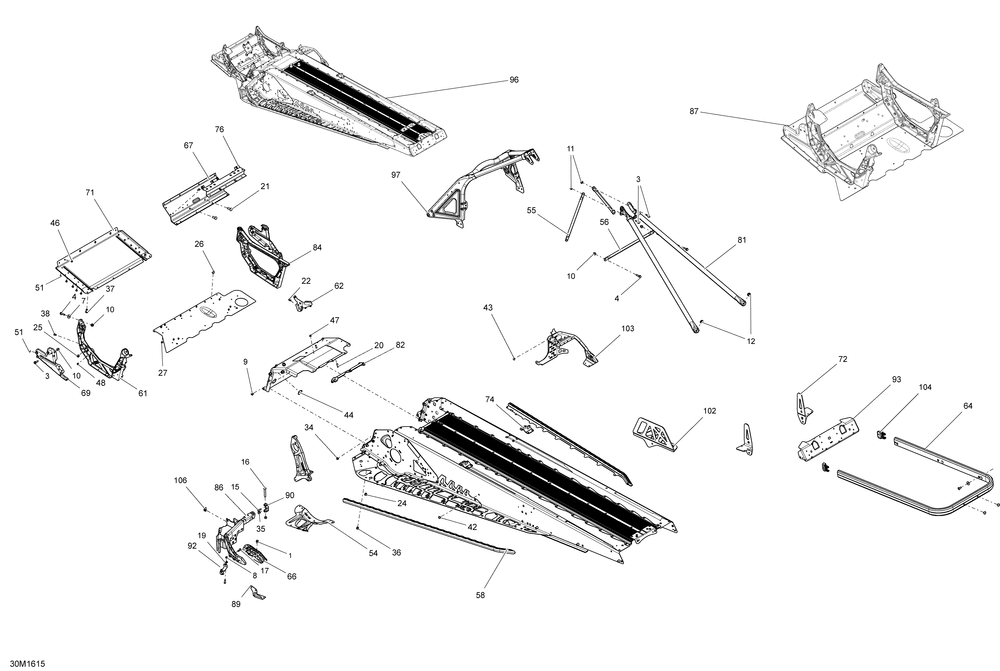

SKI-DOO TUNDRA - LT-Sport_2-STROKE TUNDRA - LT-Sport_2-STROKE 09- Frame
09- Frame
№ Наименование Примечание Кол-во
1 Hex. Flanged Screw M6 X 12, Scotch Grip 2
3 Hex. Flanged Screw M6 X 20 10
4 Hex. Flanged Screw M6 X 25 4
7 FLAT WASHER (10.000 per pack) 2
8 Elastic Stop Nut M6 3
9 Hex. Flanged Nut M6 1
10 Hex. Flanged Elastic Nut M6 12
11 Elastic Flanged Nut M6 X 1.0 2
12 Hex. Flanged Elastic Nut M8 5
15 Tork Screw M6 X 16 1
16 TORX SCREW M8 X 55 1
17 TORK SCREW M6 X 18 2
19 FLAT WASHER (10.000 per pack) 5
20 CLINCH STUD M6 X 20 6
21 CLINCH STUD 4
22 HEMLOCK RIVET 6.5 MM (5.000 per pack) 3
24 Pop Rivet 3/16" 4
25 HEMLOCK RIVET 6.5 MM (5.000 per pack) 8
26 HEMLOCK RIVET 6.5 MM (4.000 per pack) 4
27 STAVEX RIVET (20.000 per pack) 21
34 HENROB RIVET (10.000 per pack) 12
35 HEMLOCK RIVET (10.000 per pack) 6
36 HEMLOCK RIVET 6.4 MM (10.000 per pack) 5
37 MONOBOLT RIVET 6.4 (2.000 per pack) 4
38 MONOBOLT RIVET 4.8 MM (4.000 per pack) 7
42 FULL MOON DART 8 MM Model-LE 3
42 BLACK DART 8 MM 2
43 FULL MOON DART 5 MM 2
44 BLACK PLUG (2.000 per pack) 4
45 FULL MOON DART 10 MM 2
46 Pop Rivet 3/16" 4
47 Pop Rivet 3/16" 3
48 AVEX RIVET (50.000 per pack) 17
51 AVEX RIVET (50.000 per pack) 25
54 RENFORT DR *REINFORCEMENT 1
54 RENFORT GA *REINFORCEMENT 1
55 UPPER COLUMN SUPPORT Model-1200 4-TEC 2
56 CENTER COLUMN SUPPORT 1
58 ROULEAU DROIT *RH.ROLLER 1
58 ROULEAU GAUCHE *LH.ROLLER 1
58 RH ROLLER 1
58 LH ROLLER 1
61 LH MEMBER 2
62 RH ENGINE SUPPORT 1
64 CLEAR REAR BUMPER Package Sport 1
64 CLEAR REAR BUMPER Package LT 1
66 RH DEFLECTOR 1
66 LH DEFLECTOR 1
67 FRONT MEMBER 2
69 RH FRONT MEMBER 2
69 LH FRONT MEMBER 2
71 FRONT BOTTOM PLATE 2
72 RH SLIDE BRACKET Package LT 1
72 LH SLIDE BRACKET Package LT 1
74 RH REAR BASE 1
74 LH REAR BASE 1
76 ENGINE SUPPORT 1
81 REAR MEMBER 1
82 JOINT *SEAL 1
84 RH MEMBER 2
86 ETRIER GA. *LH.STIRUP 1
87 MODULE E TUNDRA 2
89 SUPPORT 1
90 U-ATTACH 1
92 ATTACHE *ATTACH 1
93 REAR CAP 1
94 PULLEY SUPPORT 1
96 FRAME ASS Y Package LT 1
96 CHASSIS *FRAME Package Sport 1
97 FRONT MEMBER S MODULE 1
101 ATTACHE DROITE *RH.BRACKET Package Sport 1
102 ATTACHE GAUCHE *LH.BRACKET Package Sport 1
103 ETRIER DROIT *RH.STIRUP 1
104 FULL MOON RH CAP 1
104 FULL MOON LH CAP 1
106 PANEL NUT M5 X 0.8 (10.000 per pack) 2
