SKI-DOO MXZ - 4-STROKE MXZ - 4-STROKE 07- Front Suspension And Ski - All Models

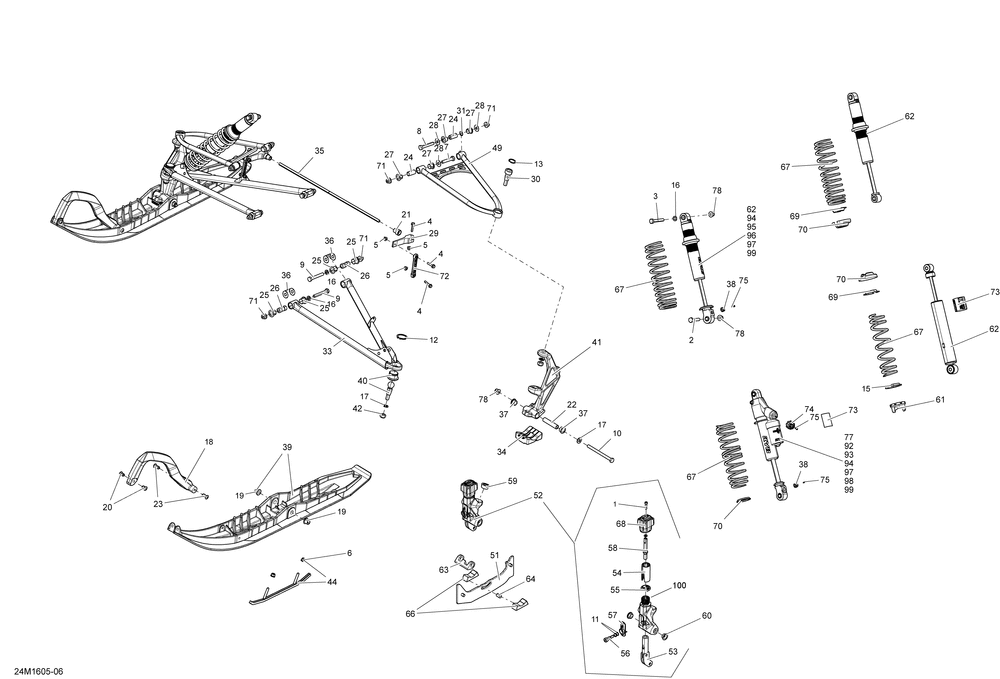

07- Front Suspension And Ski - All Models
№ Наименование Примечание Кол-во
1 SOCKET HEAD SCREW M6 X 25 SCOTCH GRIP (10.000 per pack) 0
2 HEX SCREW M10 X 55 2
3 HEX. SCREW M10 X 65 (5.000 per pack) 2
4 HEX FLANGED SCREW M6 X 30 0
5 Hex. Flanged Elastic Nut M6 0
6 Hex. Flanged Elastic Nut M8 0
7 SCREW HEX. M10 X 50 (4.000 per pack) 2
8 SCREW HEX. M10 X 60 (5.000 per pack) 2
9 SCREW HEX. M10 X 70 0
10 HEX. SCREW M10 X 130 2
11 O-RING (10.000 per pack) 2
12 Circlip 2
13 CIRCLIP (2.000 per pack) 2
15 Spring Guide 1
16 RONDELLE *WASHER (10.000 per pack) 0
17 RONDELLE *WASHER (5.000 per pack) 4
18 BLACK HANDLE Model N 2
18 YELLOW HANDLE Model N 2
18 POIGNEE BLANCHE*HANDLE-WHITE Model N 2
19 CUSHION 2
20 RETAINER (16.000 per pack) 2
21 COUSSINET *BUSHING 2
22 SPACER (2.000 per pack) 2
23 RETAINER 2
24 BUSHING 4
25 COUSSINET *BUSHING 8
26 BUSHING 4
27 COUSSINET *BUSHING 8
28 RONDELLE *WASHER (5.000 per pack) 6
29 STABILISATOR LEVER 2
30 UPPER BALL JOINT 2
31 O-RING 2
33 BLACK RH LOWER ARM Package-Sport 1
33 BLACK LH LOWER ARM Package-Sport 1
33 LH LOWER ARM 42" Except Package-Sport 1
33 RH LOWER ARM 42" Except Package-Sport 1
34 SKI STOPPER 2
35 STABILISATEUR *STABILISATOR 1
36 WEAR PLATE 4
37 BUSHING 4
38 ADJUSTMENT KNOB 1
39 DEEP BLACK RH PILOT SKI 5.7 ASS Y Model N 1
39 DEEP BLACK LH PILOT SKI 5.7 ASS Y Model N 1
39 SKI PILOT TS Model N 1
39 SKI PILOT TS Model N 1
40 JOINT ROTULE *BALL JOINT 2
41 JAMBE DE SKI *SKI LEG 1
41 SKI-LEG MACHINED Model N 1
41 SKI-LEG MACHINED Model N 1
41 JAMBE DE SKI *SKI LEG Model-Black-Black Package-XRS 1
41 CLEAR RH SKI LEG Package-Sport 1
41 CLEAR LH SKI LEG Package-Sport 1
41 SKI-LEG MACHINED Model-White-White 1
41 JAMBE DE SKI *SKI LEG Model N 1
42 Hex Elastic Nut M12 X 1.25 4
44 RUNNER KIT Model N 2
44 CARBIDE RUNNER KIT Includes 3 To 4 2
49 BLACK RH UPPER ARM 42" Package-Sport 1
49 BLACK LH UPPER ARM 42" Package-Sport 1
49 LH UPPER ARM 42" Except Package-Sport 1
49 RH UPPER ARM 42" Except Package-Sport 1
52 MECANISME *MECANISME 1
52 MECANISME *MECANISME 1
52 MECHANISM REPAIR KIT 2
53 EMBOUT *TIP WELDED 2
56 VIS *SCREW 0
58 ARBRE *SHAFT 2
59 GROMMET *GROMMET 2
60 COUSSINET *BUSHING 4
61 ADJUSTEMENT CAM 1
62 FRONT SHOCK Package-Sport North America 2
62 FRONT SHOCK Package Backcountry X North America Model 2
62 FRONT SHOCK Package Backcountry 2
63 BUTÉE *STOPPER 2
64 PIGE *PIN 2
66 BUTEE DE SKI *STOPPER-SKI 4
67 DEEP BLACK SPRING Package-TNT 1200 4-TEC 2
67 DEEP BLACK SPRING Package-Blizzard 1200 4-TEC 2
67 DEEP BLACK SPRING Package-Sport North America 2
67 DEEP BLACK SPRING 900 ACE 2
69 Cap 1
70 BUTEE RESSORT *STOPPER-SPRING Package Backcountry X 1
70 Spring Stopper 1
71 Hex. Flanged Elastic Nut M10 0
72 Sway Bar Double Joint Link 2
73 SHOCK DECAL MC Package-Sport North America 1
74 SHOCK ADJUSTER KNOB 1
75 SOCKET SCREW M3 X 10 Package Backcountry X (5.000 per pack) 1
77 RH FRONT SHOCK Package-XRS 1
78 Hex. Elast. Flanged Nut M10 2
92 O-RING 1
93 PISTON RING 1
94 AIR VALVE 1
95 PISTON RING 1
96 O-RING (5.000 per pack) 1
97 O-RING 1
98 O-RING 1
99 SCREW *VIS 0
100 RESSORT *SPRING 2
