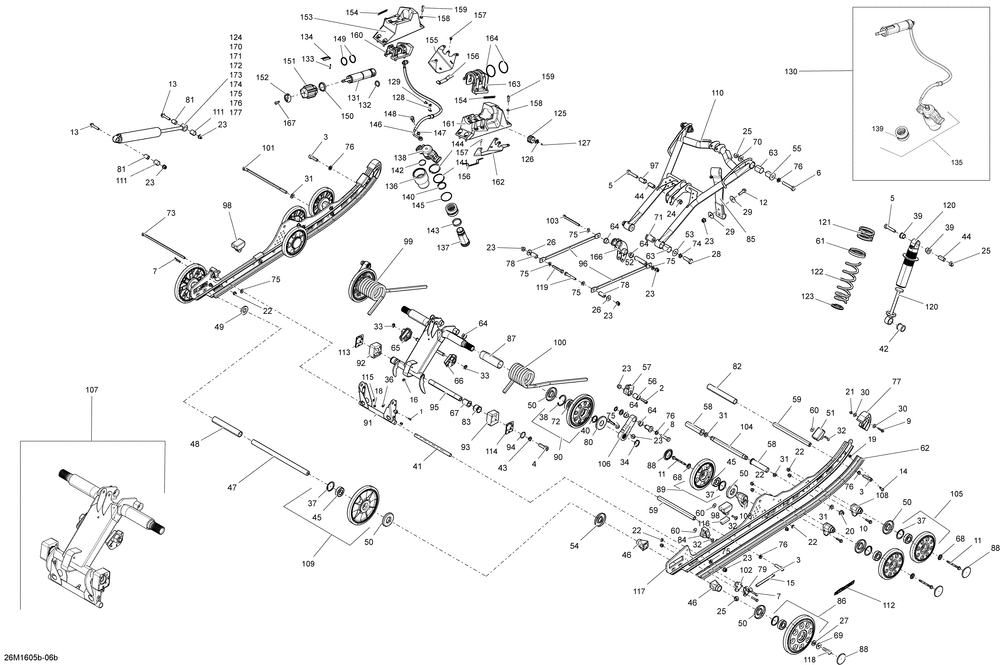

SKI-DOO MXZ - 4-STROKE MXZ - 4-STROKE 08- Rear Suspension - Package TNT-X
08- Rear Suspension - Package TNT-X
№ Наименование Примечание Кол-во
1 SOCKET HEAD SCREW M4X 10 2
2 SOCKET SCREW M8 X 25 (2.000 per pack) 2
3 SOCKET HEAD SCREW M10 X 35 4
4 SOCKET HEAD SCREW M12 X 35 2
5 HEX. SCREW M10 X 50 (10.000 per pack) 2
6 Hex. Cap Screw M10 X 60 2
7 HEX. CAP SCREW M6 X 30 (2.000 per pack) 4
8 CAP SCREW HEX. M10 X 40 2
9 HEX. FLANGED SCREW M5 X 25 2
10 HEX. FLANGE SCREW M6 X 25 6
11 HEX. FLANGE SCREW M6 X 70 6
12 HEX. FLANGED SCREW M8 X 30 (10.000 per pack) 1
13 Hex. Flanged Screw M8 X 40 2
14 PHILLIPS SCREW M6 X 25 (4.000 per pack) 1
15 HEX SCREW M10 X 100 2
16 NUT-HEXAGONAL DIN.934 (25.000 per pack) 1
18 NUT-STOP ELASTIC DIN.985 (10.000 per pack) 2
19 Elastic Stop Nut M6 1
20 Flanged Elastic Nut M10 1
22 Hex. Flanged Elastic Nut M6 16
23 NUT-FLANGE ELASTIC DIN.6926 10
24 ELASTIC LOCKING NUT M10 SE5 Electronic A29H A29J A29K A29L A29M A29N (10.000 per pack) 1
25 Elastic Locking Nut M10 5
26 Flat Washer 8 mm 2
27 CONICAL SPRING WASHER 10 MM (10.000 per pack) 2
28 HEX. CAP SCREW M12 X 35 (5.000 per pack) 2
29 FLAT WASHER 8 MM 2
30 RONDELLE *WASHER (4.000 per pack) 4
31 FLAT WASHER 4
32 POP RIVET 3/16" (10.000 per pack) 6
33 E-Circlip 2
34 RETAINING RING 2
35 SUSPENSION GREASE 10 X 400 G 0
36 GREASE FITTING (10.000 per pack) 2
37 RETAINING RING 4
38 RETAINING RING 1
39 Bushing Urethane 2
40 AXLE SPRING 2
41 PIVOT ARM AXLE 1
42 COUSSINET URETH*CUSHION-URETH. 1
43 RONDELLE *WASHER (25.000 per pack) 2
44 Bushing 2
45 BALL BEARING 5
46 REAR WHEEL SPACER 3
47 REAR AXLE 1
48 SPACER 1
49 RONDELLE *WASHER 1
50 LABYRINTH SEAL 11
51 RUBBER STOPPER 2
52 AXLE BAR (LONG) Model-LE 1
53 RONDELLE *WASHER (5.000 per pack) 2
54 LABYRINTH SEAL 1
55 AXE *AXLE 2
56 RETAINER CUSHION (2.000 per pack) 2
57 SPRING SUPPORT 2
58 ENTRETOISE *SPACER 2
59 AXLE STRAP 2
60 RONDELLE * WASHER (6.000 per pack) 6
61 SPRING SPACER 1
62 BLACK SLIDER SHOE 120" 1
63 COUSSINET *BUSHING 4
64 Pop Rivet 3/16" 2
64 SWIVEL BUSHING 8
65 LH CAM ADJUSTER 1
66 RH CAM ADJUSTER 1
67 CUSHION 2
68 WHEEL CUP M6 6
69 RONDELLE *WASHER (3.000 per pack) 2
70 RONDELLE *WASHER (4.000 per pack) 2
71 LOWER AXLE 2
72 BALL BEARING 1
73 BOLT M8 X 248MM 1
74 RONDELLE *WASHER (5.000 per pack) 2
75 Washer 9
76 Washer 8
77 SLIDE PROTECTOR 2
78 AXE BARRE *AXLE-BAR 2
79 TENSIONER 2
80 LABYRINTH RING 2
81 REAR SHOCK AXLE 2
82 SPACER 1
83 GUIDE BLOCK 2
84 RUBBER STOPPER 2
85 STOPPER STRAP 1
86 DEEP BLACK WHEEL ASS Y 180 MM 2
87 BUSHING 2
88 BLACK WHEEL CAP 10
89 DEEP BLACK WHEEL ASS Y 141 MM 2
90 BLACK WHEEL ASS Y 155 MM 2
91 PIVOT ARM ASS Y 1
92 LH CAM BLOCK 1
93 RH CAM BLOCK 1
94 O-RING 2
95 LOWER SHAFT 1
96 TIGE ACCEL. *LINK ROD 2
97 COUSSINET *CUSHION 1
98 RUBBER STOPPER 1
99 BLACK LH SPRING SQUARE 1
100 BLACK RH SPRING SQUARE 1
101 BOLT M10 X 251MM 1
102 SPACER 2
103 SCREW M8 X 90 1
104 PIVOT AXLE 1
105 DEEP BLACK WHEEL ASS Y 141 MM 4
106 LINK ASS Y 2
107 REAR ARM ASS Y 1
108 CASTED SUPPORT 6
109 DEEP BLACK WHEEL ASS Y 180 MM 1
110 BRAS AVANT *FRONT ARM 1
111 BUSHING 2
112 RUNNER DECAL 2
113 LH BLOCK STICKER DECAL 1
114 RH BLOCK STICKER DECAL 1
115 FLAT WASHER (10.000 per pack) 2
116 REINFORCEMENT STOPPER 1
117 BLACK RUNNER 120" 1
117 YELLOW RUNNER 120" 1
118 SCREW-HEX.CAP WITH NYLON PATCH 2
119 HEX. SCREW M8 X 55 2
120 CENTRAL SHOCK 1
121 BLACK SPRING (SHORT) 1
122 BLACK SPRING 1
122 DEEP BLACK SPRING 1
123 BUTEE RESSORT *STOPPER-SPRING Package Backcountry X 1
124 REAR SHOCK HPGTA Package TNT 1
124 AMORTISSEUR *REAR SHOCK Package X With QAS 1
124 AMORTISSEUR *REAR SHOCK Package X Without QAS 1
125 ADJUSTMENT KNOB ASS Y 1
126 SHOCK KNOB ADJUSTMENT DECAL 1
127 Allen Screw M3 X 0.5 X 10 1
128 PLAQUE *PLATE 1
129 Socket Head Screw M6 X 10 Scotch Grip 1
130 HYDRAULIC ADJUSTER ASS Y 1
131 MASTER CYLINDER ASS Y 1
132 O-RING (5.000 per pack) 1
133 SPRING-PIN ISO.8752 M3 X 20 (5.000 per pack) 1
134 ADJUSTMENT DECAL 1
135 ACTUATOR ASS Y 1
136 CYLINDER 1
137 PISTON 1
138 SPRING BRACKET 1
139 SUPP. ASSY. *ASSY. HOLDER. 1
140 O-RING 2
141 O-RING 1
142 O-RING 1
143 WEAR RING 1
144 RETAINING RING 1
145 O-RING 1
146 CONNECTOR HOSE 1
147 COPPER WASHER (10.000 per pack) 4
148 BANJO BOLT 2
149 O-RING 2
150 JOINT RACLEUR *WIPER SEAL 1
151 KNOB ADJUSTER ASS Y 1
152 STICKER KNOB ADJUSTER 1
153 LH SUPPORT 1
154 DECAL 2
155 LH HOSE PROTECTOR 1
156 PLAQUE *PLATE 2
157 STAVEX RIVET (20.000 per pack) 6
158 Flat Washer M6, Stainless 14
159 SOCKET HEAD SCREW M6 X 20 (5.000 per pack) 14
160 LH HALF HOUSING 1
161 RH SUPPORT 1
162 RH HOSE PROTECTOR 1
163 RH HALF-HOUSING 1
164 O-RING (10.000 per pack) 2
166 CULBUTEUR SOUDE*ROCKER-WELD. 1
167 SCREW-SOCKET DIN.912A2 S.GRIP (10.000 per pack) 1
170 O-RING 1
171 PISTON RING 1
172 AIR VALVE 1
173 SCREW *VIS 1
174 O-RING 1
175 O-RING 1
176 BOLT 2
177 JOINT TORIQUE *PACKING 4
