SKI-DOO MXZ - 4-STROKE MXZ - 4-STROKE 09- Frame - 600-900 ACE

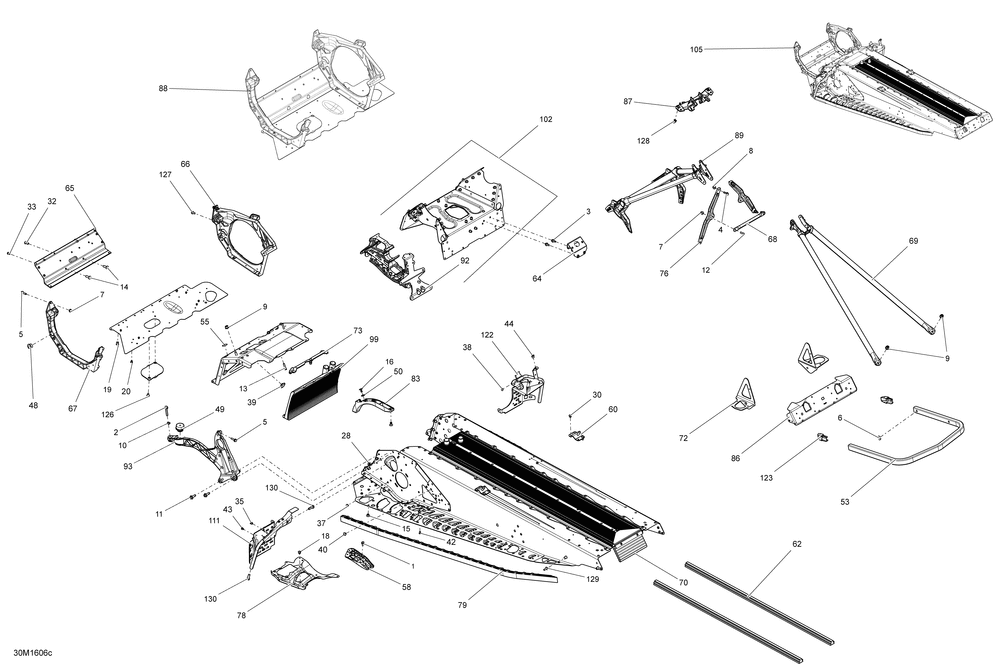

09- Frame - 600-900 ACE
№ Наименование Примечание Кол-во
1 Hex. Flanged Screw M6 X 12, Scotch Grip 2
2 Hex. Flanged Screw Scotch Grip 1
3 Hex. Flanged Screw M6 X 16 2
4 Hex. Flanged Screw M6 X 20 2
5 Hex. Flanged Screw M6 X 25 0
6 FLAT WASHER (10.000 per pack) 6
7 Hex. Flanged Elastic Nut M6 0
8 Elastic Flanged Nut M6 X 1.0 2
9 Hex. Flanged Elastic Nut M8 0
10 CONICAL SPRING WASHER M8 (10.000 per pack) 1
11 HEX. FLANGED SCREW M8 X 25 NYLON (5.000 per pack) 2
12 CLINCH STUD M6 X 20 0
13 CLINCH STUD M6 X 30 Eingine 600 H.O. E-TEC (2-Strokes) (4.000 per pack) 2
14 CLINCH STUD 2
15 Pop Rivet 3/16" 4
16 POP RIVET 3/16tahos_ (25.000 per pack) 3
18 HEMLOCK RIVET 6.5 MM (5.000 per pack) 0
19 HEMLOCK RIVET 6.5 MM (4.000 per pack) 0
20 STAVEX RIVET (20.000 per pack) 0
28 HENROB RIVET (10.000 per pack) 0
30 HEMLOCK RIVET 6.4 MM (10.000 per pack) 0
32 MONOBOLT RIVET 6.4 (2.000 per pack) 2
33 MONOBOLT RIVET 4.8 MM (4.000 per pack) 6
35 INSERT 5
37 FULL MOON DART 8 MM Model-LE 3
37 BLACK DART 8 MM 3
38 FULL MOON DART 5 MM 1
39 BLACK PLUG (2.000 per pack) 4
40 FULL MOON DART 10 MM 2
40 Black Dart 10 mm 2
42 AVEX RIVET (50.000 per pack) 0
43 AVEX RIVET (50.000 per pack) 0
44 Insert 3
48 BUSHING 2
49 RUBBER MOUNT 2
50 RONDELLE *WASHER (10.000 per pack) 1
53 BLACK REAR BUMPER 1
53 CLEAR REAR BUMPER 1
53 BLACK REAR BUMPER North America Model 1
55 ADHESIVE PATCH 1
58 RH DEFLECTOR 1
58 LH DEFLECTOR 1
60 RH REAR BASE 1
60 LH REAR BASE 1
62 PROT. CHASSIS *TUNNEL PROT. 4
64 ENGINE SUPPORT Model-900 ACE 1
65 FRONT MEMBER 1
66 RH SIDE MEMBER 1
67 LH SIDE MEMBER 1
68 CENTER COLUMN SUPPORT Model-900 ACE 1
69 REAR MEMBER 1
70 REAR RADIATOR ASS Y 1
70 RADIATEUR ARR.S*REAR RAD. WELD 1
72 RH SLIDE BRACKET 1
72 RH SLIDE SUSPENSION BRACKET 1
72 LH SLIDE SUSPENSION BRACKET 1
72 LH SLIDE BRACKET 1
72 ATTACHE DROITE *RH.BRACKET 1
72 ATTACHE GAUCHE *LH.BRACKET 1
73 JOINT *SEAL 1
76 UPPER COLUMN SUPPORT Model-900 ACE 2
78 RENFORT DR *REINFORCEMENT 1
78 RENFORT GA *REINFORCEMENT 1
79 RH ROLLER 1
79 LH ROLLER 1
79 RH ROLLER 1
79 LH ROLLER 1
79 RH ROLLER Package-Sport 1
79 LH ROLLER Package-Sport 1
83 FRONT PROTECTOR 1
86 REAR CAP 1
87 SUB A SUPPORT 1
88 "E" MODULE 1
89 FRONT MEMBER 1
92 FRONT SUSPENSION SUPPORT 1
93 BRETELLE ASS *AS BRACE Includes 53 To 54 Model-900 ACE 1
99 FRONT RADIATOR ASS Y 1
102 MODULE S *CROSS MEMBER 1
105 CHASSIS *FRAME Package-Blizzard 1
105 FRAME ASS Y 120 Package-Sport 1
105 FRAME ASS Y 120 Package-TNT 1
111 ETRIER GA *LH.STIRUP 1
122 ETRIER DROIT *RH.STIRUP 1
123 CAPUCHON *CAP 2
123 BLACK CAP North America Model 2
126 Torx Truss Screw M6 X 12 2
127 Hex. Flanged Screw M6 X 16 2
128 PANEL NUT M5 X 0.8 (10.000 per pack) 2
129 TORX-TRUSS M/S N.PATCH M6 X 18 6
130 SCREW-PAN HD.TORX M8X25 SCOTCH GRIP 3
