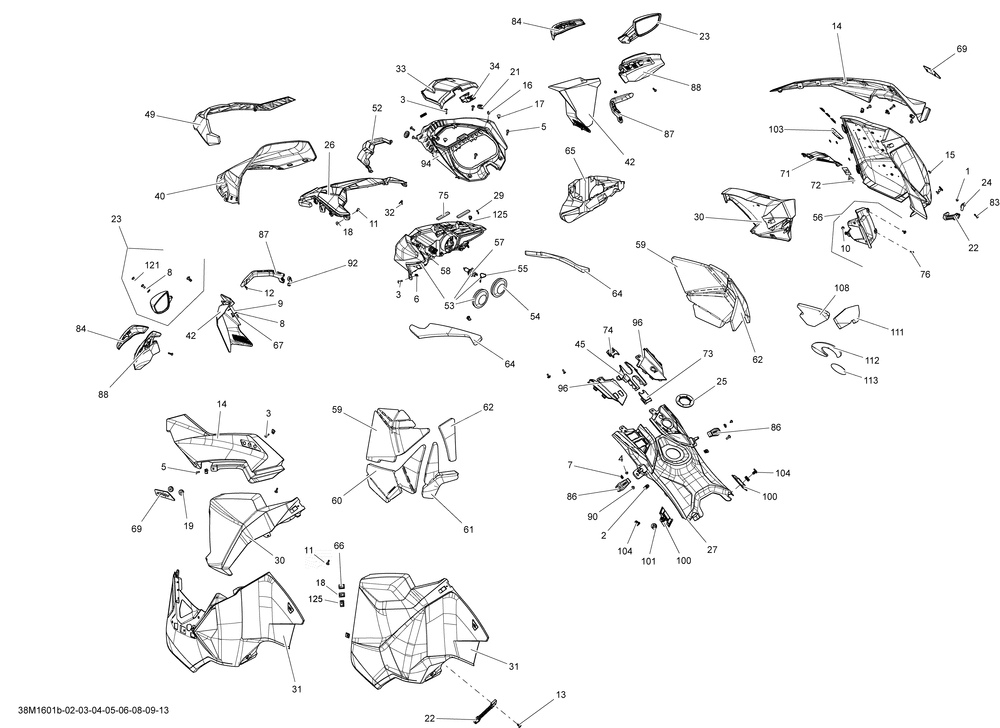

SKI-DOO MXZ - 4-STROKE MXZ - 4-STROKE 09- Hood - Except Package Sport
09- Hood - Except Package Sport
№ Наименование Примечание Кол-во
1 FLANGED ELASTIC NUT M5 (4.000 per pack) 1
2 Panel Nut M6 X 1.0 2
3 Torx Screw M5 X 20 12
3 Torx Screw M5 X 20 4
4 HEXALOB SCREW M4 X 10 2
5 TORX SCREW M5 X 26 4
6 JACK NUT M5 2
7 WELD NUT M4 2
8 Rubber Washer 5 mm 4
9 WASHER M5 (10.000 per pack) 4
10 BLACK CAP (5.000 per pack) 3
11 Pop Rivet 3/16" 8
12 Torx Screw Truss Head K50X20 T20 2
13 POP RIVET 3/16tahos_ (25.000 per pack) 1
14 DEEP BLACK RH HOOD Black-Black Model 1
14 DEEP BLACK LH HOOD Black-Black Model 1
14 CAPOT GAUCHE *HOOD-LH Triade White 1
14 CAPOT DROIT *HOOD-RH Triade White 1
16 Rubber Bumper 2
17 DART GS Black A19N Model (10.000 per pack) 2
18 RONDELLE *WASHER (10.000 per pack) 0
19 RONDELLE *GROMMET (10.000 per pack) 4
21 RONDELLE *GROMMET 3
22 LH PANEL LATCH 1
22 RH PANEL LATCH 1
23 RH MIRROR ASS Y 1
23 LH MIRROR ASS Y 1
24 LATCH SUPPORT 1
25 CONSOLE NUT 1
26 DEEP BLACK CENTER HOOD 1
26 YELLOW SUNBURST CENTER HOOD 1
26 WHITE CENTER HOOD Red-White Model 1
27 WHITE REAR CONSOLE 1
27 BLACK REAR CONSOLE 1
29 Screw M4 X 16 2
30 DEEP BLACK RH PANEL 1
30 DEEP BLACK LH PANEL 1
30 PANNEAU DROIT *RH.PANEL Black-Black Model - Engine 1203 - Panel With Handle Opening 1
30 PANNEAU GAUCHE *LH.PANEL Black-Black Model - Engine 1203 1
30 PANNEAU DROIT *RH.PANEL Panel With Handle Opening 1
30 PANNEAU GAUCHE *LH.PANEL White-White Model - Engine 1203 1
31 DEEP BLACK LH FLASHING PANEL 1
31 DEEP BLACK RH PANEL TRIM 1
31 YELLOW SUNBURST LH FLASHING PANEL Except Package Sport 1
31 YELLOW SUNBURST RH PANEL TRIM Panel With Handle Opening 1
32 PANEL NUT M5 X 0.8 (10.000 per pack) 12
33 UPPER STORAGE ACCESS COVER 1
34 COVER LATCH 1
40 WINDSHIELD 235 X BCX 1
40 WINDSHIELD 345 Adrenaline 1
42 RH AIR DEFLECTOR CONSOLE 1
42 LH AIR DEFLECTOR CONSOLE 1
42 RH AIR DEFLECTOR 1
42 LH AIR DEFLECTOR 1
45 CONSOLE SUPPORT 1
49 SHORT WINDSHIELD SUPPORT 1
49 SUPPORT 1
49 SUPPORT *SUPPORT Package Blizzard 1
52 HEADLIGHT TRIM CAP Black 1
53 PHARE *HEADLAMP 1
54 CAP 2
55 HOLDER BRACKET 2
56 DEEP BLACK RH CONSOLE 1
57 Halogen Bulb, 60/55 W, 12 V ( H4 ) 2
58 Spring 2
59 RH UPPER PANEL FOAM 1
59 LH UPPER PANEL FOAM 1
59 MOUSSE *FOAM 1
59 MOUSSE *FOAM 1
60 RH CENTER PANEL FOAM 1
60 LH CENTER PANEL FOAM 1
60 MOUSSE *FOAM 1
60 MOUSSE *FOAM 1
61 RH LOWER PANEL FOAM 1
61 LH LOWER PANEL FOAM 1
61 MOUSSE *FOAM 1
61 MOUSSE *FOAM 1
62 RH REAR PANEL FOAM 1
62 LH REAR PANEL FOAM 1
62 MOUSSE *FOAM 1
62 MOUSSE *FOAM 1
64 RH REAR HOOD FOAM 1
64 LH REAR HOOD FOAM 1
65 TRUNK 1
66 PLAQUE *PLATE 4
67 Torx Screw K50 X 16 4
69 RH HOOD FILLER PLATE 1
69 LH HOOD FILLER PLATE 1
71 RH PANEL VENT GRID 1
71 GRILLE *GRILL 1
72 HEAT SHIELD 2
73 DEEP BLACK SUPPORT CONSOLE CAP 1
74 SUPPORT CONSOLE CAP 1
75 SEAL JOINT 2
83 TORX-TRUSS M/SM5 X 20 (6.000 per pack) 1
84 ENJOLIVEUR *CAP 1
84 ENJOLIVEUR *CAP 1
84 BLACK LH CAP 1
84 BLACK RH CAP 1
86 PANEL LATCH 2
87 RH ARM 1
87 LH ARM 1
88 RH DEFLECTOR 1
88 LH DEFLECTOR 1
90 Torx Truss Screw M6 X 20 2
92 BRIDE *BRIDE 2
94 DEEP BLACK INDICATOR SUPPORT 1
96 DEEP BLACK LH FRONT CONSOLE 1
96 RH FRONT CONSOLE 1
100 LH PANEL CLIP ASS Y 1
100 RH PANEL CLIP ASS Y 1
101 RING 2
103 BUTOIR *BUMPER 1
104 TIGE *PIN Model N 1
108 MOUSSE *FOAM 1
108 MOUSSE *FOAM 1
111 MOUSSE *FOAM 1
111 MOUSSE *FOAM 1
112 MOUSSE *FOAM 1
113 FEUILLE CAOUT. *RUBBER SHEET 1
121 Torx Screw 4
125 PUSH NUT 0
125 Push Nut 6
