SKI-DOO MX Z 1000 SDI Renegade RT MX Z 1000 SDI Renegade RT 07- Front Suspension And Ski

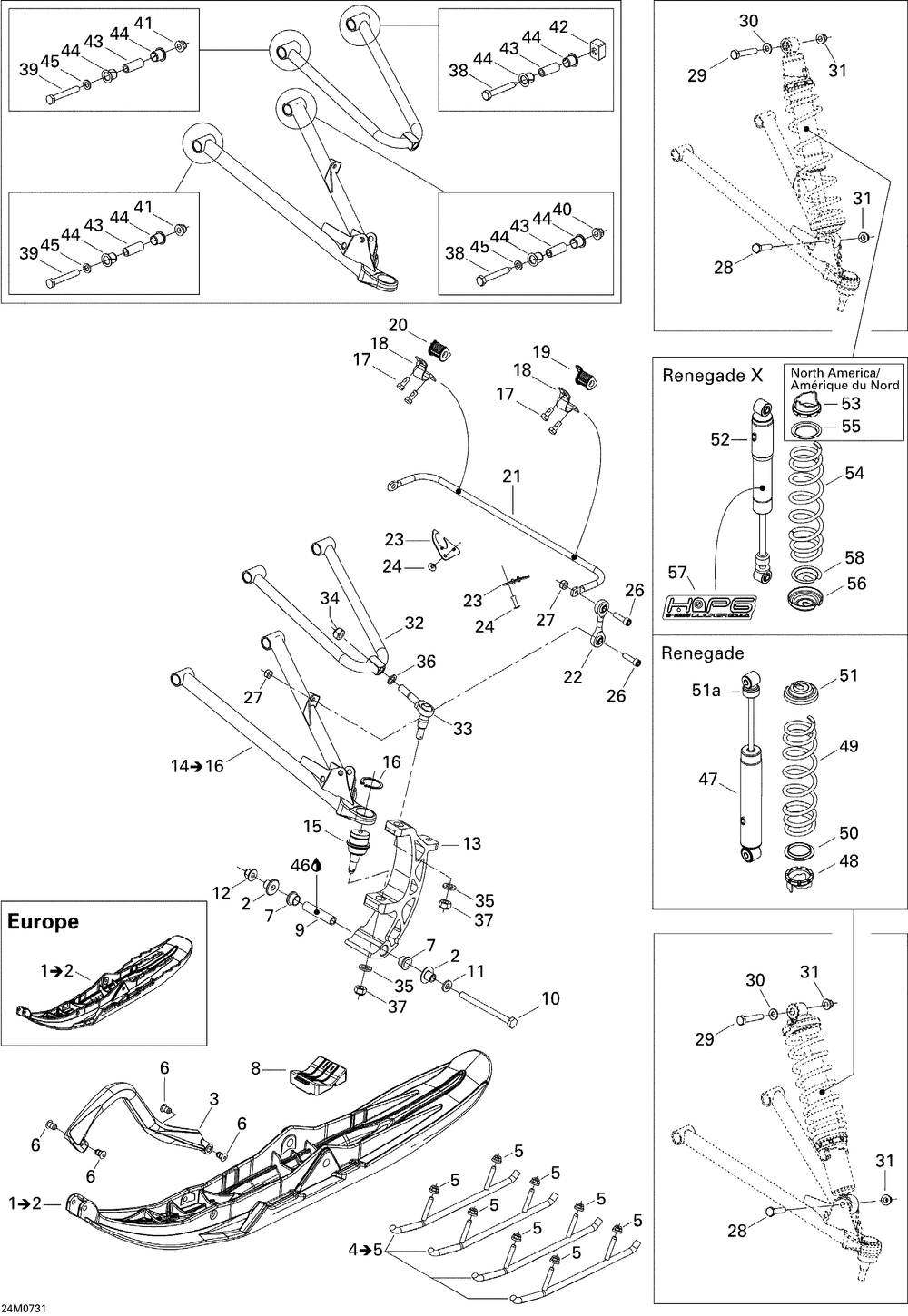

07- Front Suspension And Ski
№ Наименование Примечание Кол-во
1 BLACK LH PILOT SKI Includes 1 to 2 1
1 BLACK RH PILOT SKI Includes 1 to 2 1
2 CUSHION 2
3 YELLOW HANDLE 2
3 BLACK HANDLE Model N 2
4 CARBIDE RUNNER KIT Includes 4 to 5 4
5 Hex. Flanged Elastic Nut M8 8
6 RETAINER (16.000 per pack) 8
7 BUSHING 4
8 SKI STOPPER 2
9 BUSHING (2.000 per pack) 2
10 HEX. SCREW M10 X 130 (5.000 per pack) 2
11 RONDELLE *WASHER (25.000 per pack) 2
12 FLANGED NUT M10 (5.000 per pack) 2
13 SKI LEG 2
14 LH LOWER ARM ASS Y Includes 14 to 16 X (Yellow/Black) 1
14 RH LOWER ARM ASS Y Includes 14 to 16 X (Yellow/Black) 1
14 RH LOWER ARM ASS Y Includes 14 to 16 1
14 LH LOWER ARM ASS Y Includes 14 to 16 1
15 LOWER BALL JOINT 0
16 Circlip 0
17 HEX. SCREW WITH NYLON (10.000 per pack) 4
18 CLAMP (5.000 per pack) 2
19 LH BUSHING 1
20 RH BUSHING 1
21 STABILISATEUR P*STABILISATOR-P 1
22 BALL JOINT 2
23 PLUG 2
24 Black Pop Rivet 3/16" 2
26 SOCKET HEAD SCREW M8 X 30 Tightening Torque 21-22 Nm (10.000 per pack) 4
27 Hex. Elastic Stop Nut M8 4
28 Hex. Screw M10 X 60 2
30 RONDELLE *WASHER (10.000 per pack) 2
31 HEX. FLANGED ELASTIC NUT M10 (10.000 per pack) 4
32 UPPER ARM 2
32 UPPER ARM YELLOW X (Yellow/Black) 2
33 UPPER BALL JOINT 2
34 Hex. Elastic Hex. Nut M12 2
35 FLAT WASHER 12 MM (10.000 per pack) 4
36 RONDELLE *WASHER (25.000 per pack) 2
38 CONE SCREW M10 X 75 (5.000 per pack) 4
39 HEX. SCREW M10 X 75 4
40 HEX. ELASTIC HEX. NUT M10 (5.000 per pack) 2
42 RECTANGULAR NUT 2
43 ALUMINIUM BUSHING (4.000 per pack) 8
44 COUSSINET *BUSHING (20.000 per pack) 16
46 SUSPENSION GREASE 10 X 400 G 0
47 FRONT SHOCK 2
48 ADJUSTMENT CAM 2
49 SPRING RED-SILVER-RED REN 2
50 SPRING GUIDE 2
51 SPRING STOPPER 2
51a CAP 2
52 FRONT SHOCK REN X 2
52 FRONT SHOCK Includes 1 to 7 X Europe 2
54 DEEP BLACK SPRING REN X (Yellow-Black) 2
54 YELLOW SPRING REN X Europe 2
57 HPG DECAL 2
