SKI-DOO Summit X Summit X 10- Electrical Accessories 1 X
10- Electrical Accessories 1 X

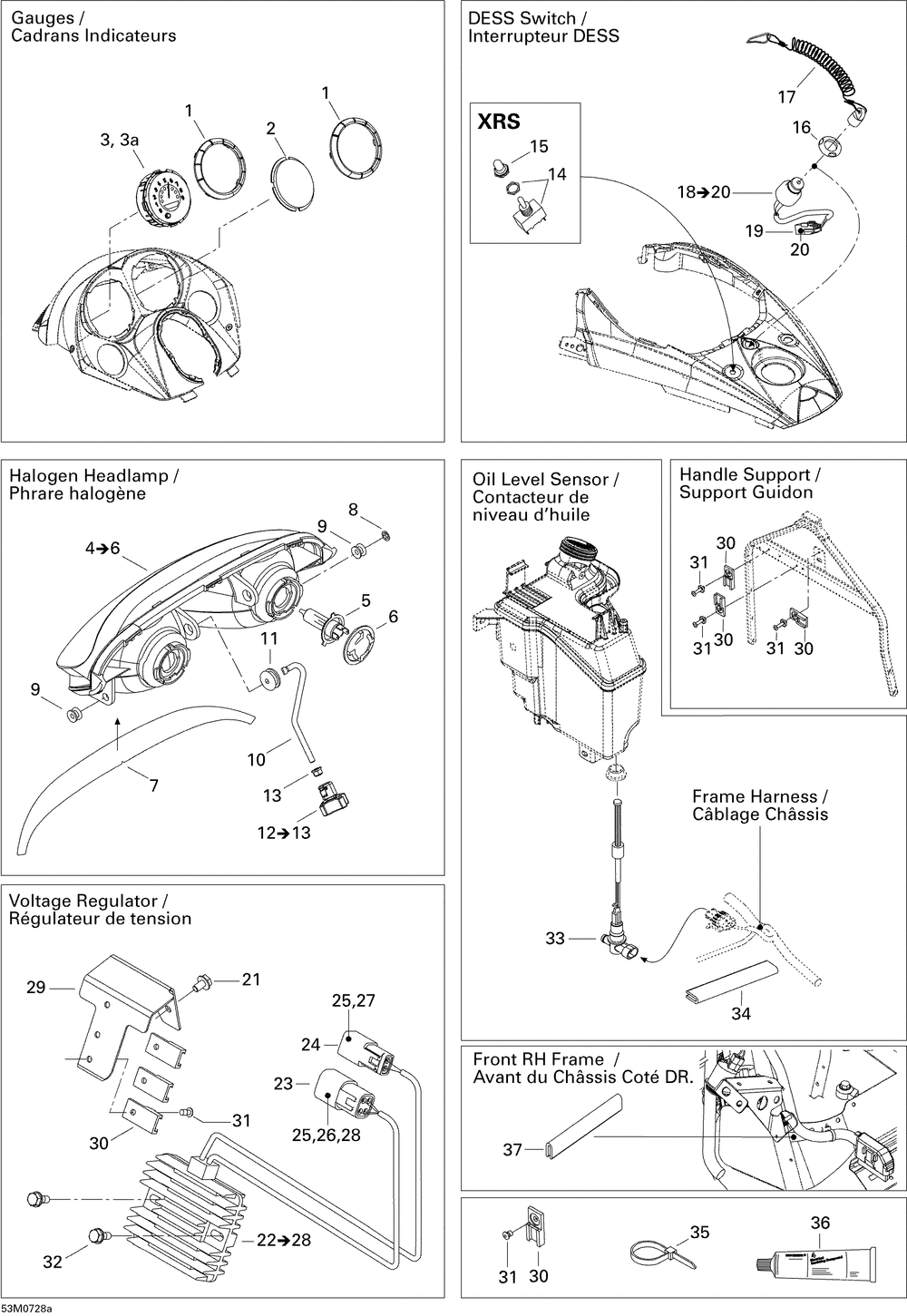

№ Наименование Примечание Кол-во
1 GAUGE RING 2
2 GAUGE HOLE COVER 1
3 TACHOMETER/SPEEDO GAUGE 1
3a LENS 1
4 HALOGEN HEADLAMP ASS Y Includes 4 to 6 1
5 Halogen Bulb, 60/55 W, 12 V ( H4 ) 2
6 BULB HOLDER 2
7 HEADLAMP DECAL 1
8 Push Nut 1
9 HEADLAMP BUSHING (5.000 per pack) 2
10 ADJUSTER ROD 1
11 GROMMET 1
12 MANETTE *HANDLE Includes 12 to 13 1
13 Hex. Flanged Elastic Nut M6 1
16 SAFETY NUT 1
17 DESS CAP 1
18 DESS SWITCH Includes 25 to 27 1
19 MALE TERMINAL (10.000 per pack) 3
20 MALE HOUSING 3 CIRCUITS (5.000 per pack) 1
21 HEX. FLANGED SCREW M6 X 10 (10.000 per pack) 1
22 VOLTAGE REGULATOR Includes 29 to 35 1
23 BLOC 4 CIRC.FEM*HOUSING-TAB 1
24 MÂLE TERMINAL HOUSING 2 CIRCUITS 1
25 MALE TERMINAL 5
26 CALE 4 CIRC.MAL*WEDGE-4 WAYS M 1
27 MALE LOCK 2 CIRCUITS 1
28 Sealing Cap 1
29 HOUSING SUPPORT 1
30 CLIP 8
31 AVDEL RIVET 3/16" (10.000 per pack) 8
32 HEX. FORMING SCREW M6 X 20 (10.000 per pack) 2
33 OIL LEVEL SENSOR 1
34 TRIM 1
35 Tie-Rap 350 mm 0
36 DIELECTRIC GREASE 150 G 0
37 PROTECTION TRIM 0
