SKI-DOO MX Z 800 HO Adrenaline & X MX Z 800 HO Adrenaline & X 05- Pulley System 800 H.O.

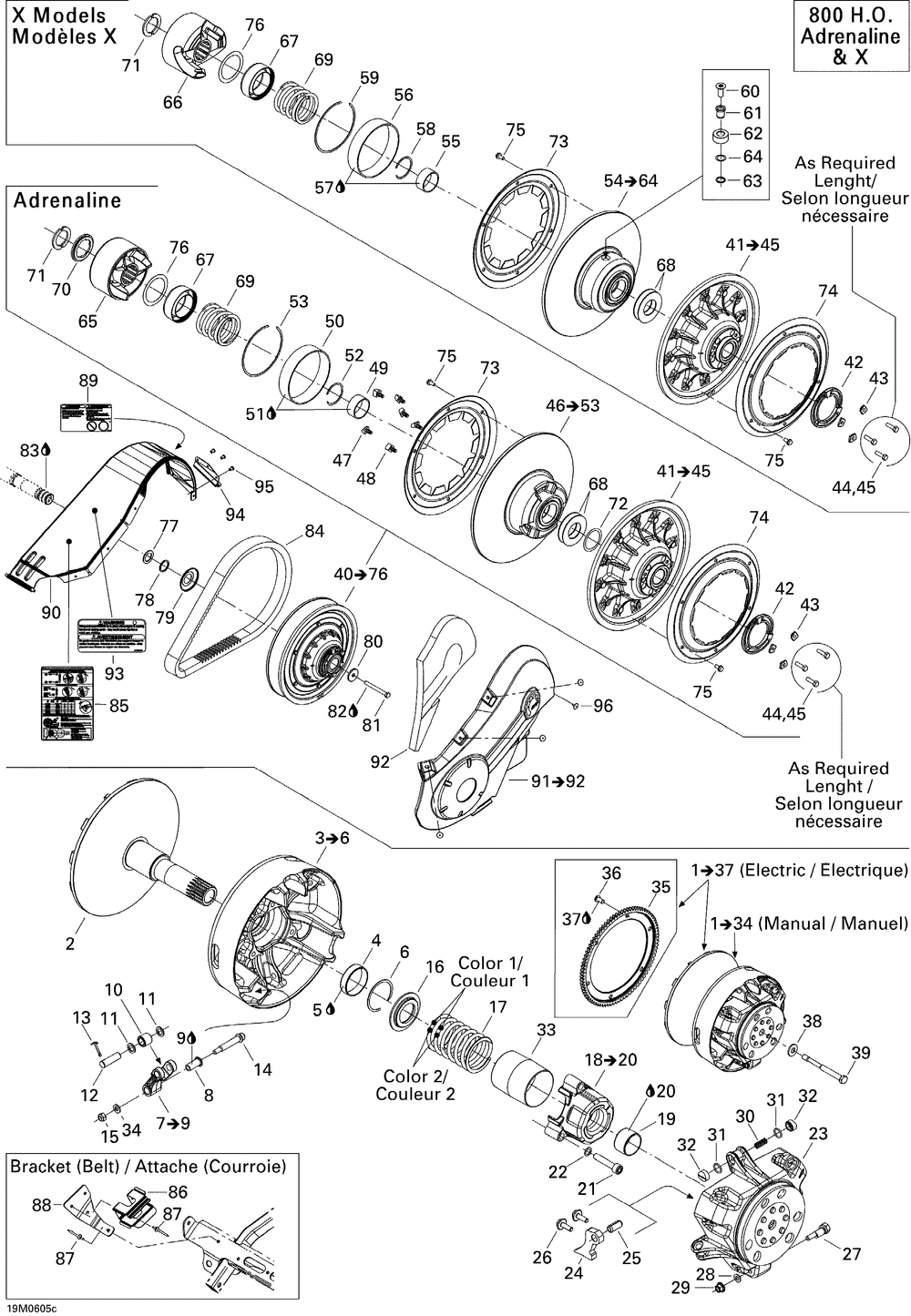

05- Pulley System 800 H.O.
№ Наименование Примечание Кол-во
2 FLASQUE FIXE AS*FLANGE-FIXE ASS. 1
3 FLASQUE COUL.AS*FLANGE-SLID KIT Includes 3 to 6 1
4 BUSHING 1
5 LOCTITE 609 10 ML 0
6 CIRCLIP 1
7 LEVER 3
10 ROLLER (3.000 per pack) 3
11 STOPPER WASHER (6.000 per pack) 6
12 GOUPILLE *PIN (3.000 per pack) 3
13 COTTER PIN (3.000 per pack) 3
14 SCREW ASS Y (3.000 per pack) 3
15 Elastic Stop Nut M6 3
16 SPRING SEAT 1
17 SPRING VIOLET/GREEN North America 1
18 SPRING COVER ASS Y 1
19 BUSHING 1
21 SOCKET HEAD SCREW M8 X 40 Model-SE (5.000 per pack) 3
22 Lock Washer 8 mm 3
23 HEX. FLANGED ELASTIC NUT M6 (10.000 per pack) 1
24 RAMP 414 Package-Enduro (3.000 per pack) 3
25 SPRING PIN M10 X 22 (3.000 per pack) 3
26 FLANGED HEX. SCREW M6 X 18 SCOTCH GRIP (6.000 per pack) 6
27 CALIBRATION SCREW 3
28 RONDELLE *WASHER (6.000 per pack) 3
29 Hex. Flanged Nut M6 3
30 SPRING (6.000 per pack) 3
31 O-RING (6.000 per pack) 6
32 SLIDER SHOE (6.000 per pack) 6
33 GUARD 1
34 FLAT WASHER 6 MM (10.000 per pack) 3
35 RING GEAR 1
36 HEX. SCREW M8 X 16 (10.000 per pack) 6
37 LOCTITE 271 10 ML 0
38 SPRING WASHER 14 MM (10.000 per pack) 1
39 DRIVE PULLEY BOLT 1
41 FIXED FLANGE ASS Y Includes 40 to 44 1
42 ADJUSTMENT RING 1
43 ADJUSTMENT SHIM 3
44 HEX. SCREW M6 X 25 (10.000 per pack) 3
45 HEX. SCREW M6 X 22 3
46 SLIDING FLANGE ASS Y Includes 45 to 52 1
47 REAR CAM SLIDER SHOE RED (10.000 per pack) 3
48 FRONT CAM SLIDER SHOE BLACK (10.000 per pack) 3
49 COUSSINET *COUSSINET 1
50 COUSSINET *COUSSINET 1
51 LOCTITE BLACK MAX 3 ML 0
52 CIRCLIP (5.000 per pack) 1
53 CIRCLIP 1
54 SLIDDING FLANGE ASS Y 1
60 TORX SCREW M8 X 20 SCOTCH GRIP 3
61 PIVOT *STUD 3
62 ROLLER (3.000 per pack) 3
63 V-CIRCLIP (3.000 per pack) 3
64 RONDELLE *WASHER 1
65 CAM ASStahos_Y 1
67 GUARD 1
68 STOPPER WASHER 2
69 SPRING GREEN 1
70 SPACER 1
71 HALF KEY 2
72 SHIM (10.000 per pack) 1
73 COVER 1
74 AERODYNAMIC COVER 1
75 HEX. FLANGED SCREW M5 X 11 (10.000 per pack) 12
76 SWIVEL ABUTMENT 1
77 SPACER (Adjustment Part Use If Needed) 0
77 SPACER (Adjustment Part Use If Needed) (5.000 per pack) 0
78 SHIM (Adjustment Part Use If Needed) (5.000 per pack) 0
79 PROTECTOR 1
80 STRENGTH WASHER 1
81 HEX. SCREW M8 X 75 (10.000 per pack) 1
82 LOCTITE 243 10 ML 0
83 LOCTITE 767 ANTISEIZE LUBRICANT 8 OZ 0
84 Ремень приводной 1
85 DECAL SUSPENSION ADJUSTMENT 1
86 ATTACHE *BRACKET 1
87 Pop Rivet 3/16" 3
88 SUPPORT *BRACKET 1
89 EMERGENCY STARTING LABEL 1
90 BELT GUARD 1
91 SIDE PROTECTOR ASS Y 1
92 FOAM 1
93 WARNING DECAL SECURITY BELT GUARD 1
94 BELT GUARD BRACKET 1
95 AVEX RIVET (50.000 per pack) 3
96 Black Pop Rivet 3/16" 4
