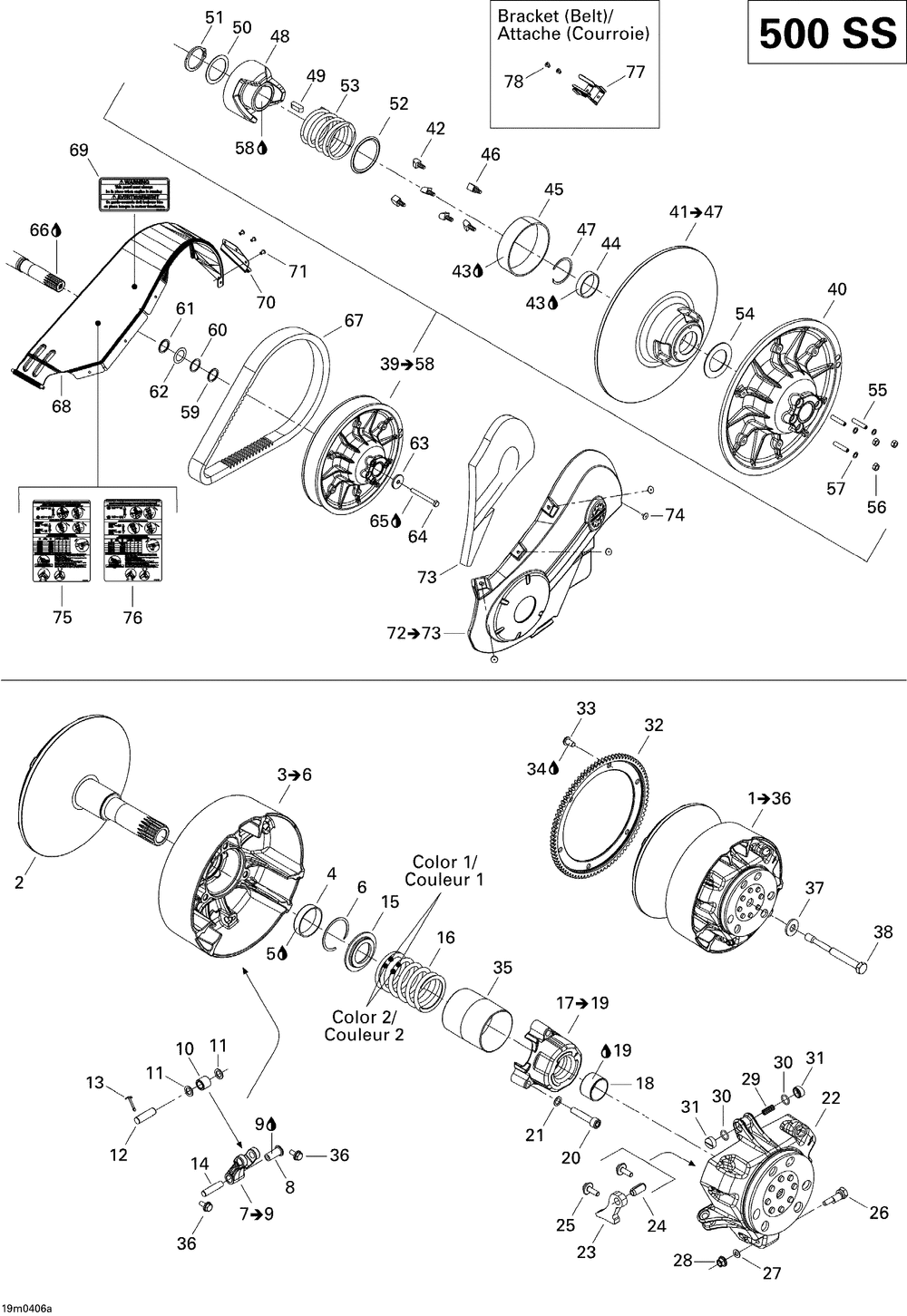

SKI-DOO GSX 500SS GSX 500SS 05- Pulley System (500 Ss)
05- Pulley System (500 Ss)
№ Наименование Примечание Кол-во
2 FIXED FLANGE ASS Y 1
3 SLIDING FLANGE ASS Y 1
4 BUSHING 1
5 LOCTITE 609 10 ML 0
6 CIRCLIP 1
7 LEVER 3
10 ROLLER (3.000 per pack) 3
11 STOPPER WASHER (6.000 per pack) 6
12 GOUPILLE *PIN Europe (3.000 per pack) 3
13 COTTER PIN (3.000 per pack) 3
14 LEVER AXLE (3.000 per pack) 3
15 SPRING SEAT 1
16 SPRING GREEN/WHITE 1
17 SPRING COVER ASS Y 1
18 BUSHING 1
20 SOCKET HEAD SCREW M8 X 40 Model-SE (5.000 per pack) 3
21 Lock Washer 8 mm 3
22 HEX. FLANGED ELASTIC NUT M6 (10.000 per pack) 1
23 RAMP 412 (3.000 per pack) 3
24 SPRING PIN M10 X 22 (3.000 per pack) 3
25 FLANGED HEX. SCREW M6 X 18 SCOTCH GRIP (6.000 per pack) 6
26 CALIBRATION SCREW 3
27 RONDELLE *WASHER (6.000 per pack) 3
28 Hex. Flanged Nut M6 3
29 SPRING (6.000 per pack) 3
30 O-RING (6.000 per pack) 6
31 SLIDER SHOE (6.000 per pack) 6
32 HEX. SCREW M8 X 16 (10.000 per pack) 1
34 LOCTITE 271 10 ML 0
35 GUARD 1
36 FLANGED HEX. SCREW M6 X 12 SCOTCH GRIP (6.000 per pack) 6
37 SPRING WASHER 14 MM (10.000 per pack) 1
38 DRIVE PULLEY BOLT 1
40 FIXED FLANGE 1
41 SLIDING FLANGE ASS Y Includes 41 to 47 1
42 SLIDER SHOE FRONT (3.000 per pack) 3
45 COUSSINET DP *CUSHION-DP 1
46 SLIDER SHOE REAR (3.000 per pack) 3
47 CIRCLIP (5.000 per pack) 1
48 CAM 1
49 CLAVETTE *KEY (5.000 per pack) 1
50 RONDELLE *WASHER 1
51 CIRCLIP (5.000 per pack) 1
52 BUTEE PIVOTANTE*SWIVEL-ABUTMENT 1
53 SPRING GREEN/GREEN 1
54 THRUST WASHER 1
55 SOCKET SET SCREW M6 X 30 (5.000 per pack) 3
56 Hex. Nut M6 3
57 RONDELLE *WASHER (10.000 per pack) 3
58 LOCTITE 767 ANTISEIZE LUBRICANT 8 OZ 0
59 SPACER 3
60 SPACER (5.000 per pack) 1
61 SPACER 1
62 SHIM (Adjustment Part Use If Needed) (5.000 per pack) 3
63 STRENGTH WASHER 1
64 HEX. SCREW M8 X 75 (10.000 per pack) 1
65 LOCTITE 243 10 ML 0
67 Ремень приводной 1
68 BELT GUARD 1
69 WARNING DECAL SECURITY BELT GUARD 1
70 BELT GUARD BRACKET 1
71 Pop Rivet 3/16" 3
72 SIDE PROTECTOR ASS Y Includes 49 to 50 1
73 FOAM 1
74 Black Pop Rivet 3/16" 4
75 DECAL SUSPENSION ADJUSTMENT 1
77 ATTACHE *BRACKET 1
